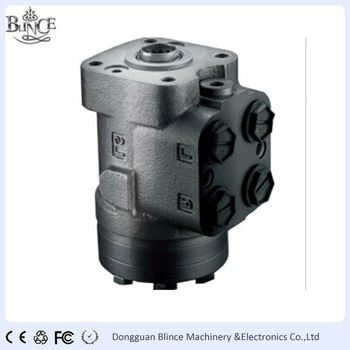

boat steering system 101s series orbitrol
SCU 101s-1,2,4 series inherits the steering function of 101 series both in structure and principle. The feature of 101s series is to have the following valve functions incorporated inside one housing as follows: the relief valve, the shock valve, the suction valve and the check valve according to the different requirement upon the base of the101 series. This kind of structure is more compact, more convenient in operation.
The advantages of the 101s series hydraulic steering control units:
1.Low cost, reliable.
2,The steering unit can control the steering cylinder with bigger resistance force by inputting minor force;
3,The integral check valve can prevent the system pressure oil from anti-vibration , and prevent from "hit-hand" during the steering operation;
4,Integral pressure control valve can control the operation pressure and the shock pressure of the steering system.
| Parameters | Type 101s-*-***-* |
| Function Code | 1.2.4 | 1.4 |
| Displacement(mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max. input pressure (MPa) | 16 |
| Max. cont. back pressure (MPa) | 2.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Company profile:
Blince company was founded in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. specializing in the business of hydraulic motor, cycloid motor, vane pump and hydraulic valve. Located in Changan, Dongguan, Guangdong, we enjoy convenient access to major transportation networks. Our company covers an area of 30,000 square meters and has around 361 people staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. With stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order,please contact us. We will do our best to meet your needs .
1, sale packing contians carton or wood case
2, interior packing is high quality film
3, as your requests
For more information about 101s series steering control unit(SCU),pls feel free contact me:
Winnie Tan
Tel or whatspp:+8613558032097
Established in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid m...MoreEstablished in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid motor, vane pump and hydraulic valve. Located in Changan, Dongguan, Guangdong, we enjoy convenient access to major transportation networks. Our company covers an area of 30, 000 square meters and has around 361 people staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. With stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
Blince main product is orbit motor like (OMM/OMP/OMR/OMH/OMT/OMS/OMV), Radial Piston Motor(NHM 1/2/3/6/8/11/16/31), hydraulic pump (PV2R series, V/VQ series, SQP series) valve and a set of hydraulic system.
Our product widely application for fishing machinery, agricultural machinery, engineering machinery, mining machinery, industrial machinery, aviation and transport machinery et
Blince hydraulic motor Can perfect replace:
Danfoss: OMM/OMP/OZ/OMR/OK/OMH/OMS/OMT/OMV orbital motor
Eaton: J (129-) series, H(101-) series, S(103-) series, T(158-)series, 2000(104-) series, 6000 series orbit motor
White: MP/RS/MR/RG/HB/CE/RE series hydraulic motor
Parker: TE and TG series hydraulic motor
