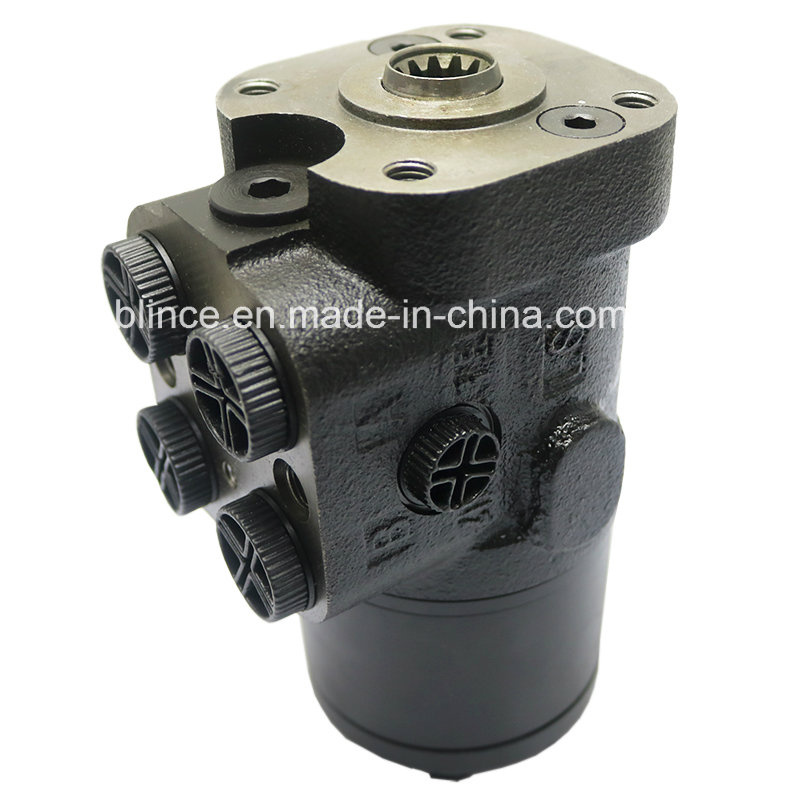

102s-5t-400-17.5-E Steering Control Unit Made in China

Zhenjiang 102s-1,2,4 series hydraulic steering control unit boat steering system
SCU 102s-1,2,4 series hydraulic steering control unit inherit the function of 102 series both in its structure and working
principle.On the basis feature of 102 series SCU, 02s series SCU is to incorporate the relief valve,suction valves and the
inlet check valve inside the housing of SCU according to different requirement. This kind of structure is more compact with easier operation.

Product Name	102s-1,2,4 series steering control unit
Displacement	50/63/80/100/125/160/200/250/280/315/400ml/r
Relief valve pressure setting	06,07,08,10,12,14,15,16,17.5MPa
Max.input pressure	16MPa
Max.cont.back pressure	2.5MPa
Weight	6-8kg
Dimension L(mm)	140-185mm

102s-1,2,4 Series Hydraulic Steering Control Units (SCU) Order Code:

102S---	pos.1--	pos.2--	pos.3---	pos.4--
	function code	displacement ml/r	Integrated valve parameter	ports code
	1.open center non-reaction 2.open center reaction 4.open center non-reaction	50,63,80,100,125,160,200,250,280,315,400	relief valve pressure setting(mpa):06,07,08,10,12,14,15,16,17.5 shock valves pressure settings is 6MPa higher than relief valve	A B C D E U M F I N

Company profile:
   Blince company was founded in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. specializing in the business of hydraulic motor, cycloid motor, vane pump and hydraulic valve. Located in Changan, Dongguan, Guangdong, we enjoy convenient access to major transportation networks. Our company covers an area of 30,000 square meters and has around 361 people staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. With stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order,please contact us. We will do our best to meet your needs .


Packing details:
1, sale packing contians carton or wood case
2, interior packing is high quality film
3, as your requests

 Warranty
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the free easy-damaged spare parts  for problems caused by our quality of production or raw material.
3. After expiration, our company provides cost spare-parts maintenance for engines.
Tips:  Our BLINCE also have the core of hydraulic pumps to sell . If there is a problem with our pump decades later , you can replace it by yourself :)
