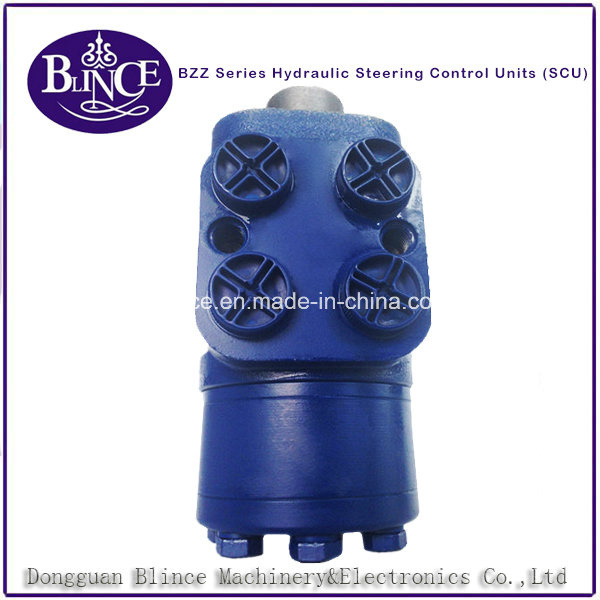

Hydraulic Steering System Hydraulic Steering Control Unit (BZZ1 BZZ2 BZZ3)

BZZ1,BZZ2,BZZ3 Series Hydraulic Steering Control Units (SCU)

BZZ with a series of steering steering load large and small steering torque characteristics, performance better than the other steering for construction machinery vehicles, forklifts and large horsepower tractors, combine harvesters and other low-speed heavy-duty vehicles and hydraulic steering hydraulic sailing ship operation and export deals.

Excellent Product Features:
steering load does not act directly on the steering wheel, comfortable operation;
Low steering torque, the steering wheel can be continuously free steering;
Product specifications, a wide displacement range, from 50 ~ 1250 mlr, able to adapt to a variety of different needs.
The system needs, different functions can be connected to the valve block and pressure levels.

Main specification

Type	Displacement (mL/r)	Flow (L/min)	Max.input  pressure (MPa)	Max. cont. back  pressure (MPa)	Length (mm)
BZZ (1.2.3)-E50 *	50	4	16	2.5	140
BZZ(1.2.3) -E63 *	60	5			141
BZZ(1.2.3) -E80 *	80	6			142.5
BZZ(1.2.3) -E100 *	10	7.5			145
BZZ(1.2.3) -E125 *	125	9.5			148
BZZ (1.2.3)-E160 *	160	12			153
BZZ(1.2.3) -E200 *	200	15			158
BZZ (1.3)-E250 *	250	19			164
BZZ (1.3)-E280 *	280	21			169
BZZ (1.3)-E315 *	315	24			174
BZZ(1.3) -E400 *	400	30			184
BZZ (1.3)-E500 *	500	38			197
BZZ(1.3) -E630 *	630	48			216
BZZ (1.3)-E800 *	800	60			236
BZZ (1.3)-E1000 *	10000	75			262

Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go,and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost,you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.

Company Information:
Established in 2004, Dongguan Blince Machinery & Electronics Co., Ltd.
Specializes in the business of hydraulic motor, cycloid motor, vane pump and hydraulic valve.Located in Changan, Dongguan, Guangdong. Our engineers have decades of experience in hydraulic area, all the products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Copperate with us, you will have the stably, timely and credible supply.

We can supply:
Steering control unit replace Danfoss OSPB OSPC ON/OR.
Hydraulic orbital motor OMM,OMP,OMR,OMSY,OMH,OMT,OMV,replace Danfoss,Eaton and M+S brand.
Radial piston motor 1/2/3/6/8/11/16/31/70 series, can replace staff and Intermot.
Hydraulic vane pumps PV2R,V,VQ,SQP series, and replace pump cartridge kits, they can replace Yuken, Vickers and Tokemic brand.
Oil cooler / heat exchanger OR and DT series


If you don't see the brand or don't know how to choose a model, please contact us and we will help you find the right fit. For more information about BZZ series steering control unit,pls contact me:
