Prod Model: |
Yubase-O |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ventilation: |
Full Downdraft Airflow Way |
Air Intake: |
2*3kw Inner Motor Double-Intake Centrifugal Fan |
Heating: |
1 Unit Riello G20 Diesel Burner |
Voltage: |
1X220V, 3X380V, Your Special Voltages Are Accepted |
Optional Colour: |
White, Blue, Orange and Red |
Port: |
Huangpu Port or by Your Order |
Main Product: |
Spray Booth, Prep Station, Infrared Curing System |
Certification: |
CE |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Type: |
Spray Booth |
Substrate: |
Steel & Aluminum |
Brand: |
Yokistar |
Coating: |
Painting & Powder Coating |
Airflow Direction: |
Full Downdraft Airflow Way |
Product Description

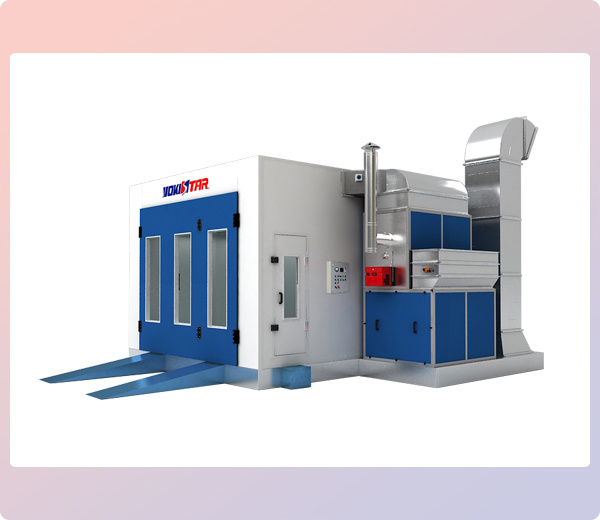

Model:Yubase-O
Inside dimention:6900*3900*2650mm (L*W*H)
Outside dimention:7000*5350*3400mm (L*W*H)
Any Size Requirements Can Be Met
with Better Ventilation and Strong Power
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
Specification of Automotive Spray Booth Yubase-O
Basement |
Floor Arrangement | |
| 2 rows of grilles made of 30x4mm flat bar and 10mm twisted steel, with surface galvanised treatment, |
| loading weight is 600KG/wheel, equipped with floor filter supporting frame. |
| 3 rows of indented plate with surface painted treatment, |
| 2 ramps, each size is 520x2,000mm(WxL). |
Covered Plate | |
| made of bended galvanised steel, 300mm high. |
Supporting Frame | |
| made of galvanised square steel tube with 40x80mm(WxL) size. |
Floor Filter | |
| Fiber glass filter laid on the filter frame,G3 Grade(EN779), type is PA-50, filtering area: 10.35M2. |
| |
Cabin |
Inside Size | |
| 6,900x3,900x2,650mm(LxWxH). |
Outside Size | |
| 7,000x5,350x3,400mm(LxWxH). |
Entrance door | |
| 3-leaf,size is 3,000x2,600mm(WxH), made of bended steel without covered edge,with tempered glass |
| embedded into square frame made of color steel. |
Personnel Door | |
| 1 unit, size is 700x2,000mm(WxH),with tempered glass embedded into square frame made of color steel. |
Wall Panel | |
| 50mm thick and 1,000mm wide,insulation is EPS and covered by 0.326mm thick of color steel inside |
| and outside.Tongue and groove interlock strucutre,two sides covered by steel. |
Roof Panel | |
| Made of 0.6mm thick bended galvanised plate. |
Ceiling Light | |
| Left and right upper position have 5 lighting fixtures, total 10 fixtures. Each fixture is equipped with |
| 4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast. |
Plenum | |
| 450mm high, all spare parts of plenum are made of galvanised bended steel and treated by white |
| powder for long using life. |
Ceiling Filter | |
| Supporting net is made of C shape steel with surface oil painted treatment,sub-high efficiency filter, |
| F5 Grade(EN779),type is SP-600G. |
| |
Makeup Air Units |
Frame Size | |
| 1,700x1,250x2,200mm(LxWxH). |
Cabinet Frame | |
| Made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy. |
Motor and Fan | |
| Motor type: inside of the fan; qty.:2pcs; single motor power:3KW, total power:6KW; |
| Fan type: double intake centrifual fans, YDW-4.5M, total air capacity: 21,000m3/h. |
Makeup Air Control | |
| by Belimo NMU230 10N actuator to control fresh air quantity. |
Pneumatic Actuator | |
| To control the air valve be opened or closed while the working status is spraying or baking. |
Heat Exchanger | |
| 200KW, made of 1.5mm stainless steel 1Gr18Ni9Ti(SUS304), with round type multi-cycle |
| radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M |
| long bended galvanisedsteel chimney and 1 pc of rain shield. |
Burner | |
| Riello G20 diesel burner, heating productivity is 200,000Kcal/H. |
Filtering | |
| Pre-filter, G3 Grade(EN779),type is C16-300 ; |
| Fibre glass filter, G3 Grade(EN779),type is PA-50 . |
| |
Exhaust Air Units |
| without the unit made of motor and fan. The wasted air exhausted by positive pressure. |
| Equipped with 4M straight duct, 1pc 90° elbow duct and 1pc 30 elbow° duct. |
| |
Control System |
| Temperature Controller,Hours,Baking Timer,Pressure Gauge,Power Indicator,Spray Indicator, |
| Bake Indicator, Failure Indicator,Spray Switch,Bake Switch,Left Light Switch,Right Light Switch, |
| Emergency Stop,Start Switch. |
Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
