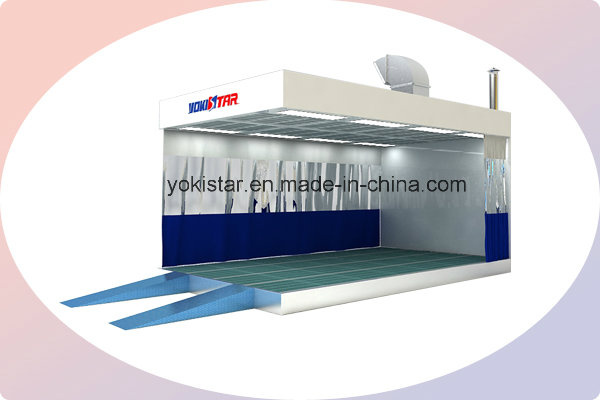

Auto Prep Shop Is a Professional Car Repair Equipment with Handed Actuator

Auto Prep Shop Is a Professional Car Repair Equipment with Handed Actuator
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: YS-PRH-B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ventilation: Full Downdraft Airflow Way
Air Intake: 1*5.5kw Inner Motor Centrifugal Fan
Air Exhaust: 1*5.5kw Inner Motor Centrifugal Fan
Heating: 1 Unit Riello G10 Burner Diesel
Voltage: 1X220V, 3X380V, Your Special Voltages Are Accepted
Optional Colour: White, Blue, Orange and Orange
Port: Huangpu Port or by Your Order
Main Product: Spray Booth, Prep Station, Infrared Curing System
Certification: CE
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New
Type: Spray Booth
Substrate: PVC Curtain and Galvanized Steel Panel
Brand: Yokistar
Coating: Painting & Powder Coating
Airflow Direction: Full Downdraft Airflow Way

Product Description

A.Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle
B.Prep stations speed up the drying process and improve the overall quality of your finished product.
C.Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts.
D.Optional heat units are available for high production needs.

Specification for Prep Station YS-PRH-B

The air draft way
by basement, specfication as below:
Full grilles made of 30x4mm flat bar and 10mm trwisted steel, with surface galvanised treatment,
loading weight is 600KG/wheel.
2 ramps made of indented plate, each size is 2,000x520mm(LxW).
Cabin
Inside Size



6,300x3,450x2,700mm(LxWxH).
Outside Size



7,550x3,550x3,100mm(LxWxH).
4 sides configuration



Rear wall: made of 1.0mm thick galvanised steel, painted with white powder.


Front,Left and Right: PVC curtain, thick is 0.5mm.
Roof Panel



Made of 0.6mm thick bended galvanised plate.
Ceiling Light



Left and right upper position have 4 lighting fixtures, total 8 fixtures. Each fixture is equipped with


4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast.
Plenum



400mm high, all spare parts of plenum are made of galvanised bended steel and treated by white


powder for long using life.
Ceiling Filter



Supporting net is made of C shape steel with surface oil painted treatment,sub-high efficiency filter,


F5 Grade(EN779),type is SP-600G.




Makeup Air Units
Cabinet Size



1,300x1,250x2,000mm(LxWxH).
Cabinet



Made of 50x50mm size galvanised square tube, three way connector made of alluminium alloy.
Filtering



Pre-filter,G3 Grade(EN779),type is C16-300.

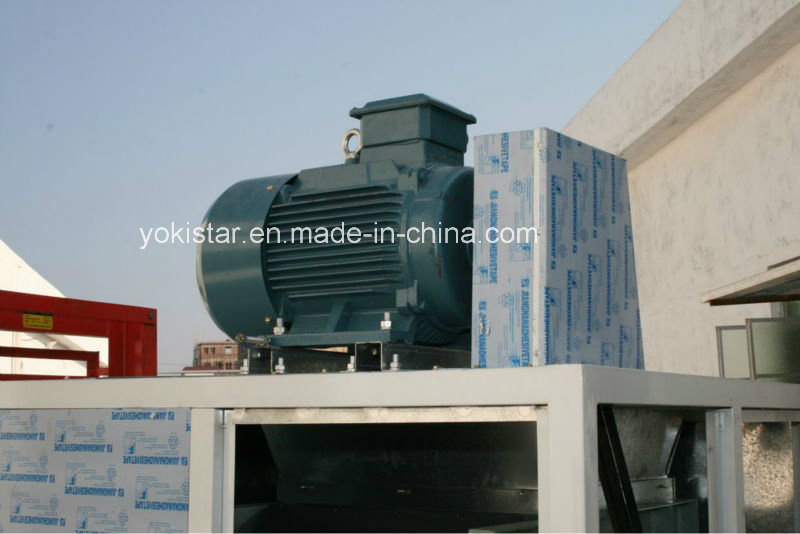

Motor and Fan



Motor type:inside of the fan; qty.:1pc; single motor power:5.5KW, total power:5.5KW.


Fan type: double intake centrifual fans, YDW-4.5S, total air capacity: 15,000m3/h.
Makeup Air Control



Handed actuator to control fresh air quantity.




Exhaust Air Units
Cabinet Size



1,300x1,250x1,100mm(LxWxH).
Cabinet



Made of 50x50mm size galvanised square tube, three way connector made of alluminium alloy.
Filtering



Carbon Filter in "M" Shape Filter Frame.


Fibre glass filter, G3 Grade(EN779),type is PA-50 .
Motor and Fan



Motor type:inside of the fan; qty.:1pc; single motor power:5.5KW, total power:5.5KW.


Fan type: double intake centrifual fans, YDW-4.5S, total air capacity: 15,000m3/h.
Makeup Air Control



Handed Actuator to control fresh air quantity.
Heat Exchanger



180KW, made of 1.5mm stainless steel 1Gr18Ni9Ti(SUS304), with round type multi-cycle


radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M


long bended galvanisedsteel chimney and 1 pc of rain shield.
Burner



Riello G10 diesel burner, heating productivity is 100,000Kcal/H.
Exhaust Air Duct



Equipped with 4M straight duct, 2pcs 90° elbow duct and 1pc 30° elbow duct.




Control System


Temperature Controller,Hours Meter,Power Indicator,Normal Temperature Polishing Indicator,


Rising Temperature Polishing Indicator,Burner Failure Indicator,Power Switch,Polishing Switch,


Left Light,Right Light,Emergency Stop.




OVERVIEW
A. YOKISTAR Prep Stations are designed for the preparation of vehicles without moving. Many tasks, including sanding, priming, painting and sealing, all can be completed in the same area by YOKISTAR Prep Stations.
B. Multiple length, width and height options are available in YOKISTAR Prep Stations to accommodate various custom requirements.
C. Your every specific finishing requirement, including filtration, lighting, temperature and air flow, will be taken into consideration in YOKISTAR Prep Stations.


INTAKE AND EXHAUST SYSTEM FEATURES
5.5kw exhausting inner motor centrifugal fan and 5.5kw intaking inner motor centrifugal fan is applied in YOKISTAR Prep Stations, providing a quiet and highly productive working environment.



LIGHTING FEATURES
Ample lighting can be reached by PHILIPS fluorescent tubes in the roof or the walls of YOKISTAR Prep Stations behind tempered safety glass, and have optional external access for easy maintenance.
Lighting box is made by powder coated color steel, with electric ballast.


RIELLO burner



Optional
Cupboards in the rear of YOKISTAR Prep Stations to store painting materials and equipments
Roll-Up Curtains(motorized controls/manual operation)
Other features
Overspray and dust control by 95% filter efficiency
PHILIPS lamps, BELIMO damper and RIELLO burner
Main electric components are CE listed
All hardware, fasteners, sealants
24 months warranty
Delivery time of standard prep station can reach 10 business days
Bubble film packaging for sea transportation in bulk, special steel tray packages are accepted


Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.


Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.

Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).

As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.

The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.

YOKISTAR is an ideal cooperator who deserves your reliance.
