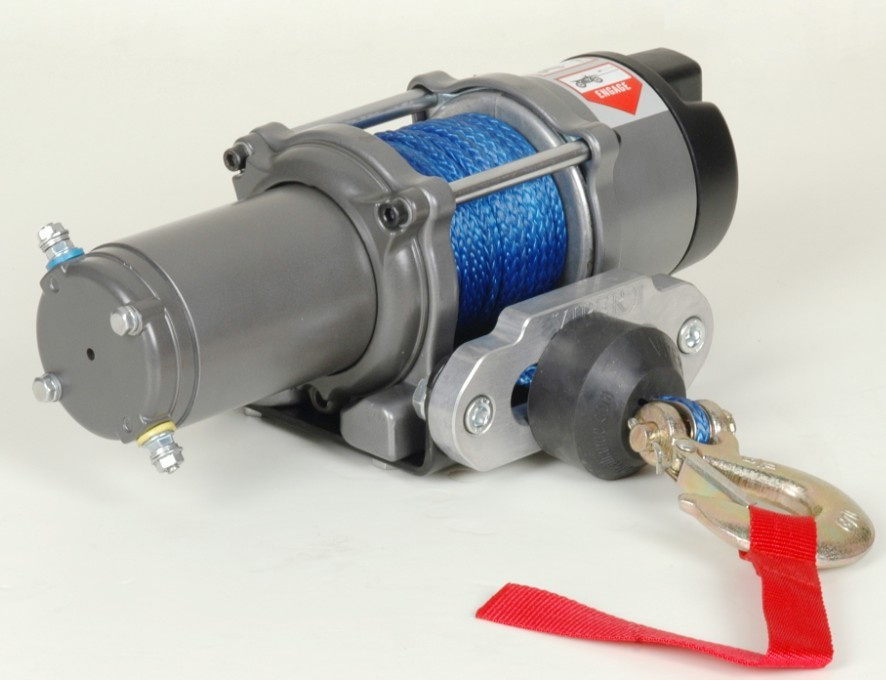

ATV Electric Winch with 3000lb Pulling Capacity (New Developed)

Name: ATV Electric Winch with 3000lb Pulling Capacity (New Developed)
Brand: ibuyautoparts.com
SKU: 712352905
Availability: InStock
Rating: 4.7 (51 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Specifications:
All Metal Drivetrain.
Sealed Drivetrain & Motor. Twelve sealed areas protect the winch from water and
Contaminant infiltration.
1) Rated Line Pull: 3000lbs. (1, 361kgs. ) single-line
2) Motor: 12V DC, 1.2HP (0.9kw) permanent magnet, sealed
3) Control: Mini-rock Switch and Romote Control, 12ft. (3.7m) lead
4) Geartrain: Sealed, all metal 3-Stage Planetary
5) Gear Ratio: 136: 1
6) Clutch(freespooling): Sliding pin and ring gear
7) Brake: Automatic mechanical brake
8) Drum Diameter/Length: 2.0"/2.9" (51mm/75mm)
9) Synthetic Rope: 40', 5.5mm diameter(12.25m, 5.5mm diam)
10) Cable Management: Aluminum hawse fairlead
11) Recommended Battery: 500 CCA minimum
12) Battery Leads: Color coded wiring
13) Duty Cycle: Intermittent
14) Mounting Bolt Pattern: 76 X 124mm
15) Finish: Black or grey

PERFORMANCE DATA
Line Pull Lbs.(Kgs.)	Line Speed FT. / min (M/min.)	Motor Current	Pull by Layer layer / Lbs (Kgs.)
0	25 (7.6)	18	1 / 3000 (1361)
500 (227)	20 (6.1)	51	2 / 2640 (1198)
1000 (455)	17 (5.2)	88	3 / 2032 (1052)
1500 (680)	14 (4.3)	125	4 / 2040 (925)
2000 (907)	11 (3.3)	165
2500 (1134)	9 (2.7)	204
3000 (1361)	7 (2.1)	240

Prod Model:	GXR3.0
Markets:	North America,South America,Eastern Europe,Mid East,Eastern Asia
Clutch(Freespooling):	Short Distance
Certification:	CE
Type:	Electric Winch

Company Profile:

The company designs, manufactures and markets a full line of ATV winch and accessories that enhance the performance of Winches. The company's mainly markets electric winches and hoists to commercial, inudustrial and severe duty customers. We also has A Line of utility winches and hoists that are designed for professional trade workers and do-it-yourself consumers who need powerful tools to assist them in pulling, hauling, dragging or lifting. We focuses on three specific markets - Consumer Aftermarket, Industrial/Commercial, and Original Equipment. With more customers in oversea, We are the one of the china's most recognized brands in winch market.

Manufacturing, Research & Development:

We operates over 3000sq. Manufacturing facilities in 2006 China. We holds quality certifications for ISO/TS 16949: 2009, and continues a new product innovation.

Products:

We manufactures 50+ products for Automotive, Industrial users. From self ATV winches and industrial hoists systems to customers thatdu have chosen our products for their durability, reliability and dependability.

Sales & Service:

Our products are distributed primarily through distributors and OEM's. Our products export for to U. S. A., Canada, Germany, British, France, Australia, and other countries. It comprising of elite retail outlets that provide consumers with the highest level of product and service
