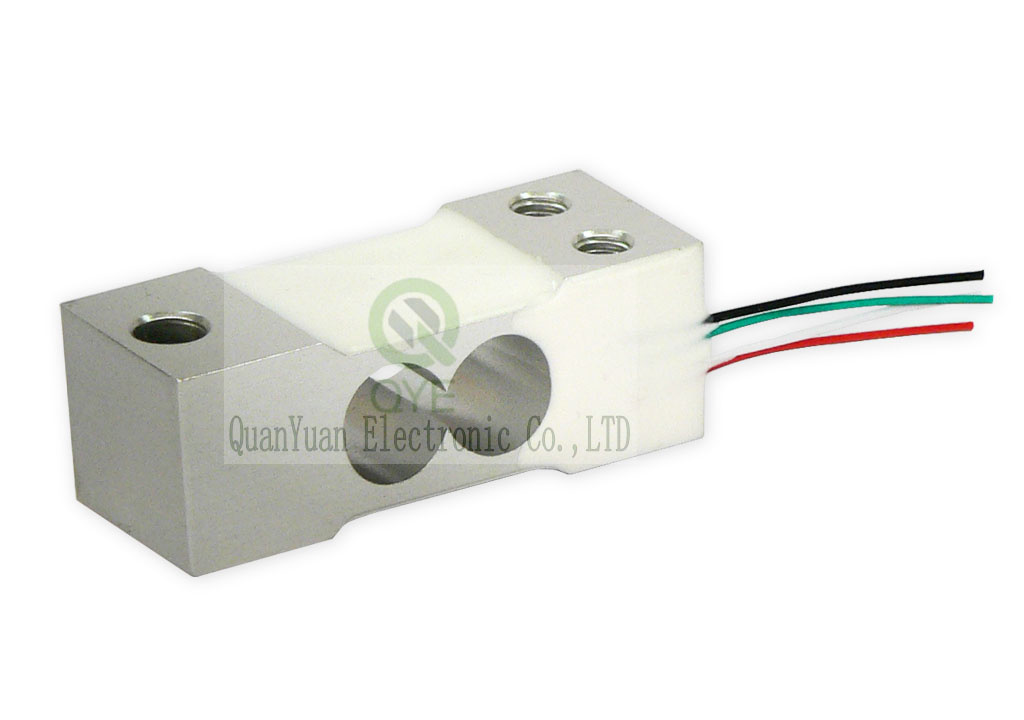

QL-12G load cells are available in the capacities from 5kg to 100kg.
Alloy aluminum construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic counting scales, platform scales,electronic balance and other electronic weighing devices.
Features:
Capacity:5kg to 100kg
Defend grade:IP65
High accuracy.
Alloy aluminum parallel beam
Max. platform size:200x200mm
Integral structure,reliable performance,and easy installation
Electrical connection and Dimensions:(mm)
| Specifications: |
| capacity | kg | 5,20,50,100 |
| safe overload | %FS | 120 |
| ultimate overload | %FS | 150 |
| rated output | mV/V | 2.0 ± 0.2 |
| excitation voltage | Vdc | 9 ~ 12 |
| combined error | %FS | ± 0.02 |
| zero unbalance | %FS | ± 2 |
| non-linearity | %FS | ± 0.02 |
| hysteresis | %FS | ± 0.02 |
| repeatability | %FS | ± 0.01 |
| creep | %FS/30min | ± 0.02 |
| input resistance | Ω | 406 ± 10 |
| output resistance | Ω | 350 ± 3 |
| insulation resistance | M Ω | ≥ 5000 @ 50 Vdc |
| operating temperature range | ºC | -20 ~ +60 |
| compensated temperature range | ºC | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10ºC | ± 0.02 |
| temperature coefficient of ZERO | %FS/10ºC | ± 0.03 |
Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:1 m
Cable diameter :0.8 ±0.2 mm
The cable length could be chose by customer's application.
Packaging & Shipping
Packaging: The standard package in carton box outside, plastic for each inner side.
Delivery: For sample, suggest By UPS/DHL/TNT/EMS or by Air/ Sea as per Qty or as your resquest.
For mass, our cheapest agent or depend on your request.
Our Services:
Providing the technique service after deal.
