Quick Details
Place of Origin: Shaanxi, China (Mainland)
Brand Name: Quan Yuan
Model Number: QL-52D
Usage: electronic weighing sensor
output: analog sensor
theory: resistance sensor
capacity: 0.3kg--6kg
defend grade: IP 65
material: alloy aluminum
type: miniature load cell
Packaging & Delivery
| Packaging Details: | Standard exporting inner box outer carton |
|---|
| Delivery Detail: | 7 days from stock. In case of no stock, need 25 days. |
|---|

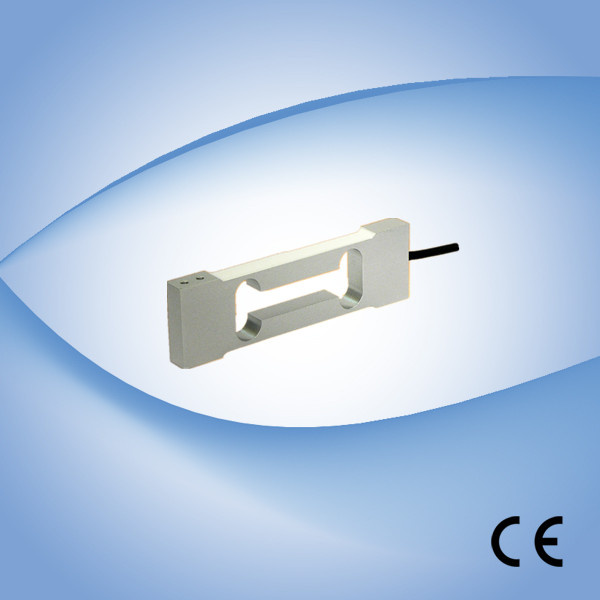

QL-52D small capacity weighing scale load cells are available in the capacities from 0.3kg to 6kg.
Aluminum alloy construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic balance, electronic platform scale and other electronic weighing devices.
Features:
Capacity: 0.3kg to 6kg.
High accuracy.
Aluminum alloy parallel beamparallel beam.
Max. Platform size: 120x120mm.
Integral installation.
The cable length could be chose by customer's application.
Technical Specifications:
| Specifications: |
| Capacity | kg | 0.3,0.5,1,2,3,6 |
| Safe overload | %FS | 120 |
| Ultimate overload | %FS | 150 |
| Rated output | mV/V | 1.0 ± 0.1 |
| Excitation voltage | Vdc | 5~12 |
| Combined error | %FS | ± 0.01 |
| Zero unbalance | %FS | ± 0.1 |
| Non-linearity | %FS | ± 0.05 |
| Hysteresis | %FS | ± 0.03 |
| Repeatability | %FS | ± 0.03 |
| Creep | %FS/30min | ± 0.05 |
| Input resistance | Ω | 350 ± 30 |
| Output resistance | Ω | 350 ± 30 |
| Insulation resistance | M Ω | ≥ 3000 @ 50 Vdc |
| Operating temperature range | ºC | -20~ +55 |
| Compensated temperature range | ºC | -10 ~ +40 |
| Temperature coefficient of SPAN | %FS/10ºC | ± 0.05 |
| Temperature coefficient of ZERO | %FS/10ºC | ± 0.05 |
Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene; shielding wire is not connected with elastomer.
Cable length:250 mm ± 20 mm
Cable diameter :3±0.2 mm
The cable length could be chose by customer's application.
Packaging & Shipping
Packaging: The standard package in carton box outside, plastic for each inner side.
Delivery: For sample, suggest By UPS/DHL/TNT/EMS or by Air/ Sea as per Qty or as your resquest.
For mass, our cheapest agent or depend on your request.
Our Services:
Providing the technique service after deal.
