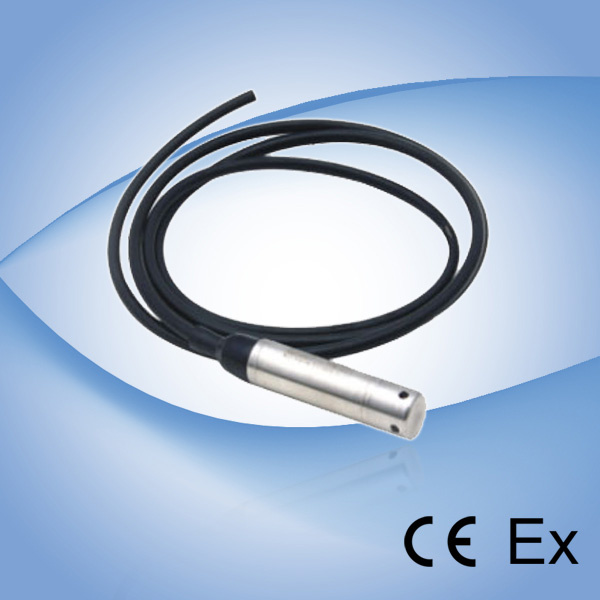

Qst-201 Submersible Water Level Sensor

Name: Qst-201 Submersible Water Level Sensor
Brand: ibuyautoparts.com
SKU: 829813005
Availability: InStock
Rating: 4.5 (71 reviews)

Price:	US $ 52/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

QST-201 series liquid level transmitters are consisting of well-sealed immerging oil-filled liquid level transducers and special circuit for manometers. Have characteristics of high precision, good stability, long life and easy to fix. Adopt special sealed configuration, so with good capability of anti-leakage. According the relation between pressure, density and liquid level, the liquid level transducers measure the liquid pressure which in direct ratio with depth of liquid, then via amplificatory circuit, the measured pressure is transferred to standard 4~20mA current signal(or standard voltage signal).

Feature:

Range:0~0.6 mH2O....0~200 mH2O

Sealed structure: IP68.

Accuracy: 0.1% FS, 0.25% FS (standard)

There is two kinds of connector to be chosen: intracavity or flush membrane type Integrated construction, without external adjustment.

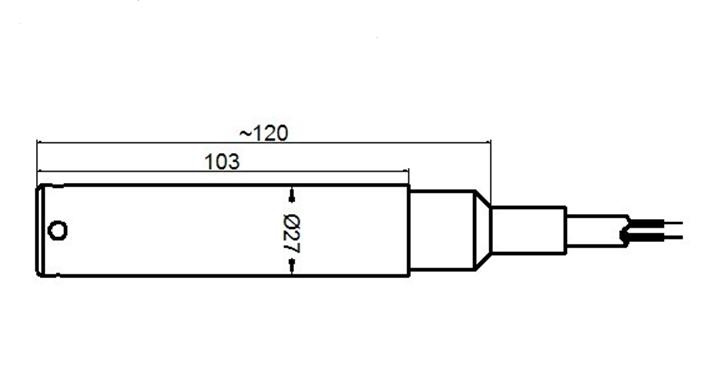

Dimension:

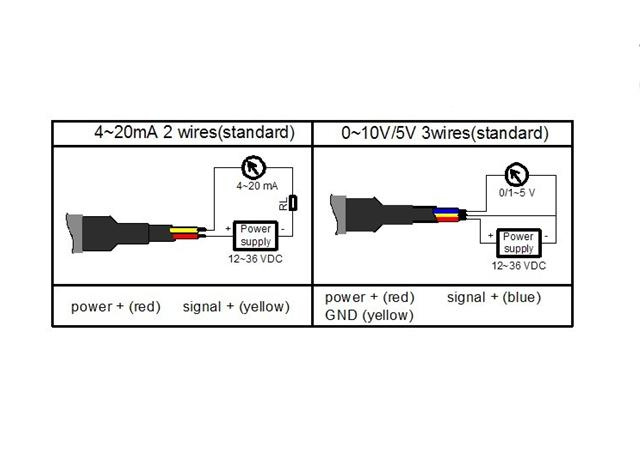

Electrical connection:

Packaging: The standard package in carton box outside, plastic for each inner side.

Delivery: For sample, suggest By UPS/DHL/TNT/EMS or by Air/ Sea as per Qty or as your resquest.

For mass, our cheapest agent or depend on your request.

Prod Model:	QST-201
Pressure Type:	Gauge(G),Absolute(a),Sealed(S)
Signal Output:	4~20mA 0~5V 0~10V

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
