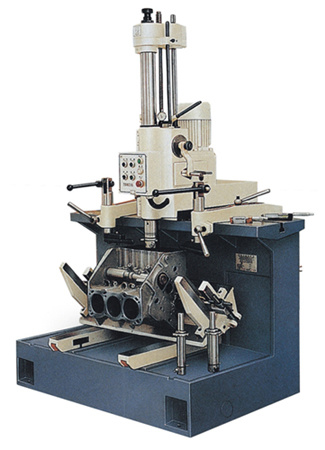

Air-Floating Boring Machine TB8016

Name: Air-Floating Boring Machine TB8016
Brand: ibuyautoparts.com
SKU: 666242345
Availability: InStock
Rating: 4.8 (123 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Showroom Product Company Profile

Features
This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring.
T: Boring cylinder hole

Main specifications
Model T170A T200A T250A
Max. Boring diameter Φ 170 mm Φ 200mm Φ 250 mm
Max. Boring depth 400 mm 500 mm 500 mm
Max. Drilling & reaming diameter Φ 30 mm
Spindle speed 120-860 r/min
Feeding of the spindle 14-900 mm/min
Rapid moving speed of the spindle 1000 mm
Spindle travel 700 mm
Distance between spindle end face and table 0-700 mm

Distance between spindle axis and carriage vertical plane 375 mm
Max longitudinal travel of working table 1500 mm
Max cross travel of the working table 200 mm
Working table size (W× L) 500× 1250 mm 500× 1500 mm
Quantity of "T" Slot 5 qua.
Main motor 5.5 Kw
Boring precision Dimension Precision H7
Boring roughness Ra 2.5
Overall dimensions (L× W× H) 2600× 1630× 2300 mm
Packing dimensions (L× W× H) 2250× 1900× 2280 mm
N. W. /G. W. 3300/3600 kg 3500/3800 kg

Certification:	CE
Type:	Cylinder Grinding Machine
