28mm Embedded Night Vision Rearview Mini Car Camera with IR

Name: 28mm Embedded Night Vision Rearview Mini Car Camera with IR
Brand: ibuyautoparts.com
SKU: 815982135
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 6.5-7.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WMR-256
Size:	28mm
Infared Lamp:	8 PCS
Night Vision:	HD
Interface:	RCA
Definition:	420TVL
Chip:	CMOS
Waterproof Grade:	IP68
Probe Number:	1

Product Description

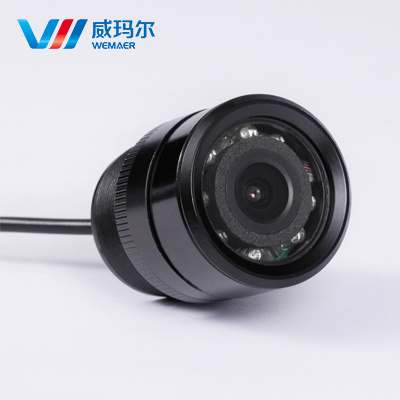

28mm Embedded Night Vision Rearview Mini Car Camera with IR

1.Product Features:
1. Original fitting by replacing the shelf of license light or Universal installation
2. Smart size for hidden installation.
3.1/3"CCD
4. Lens: 170 degrees
5. Waterproof and dust-proof (IP68) CCD camera
6. With car reversing reference line(optional)CCD camera.
7. License light available on partial models.
8. Night vision available and high definition CCD camera.
9. Day /Night sensor for automatic adjustment, minimum illumination auto fill light.

2.Installation Guides:
1. Drill a hole with the holesaw provided near the licence plate at back of car;
2. Fasten the camera on the car;
3. Connect the lens built-in license light power lines to the original license light power lines;
4. Connect the reverse lens switching lines;
5. Connect the camera's signal line to the signal extension line;
6. Connect the car's reverse light line to camera's video cable;
7. Check if all lines are correct connected and arranged;
8. Debug the working effects of the camera and the license light;
9. Cover the car trunk.
Finished.

3.Accessories:
1. General wire and power wire
2. User Manual

Technical Parameters:

Image Sensor 1/3" CCD

NSTC/TV System NTSC/PAL

Sync System internal

Minimum illumination < 1 lux

White balance Auto

IR LEDs No

Video color Colorful

Waterproof class IP68

Effective pixels 580(H)*540(V)

Resolution 420 TV lines

Sensing area 3.5964*2.7084mm

Video output 1.0Vp-p, 75Ω

Electronic shutter 1/60S-1/5000S

S/N ratio Better than 48dB

Lens angle 170 degree

Operation temperature -20° ~+70°

Storage temperature -30° ~+80°

Warranty 12 months

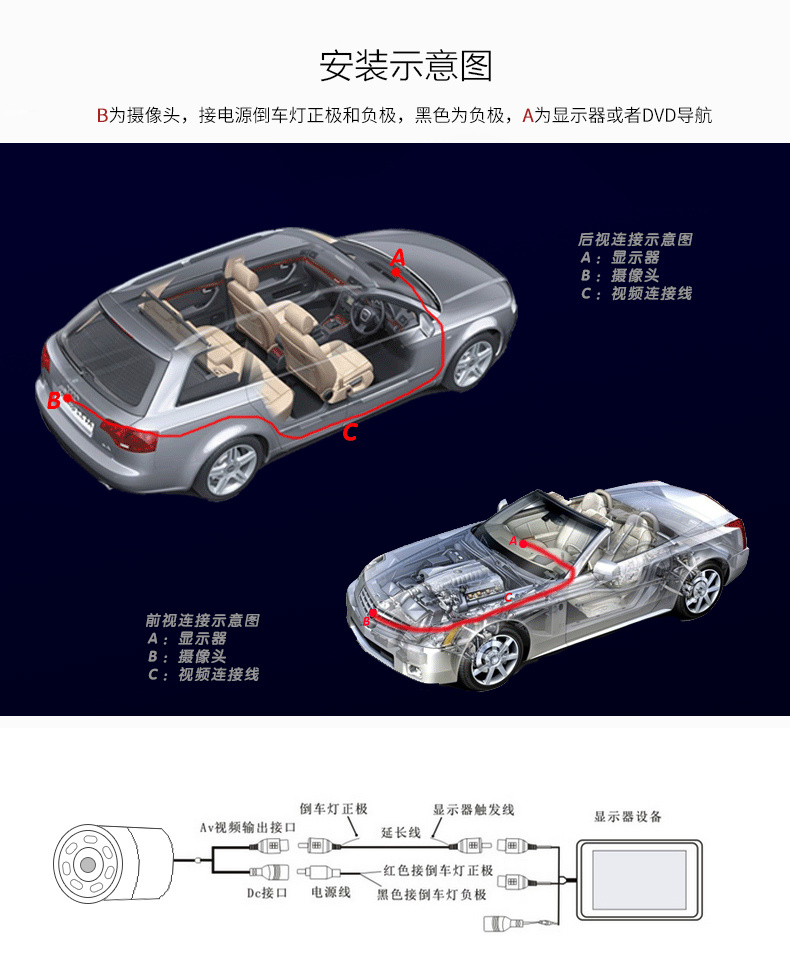

4.Installation
A. DISPLAY
B.CAMERA
