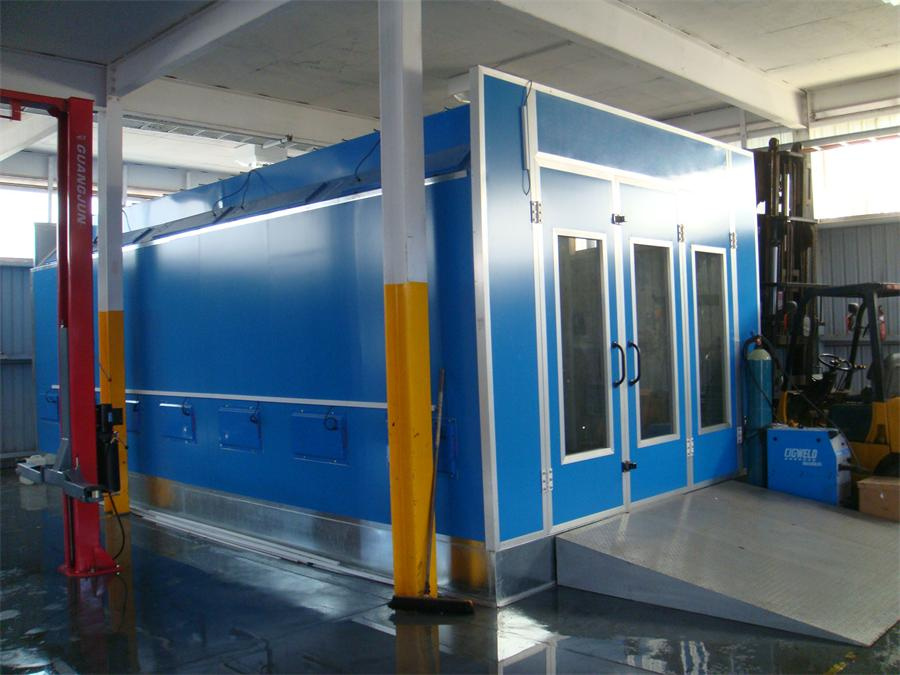

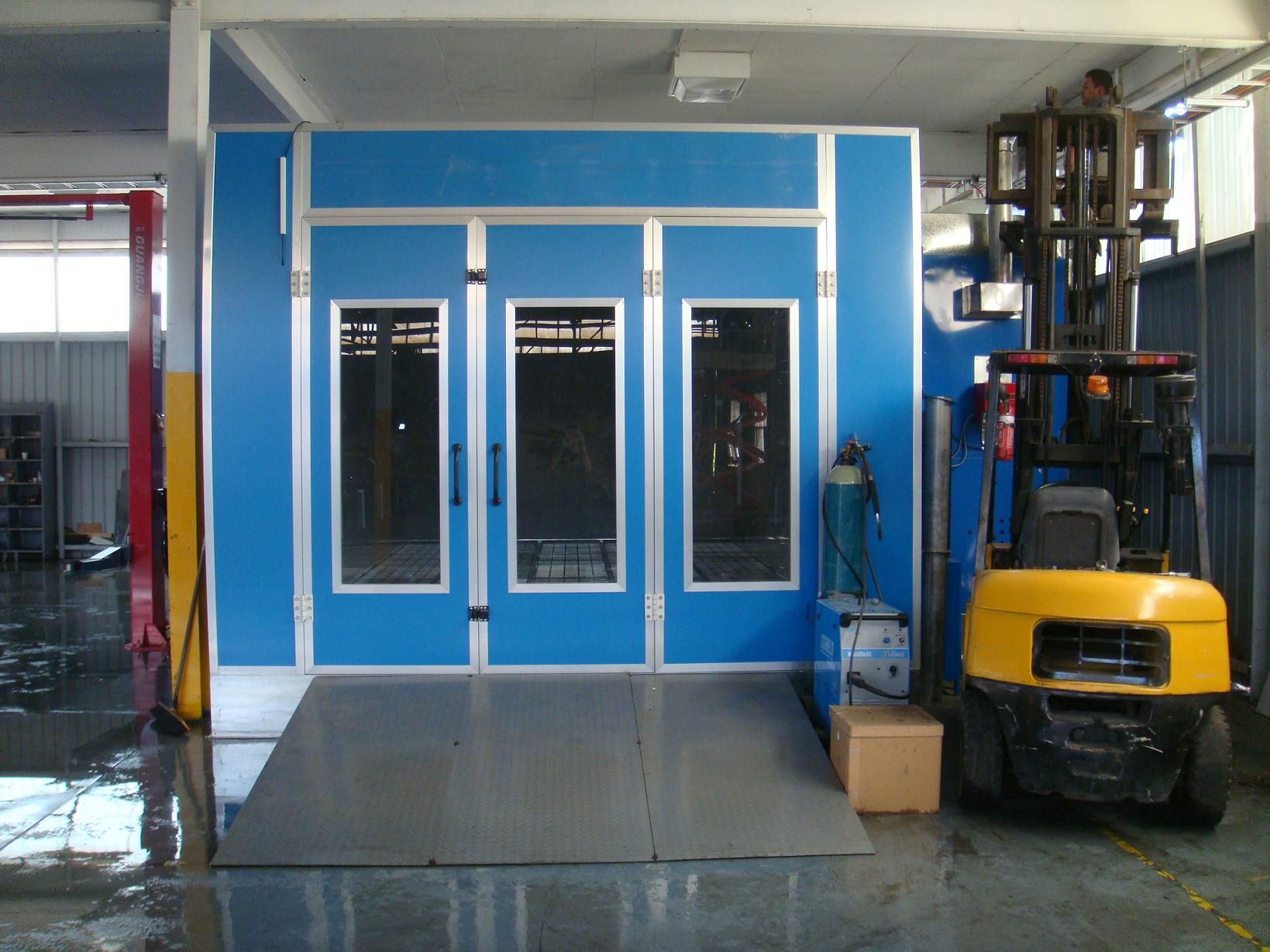

Name: Australia Standard Spray Booth 8*4*2.8
Brand: ibuyautoparts.com
SKU: 776883605
Availability: InStock
Rating: 5 (101 reviews)

Price:	US $ 10000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JZJ-FB-8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standards:	Australia and New Zealand
Dimension:	8 X 4 X 2.8
Heating System:	Diesel Oil or Gas
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Jzj

Product Description

JZJ-FB-8 spray booth is for SUV cars.
JZJ spray booth is one quality supplier, we can guarantee your spray booth with 12 years if you use our spray booth.
Specification:

Outside Dimension (mm)	810654563620(LWH)	Inside Dimension(mm)	800040002800(LWH)
Front Door(mm)	30002600(WH)	Service door (mm)	1800650(WH)
Total Power	25.5KW
Cabin system	Wall panel	50mm Rockwool sandwich panel, steel sheet thickness: 0.6mm
	Ceiling panel	0.8mm Galvanized steel sheet.
	Basement	300mm depth, galvanized full grids basement
	Ramps	three pieces 2000*900mm ramps
	Glass	4mm safety tempered glass
	Windows	Square glass windows.
Air Make-up System	Air Inlet fan system	1*11kw turbo fan
	Exhausted fan system	1*11kw turbo fan
	Ai capacity	30000m³/h
	Air Flowing speed	0.35m/s in empty booth
	Air Control method	One manual damper for air inlet and exhausted system
	Exhausted ducting	8 meters air duct, one flop damper and one weather hood.
Purification System	Pre-filter	G3 grade, Pockets filter
	Ceiling filter	EU5 / F5
	Floor filter	green fiber glass filter / G3 grade
	Exhausted fan Filters	Pocket filter or M green fiber glass filter.
Heating System	Heat Exchanger	SUS304 material, argon arc welding.
	Heating burner:	Riello RG5S diesel oil burner(gas burner for option)
	Heating productivity	260000Kcal/h
	Spray to baking switch	Pneumatic damper
	Chimney ducting	4 meters stainless ducting and one chimney elbow
	Max heating temperature	80ºC
	fuel consumption	6-8Litters /vehicle
Lighting System	Ceiling lights	10 Units, each 4 x 36W Philips lamps, Total 2126 W
	Side lights	10Units, each 2 X 36W Philips lamps. Total 720 W
	Illumination	1000LUX
Controlling system	Switched control panel	Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.

We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.

Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.

Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.

Welcome the customers from China and all over the world to join us!
