| Prod Model: |
ZHZF-HPC518 |
| Certification: |
ISO |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Exhaust Gas Analysis |
Product Description
ntroduction:

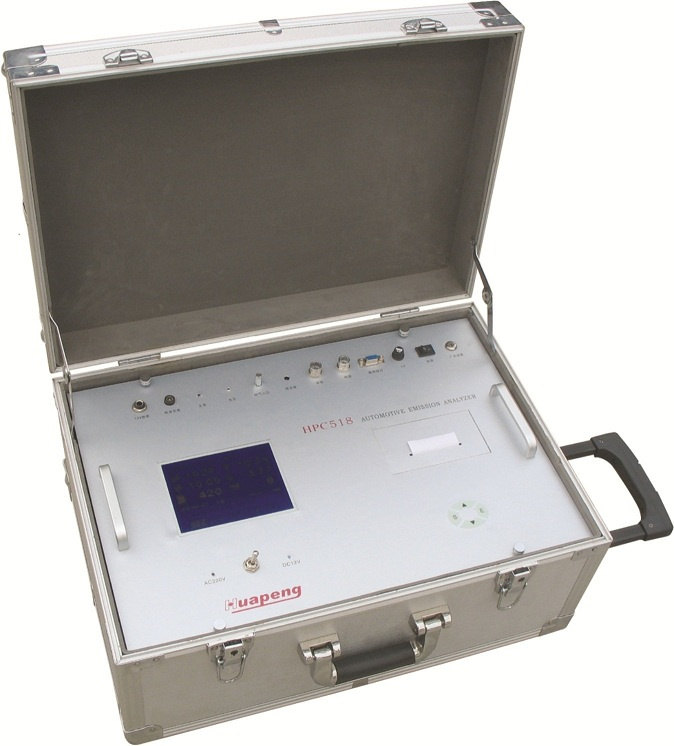

ZHZF-HPC518 is a portable automobile exhaust analyzer the world's first three power can be
supplied directly use. Especially suitable for inspection sampling in environmental monitoring,
public security, traffic departments; inspection department, industrial and mining enterprises
in wild and lonely without power supply can be used. At any time, without any place and
there is no power can detect the advantages. Apparatus for refining aluminium alloy rod box
shell, convenient carrying, simple operation.
Main features:
large-screen LCD display, Chinese menu (or English);
used in Germany imported infrared detector, O2 and NOX sensor, shock resistance, good
stability, high accuracy;
for measuring CO, HC, CO2, O2, NOX concentration and the lambda value, COcor, speed,
oil temperature, flow rate, pressure;
with single, double idle idle, universal measuring function;
measurements to gasoline, LPG, CNG, ethanol and diesel as fuel vehicle;
according to the new national standard and the United States of America BAR97 development
standard, with ISO3930 or OIMLR99 0 grade precision;
with automatic zero adjustment, automatic cleaning, automatic temperature compensation,
pressure compensation;
with HC residual measurement, flow control, gas leak check;machine a self-diagnosis, fault when prompted, until the troubleshooting can continue measurement;with speed, oil temperature measurement, built-in printer or digital (simulation) interface network;
the license plate number input and 2000 groups of data storage, reference function, the clock display;
with 220V charger, car cigarette lighter power supply plug and battery holder;
The built-in rechargeable battery can work continuously for 8 hours.
Main technical parameters:
Measuring range:HC: 0~10000×10-6(ppm)vol,CO: 0~10×10-2(%)vol )
CO2: 0~20×10-2(%)vol, O2: 0~25×10-2(%)vol
NOx: 0~5000×10-6(ppm)vol,
R.M.P: 0~9999r.m.p OIL TEMP:0~150ºC
Lambda: 0.50~3.00 COcor:0~10×10-2(%)vol
Indicating error:HC±10×10-6(ppm)vol ( absolute error ) or±5% ( relative error )
CO±0.03×10-2(%)vol ( absolute error ) or±5% ( relative error )
CO2±0.5×10-2(%)vol ( absolute error ) or±5% ( relative error )
O2±0.1×10-2(%)vol ( absolute error ) or±5% ( relative error )
NOx±25×10-6 (ppm)vol ( absolute error ) or±4% ( relative error )
Stability:moment drift≤±3%
Repeatability ≤±2%
Resolution: HC:1×10-6(ppm)vol, CO: 0.01×10-2(%)vol,CO2: 0.1×10-2(%)vol,
O2: 0.01×10-2(%)vol, NOx: 1×10-6(ppm)vol, Lambda: 0.01,
R.P.M:10r.p.m, OIL TEMP:0.1ºC
Response time: 95% response is not more than 10 seconds
Preheating time: 8min ( preheating 3min emergency detection )
And-use temperature: -5~50°C, Relative humidity: ≤90%
Life of O2 sensor and NOX sensor in the air for two years and 14 months, respectively. (over the period decreased accuracy)
Power supply:
direct power supply with built-in battery
Direct power supply vehicle DC12V use (without any power inverter)
The AC100~240V 50/60HZ supply
Power consumption: 50VA
Dimension: 520 (L )×360(W)×250(H)mm
