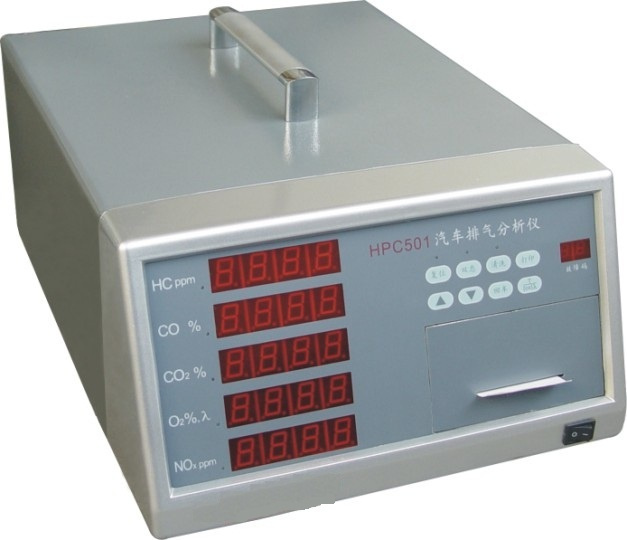

Zhzf-Hpc501 Automotive Exhaust Gas Analyzer

Prod Model:	ZHZF-HPC501
Certification:	ISO
Update Method:	by Internet
Testing Equipment Type:	Exhaust Gas Analysis

Product Description

ZHZF-HPC501 automotive exhaust gas analyzer
Main Features:
   Used to measure vehicle emissions of HC, CO, CO2, O2 and NOx gas concentration, automatic
calculation shows that air-fuel ratio λ, can be the engine combustion performance and emissions
of pollution in a comprehensive test. Use of advanced foreign technology, import the key
 components assembled. With a high-brightness digital display, automatic zero, linearautomatic
data processing, auto-alarm when the gas line blocking, fault diagnosis where the  unit automatically
 and print testing date, time functions, with built-in printer (or the analog output interface or
 RS -232A digital serial communication interface), can be freely idling and dual idling measure,
Multi-mode measurement,with convenient operation, accurate measurement data, work stable
 and reliable characteristics.

Main technical parameters:

Measuring range:HC: 0~10000×10-6(ppm)vol,CO: 0~10×10-2(%)vol )
                         CO2: 0~20×10-2(%)vol, O2: 0~25×10-2(%)vol
                        NOx: 0~5000×10-6(ppm)vol,
                        R.M.P: 0~9999r.m.p   OIL TEMP:0~150ºC
                        Lambda: 0.50~3.00    COcor:0~10×10-2(%)vol
Indicating error: HC±12×10-6(ppm)vol ( absolute error ) or±5% ( relative error )
                CO±0.06×10-2(%)vol ( absolute error ) or±5% ( relative error )
                        CO2±0.5×10-2(%)vol ( absolute error ) or±5% ( relative error )
                O2±0.1×10-2(%)vol ( absolute error ) or±5% ( relative error )
                NOx±25×10-6 (ppm)vol ( absolute error ) or±4% ( relative error )
Stability:moment drift≤±3%
Repeatability ≤±2%
Resolution: HC:1×10-6(ppm)vol, CO: 0.01×10-2(%)vol,CO2: 0.1×10-2(%)vol,
 O2: 0.01×10-2(%)vol, NOx: 1×10-6(ppm)vol, Lambda: 0.01,
 R.P.M:10r.p.m,  OIL TEMP:0.1ºC
Response time: 95% response is not more than 10 seconds
Preheating time: 8min ( preheating 3min emergency detection )
   Output mode: digital direct reading, gases can be attached printer name, the maximum
concentration, test time, date. Can interface with computer networking
And-use temperature: -5~50°C,  Relative humidity: ≤90%
Power:     AC100~240V 50/60Hz or DC12V( Add power inverter)
Power consumption: 40VA
Dimension:  420 (L )×310(W)×170(H)mm
Weight:     9kg
