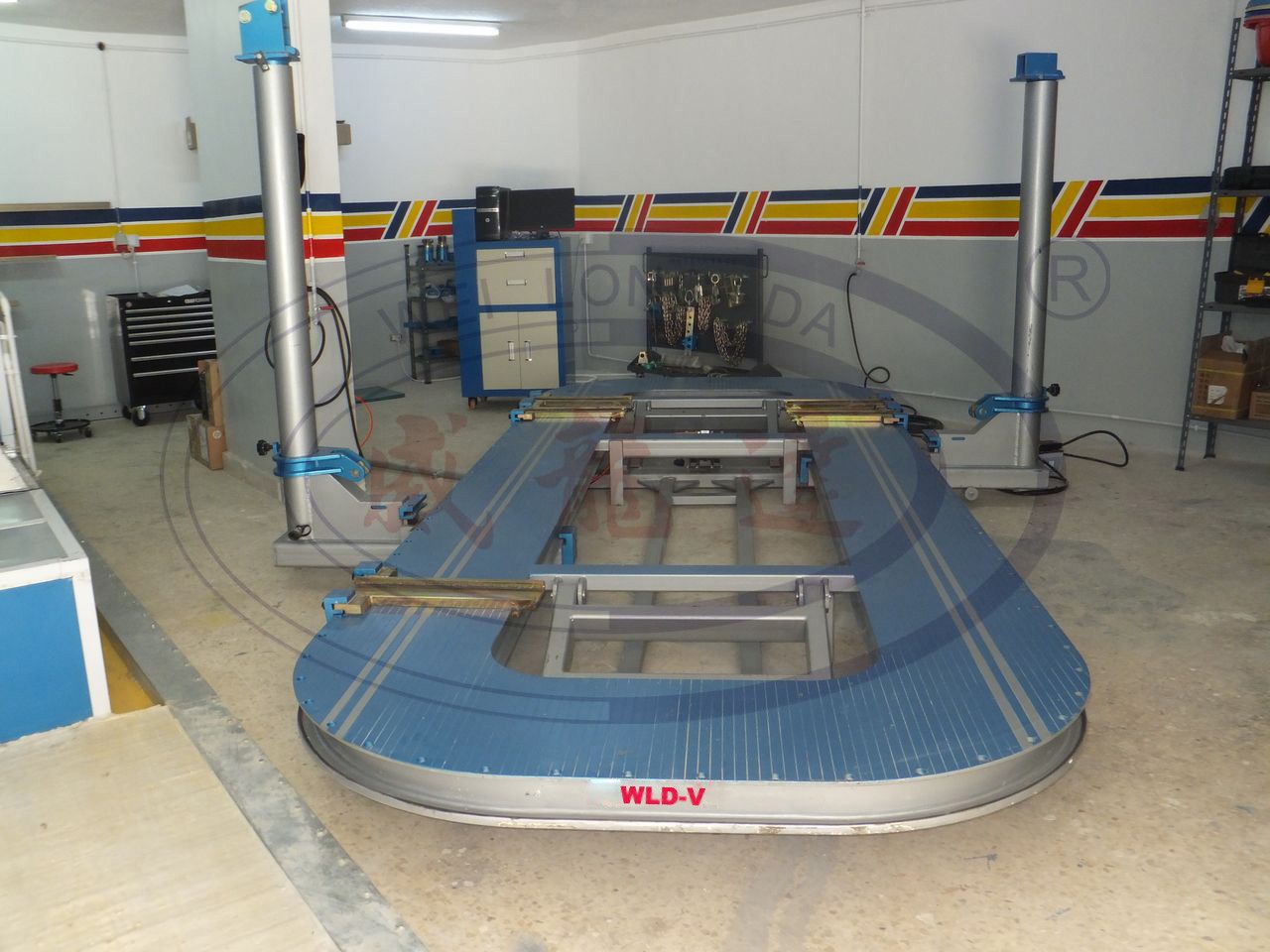

Wld-V Auto Body Frame Machine

Wld-V Auto Body Frame Machine
Price: US $ 9761-11761/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T

Quick Details
Weight: 98000N
Bench Height: 300-610mm
Max. Hydraulic Pressure: 69MPa
Max. Lifting Capacity: 5000kg
Max. Tension (N): 98000N
Worktable Length: 5328mm
Worktable Width: 2000mm
Place of Origin: Guangdong, China (Mainland)
Brand Name: WeiLongDa
Model Number: WLD-V
Warranty: 1 Years
Packaging & Delivery

Packaging Details:
Polyfoam package
Delivery Detail:10 working days

Specifications

Working-bench Length: 5328mm
Working-bench Width: 2000mm
Working-bench Height: 300-610mm




WLD-V Car Body Alignment Bench Features:

The high-accuracy large bench provides an ideal place serving for several purpose.

The oil cylinder operating vertically has a strong pulling force up to 10 tons.

Various jigs and auxiliary clamps cover almost all repair situations.

The two movable hydraulic pulling towers can turn 360 degrees along the bench rail, making work on all sides of the vehicle fast and efficient.

High-precision movable three-dimensional measuring system is easy to handle.

The working height of the vertical lifting bench can be adjusted between 300mm and 610 mm as needed.

The general-purpose jigs are suitable for the positioning and fixing of cars both at home and abroad.

The hydraulic system imported from USA has the advantages of reliable performance and long service life.

A data manual for latest car models of various series is provided.


 WLD-V Specifications:
Working-bench Length:      5328mm
Working-bench Width:       2000mm
Working-bench Height:      300-610mm
Equipment Overall Weight:   2480kg
Hydraulic Power:           69MPa
Power Pulling capacity:      98000N
Radius of Pulling:           360°
Air Supply Required:        100PSI
Lifting Capacity:            5000kg
Prod Model: WLD-V
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length: 5328mm
Width: 2000mm
Height: 300*610mm
Weight: 2480kgs
Hydraulic Power: 69MPa
Tower Pulling Capacity: 98000n
Radius Of Pulling: 360°
Air Supply Required: 100psi
Lifting Capacity: 5000kgs
Type: Flatbed-type
Max. Lifting Capacity: 3.5T
Certification: CE
Condition: New
Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
