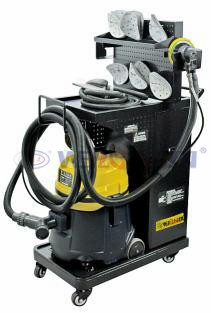

Wld-98c Hot Sale Dry Sanding Dust Extraction System

WLD-98C Hot Sale Dry Sanding Dust Extraction System

* The company's industrial vacuum dust collection system is
designed specifically for the dust-free grinding workshop.The use of
turbo technology suction principle 1200W ultra-quiet high road motor,
 with super dust effect can be used with pneumatic grinding machine,
Hand grinding plate and other matching grinding tools.
* The machine has a high precision filtration function of double dust ,
this function can ensure  workshop's hygiene to improve the
working environment,then let operator  far away from the hurt of
breathing dust .
* Our dust drum with automatic and manual switching function,The dust
drum is activated when the grinding machine is in operation,When the
grinding machine stops, it is delayed by 5-8 seconds,Effectively suck the
 dust,Handling is very easy and environmentally friendly energy saving.
* Vacuum host standard high-precision oil-water separator and oil mist,Grinder can automatically supply lubricating oil for maintenance,
Eliminating the need for operators to fill the complex process of lubricating oil.
* Apply to the substrate before painting,Such as atomic ash, In the primer,Finish polished.
* Strong suction,For two stations at the same time work,Dust collection effect of more than 90%.
* Workshop paint area less dust pollution,Clean environment,Paint quality improvement.
* Automatic cooling,low noise,high efficiency,Long service life.
Parameter
Working pressure demand:6.1KG/cm2    Power consumption:1,200W±10%
Negative pressure:2,100mm/H2       Capacity:36L
Air volume:2.5m2/min                 Voltage applied:220-240V/60HZ
Specification:830*525*920mm            Weight:62KG
Standard configuration *  Select the configuration







Advantage :



Dry Sanding Dust Extraction System is to finish surface sanding treatment by pneumatic or electrical tools without water as well as to suck dusts produced by sanding work to synchronized integrated dust collecting system. In comparison to the traditional wet sanding, advanced dry sanding technology has following advantages:

1.Time and labor saving: the output rate is much higher. The cutting force for wet sanding by labor is much lower than machine dry sanding, so the time for sanding one work piece by wet sanding is triple of the machine dry sanding, and no need to wait for work piece drying before the next process, the painter can sand more cars at the same work station, work efficiency improved a lot.

2.Environmental Protection:  obviously, dry sanding is more environmental than wet sanding. Wet sanding makes a lot of sewage water, and hurts painter's hands because of long time soaked into it, especially for the painters under very cold conditions. Dry sanding doesn't use water and dust-free technology be used into automatic dust collecting dry sanding system, provides a clean and environmental friendly painting station. Nowadays, the labor and environment regulations are more and more strict, and painters self-protection awareness is improved, we have to pay more attention to environment.

3.Better painted surface treatment: it's the most important point. Perfectly smooth surface can be created by machine dry sanding, benefiting the follow-up processes. Orange skin, bubble and sanding marks are avoided under Dry Sanding Dust Extraction System.

4. No rust got because of no water, and shorten the drying time for putty, middle coating etc., simplifies the repair process and guarantees the repair quality.

5.The using life for sanding paper is extended as a result of dry sanding and dust sucked, the repair time and cost for repair are saved. By the use of dust-free dry sanding system, no waste water and dust, ensures the repair quality, protects the environment, and guarantees the painter's safe and healthy.

6.The working efficiency, quality and circumstance are improved a lot because of automatic dry sanding technology use . In the long run, we believe, the unit cost for dry sanding will be lower than wet sanding, and it will be popular using.
