Waterproof Tube Video Sewer Pipeline Inspection Camera with Depth Counter

Name: Waterproof Tube Video Sewer Pipeline Inspection Camera with Depth Counter
Brand: ibuyautoparts.com
SKU: 690961831
Availability: InStock
Rating: 4.5 (132 reviews)

Price:	US $ 500-700/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

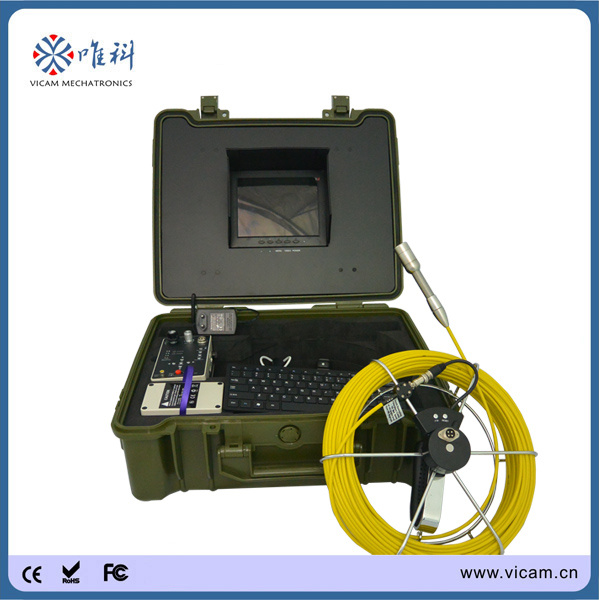

Waterproof tube video sewer pipeline inspection camera with depth counter

V8-3188KC with meter counter

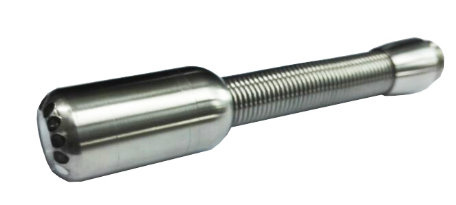

camera head	size	diameter 23 X 45mm
	material	stainless steel
	lens window material	sapphire glass
	sensor	1/4 inch CMOS
	pixels	PAL: 720 X 576 NTSC: 720 X 480
	field of view	120 degree
	waterpoof	IP68
	Illumination	12 pcs intensity LEDs

monitor	size	8 inch
	brightness	400 cd/ m²
	display model	4:3 / 16:9
	resolution	800 x 600

cable reel	material	fibreglass push rod with meter counter
	diameter	5.2mm
	length	20m to 50m optional
	reel size	Φ320 x 110mm

DVR control unit	DVR control buttons
	SD card (max 64G) jack,keyboard jack
	LED brightness adjusting knob
	A / V & photo selection available
	On/off microphone control button
	Battery level indicator lights


Carrying case	size	52 x 43.5 x 20cm
	unit condition	-10 to 50 degree Celsius, RH 95% maximum
	stroage condition	-20 to 70 degree Celsius, RH 95% maximum
Option	512Hz transmitter

Packing & Shipping:

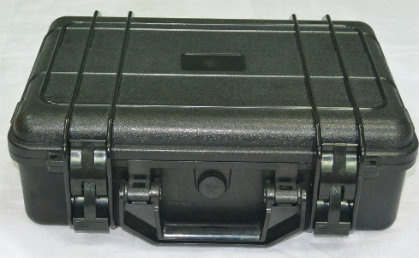

* Durable ABS carrying case 520 x 440 x 200mm
* 2 pieces cases in one carton
* All products will be tested & inspected before delivery
* Tracking No. Will be sent after delivery

About Vicam

Vicam Mechatronics Co., Ltd is located at Shangxue Industrial Park in Shenzhen, South of China. Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras. Most of our products sold to Europe, America, Australia, Middle East, South Africa and South America market. In the process of Vicam growing up, we have got very important technical support from CYBERIA SAS, and Shenzhen Institutes of Advanced Technology.

Our main product range include portable pipeline video inspection system, industrial and city underground pipe video inspection system, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environment.

The Vicam tenet is to rely on the advanced technology, meet the global market demand, provide good quality products and good service to all our customers!

Prod Model:	V8-3188KC
Camera Diameter:	23mm
Sensor:	CMOS
LED Lighting:	12 PCS White LEDs
Special Features:	Waterproof / Weatherproof
Lens:	Sapphire Glass
Camera Material:	Stainless Steel
Viewing Angle:	90 Degree
Cable Lenth:	20m / 30m / 40m / 50m
Cable Material:	Fibreglass
Battery:	6600mA
Certification:	RoHS

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
