Waterproof Tough Pulling Electric Winch with 12500 Lb

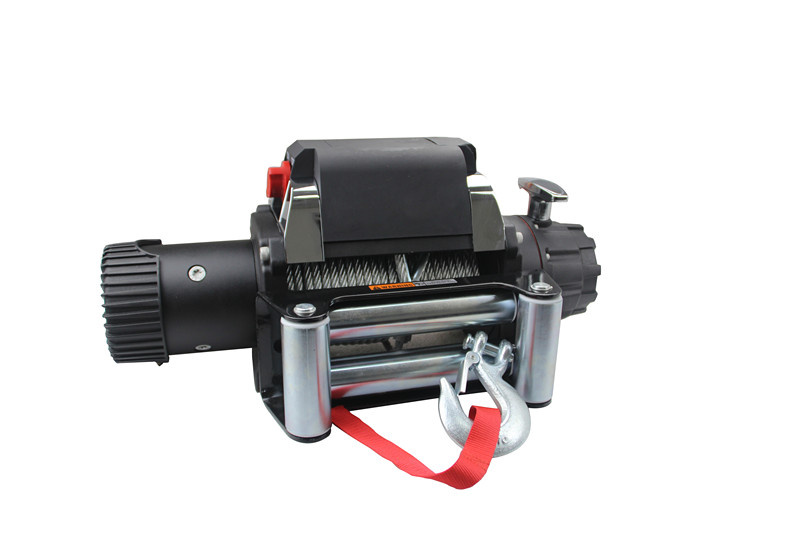

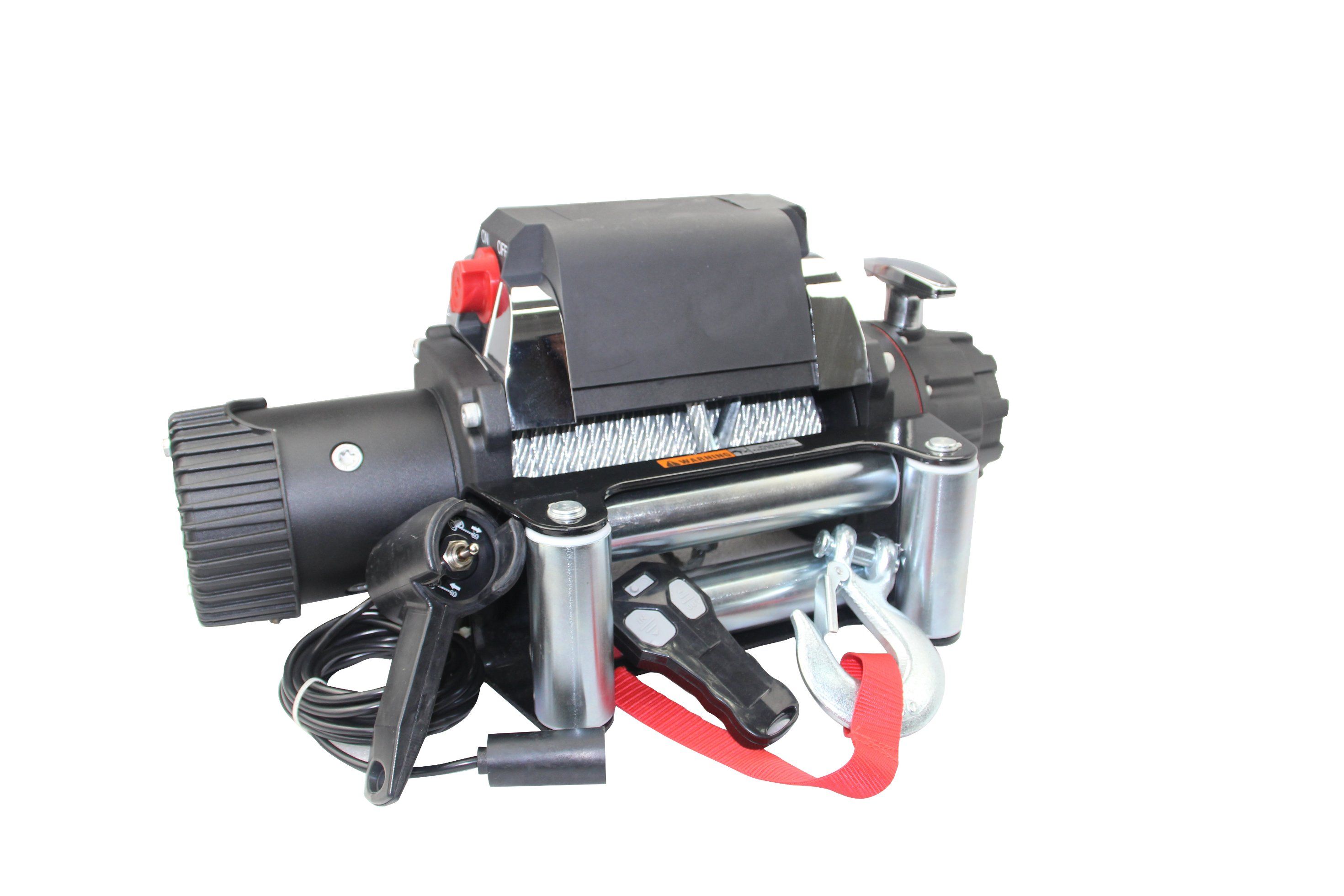

Name: Waterproof Tough Pulling Electric Winch with 12500 Lb
Brand: ibuyautoparts.com
SKU: 839031665
Availability: InStock
Rating: 4.7 (138 reviews)

Price:	US $ 165-178PCS
Min Order:	24PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Ultimate performance winch for Professional 4x4 off road riders . Fast speed ,high torque & big horsepower sealed series wound motor . Bigger two supporting aluminum brackets with waterproof o-rings . Big T-shape clutch bar can be laser etched logo and make clutch "IN" or " OUT " easily .All steel gears increase the strength and durable of them and run smoothly and quietly .

New solenoid box design ,extra breaker switch integrated into the control box to switch"Wireless" and " Wired" control mode freely .Power In/Out .Waterproof .New unique wireless remote kits included . It's a ideal recovery winch for off road riders ! IP67 !
Performance:
Part number: XM-XU607
Single line rated pull: 12,500lbs ( 5665kg)
Motor: DC 12V 6.0hp/4.5kw series -wound
Braking action: Automatic locking with motor
Clutch: Sliding ring gear
Gear train : 3 -stage planetary
Gear ratio: : 216: 1
Electric control: Contactor
Remote Switch: 1ft ,wire remote control with black hand bar ,
wireless remote included
Battery:         Recommended:650CCA minimum for winching
Battery Leads:         2 Gauge 72"(1.83m)
Fairlead:             4-way roller fairlead
Steel cable:          Ф9.5 x 88 ft (Ф9.5 x 26 m )
12V DC PERFORMANCE SPECS

Line Pull lbs.(kgs)	Line Speed Ft./min(M/min)	Motor Current	Pull by Layer layer/lbs(Kgs)
0	37.2(12.44)	72	1/12500(5665)
4000(1812)	14.22(4.74)	136	2/9650(4372)
6000(2718)	12.72(4.24)	198	3/8126(3680)
8000(3624)	10.26(3.42)	266	4/7045(3192)
10000(4304)	8.55(2.85)	310	5/6380(2890)
12500(5665)	4.65(1.55)	372

Above performance specs are based on first layer of drum
Weight: 88 pound (39.5kg )
Overall dimension: 22.3" x 9.2" x 6.3" (566mm x 234mm x 160mm)
Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)

Prod Model:	XM-XU607
Weight:	35.50 Kg
Warterproof:	IP67
Durable Cycle:	10000 Times
Warranty:	13 Months
Pulling:	12500lb
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
Working Voltage Of Electric Winch:	12 or 24 V
Electric Winch Model:	Truck Jeep Trailer

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
