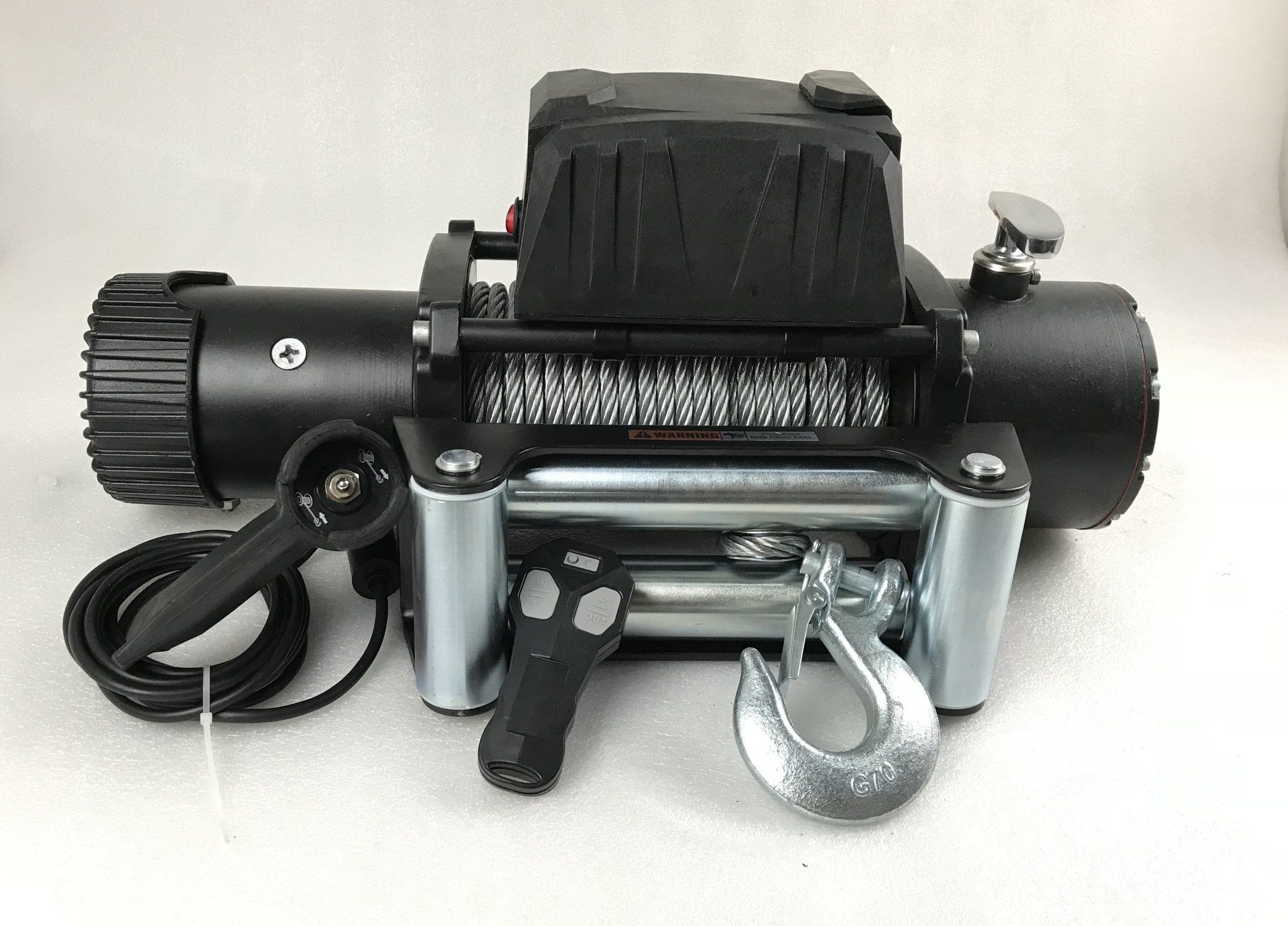

Durable & Reliable Performance Truck Winch with 8500 Lb Waterproof

It exclusively designed to 4x4 off -road driving  .New generation with classic design ,excellent performance ,powerful pulling with small price ,which are the top choice for customers . high quality with brute torque series wound motor ,motor cool cover incuded  , 3 stage  steel gear driven- train , Sliding ring gear for "engage" and "disengage" through the rotation clutch handle,New  contactor box design with an extra switch for wireless or wired remote working  . Working at extreme hard condition , low noise ,small amps .Top recovery equipment for off-road . They are available of pulling ranges from 8500lbs-12500lbs . Welcome to further inquiries !

OEM is available

Synthetic rope & aluminum fairlead are available for this model !

8500LBS Features and Specifications :

Part number : XM-TE943

Performance: DC 12 V OR 24 V

Single line rated pull: 85,000lbs ( 3850kg)

Motor: 5.2hp/4.1 kw  series -wound sealed  ,fast speed

Braking action: Automatic locking with motor

Clutch: Sliding ring gear

Gear train : 3 -stage planetary

Gear ratio: 265.2: 1

Remote Switch: 12ft ,wire remote control with black hand bar , wireless remote kits included

Battery: Recommended:650CCA minimum for winching

Battery Leads: 2 Gauge 72"(1.83m)

Fairlead: 4-way roller fairlead (Aluminum Hawse available )

Synthetic rope: Ф8.0 x 85 ft (Ф8.0x 25 m )

Weight: 76 pound (34.5kg )

Overall dimension: 21.3" x 8.6" x 6.3" (550mm x 220mm x 160mm)

Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)
