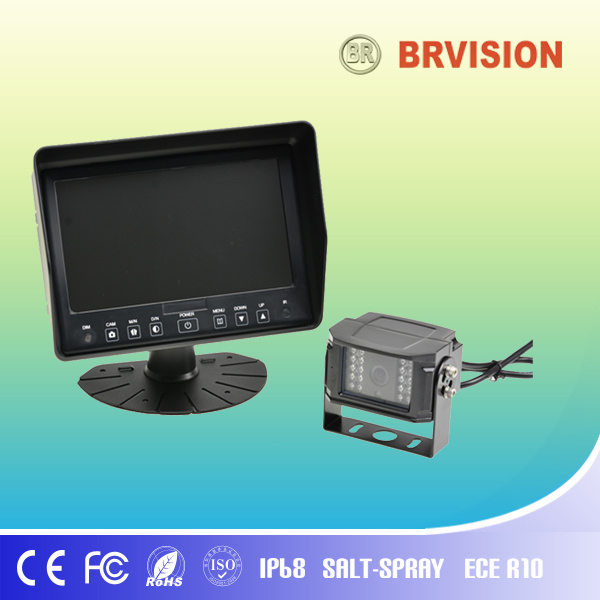

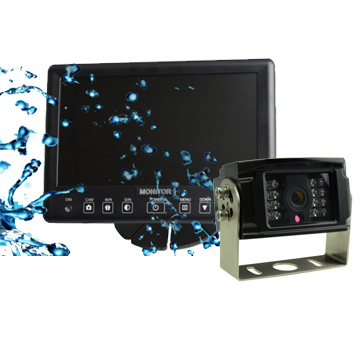

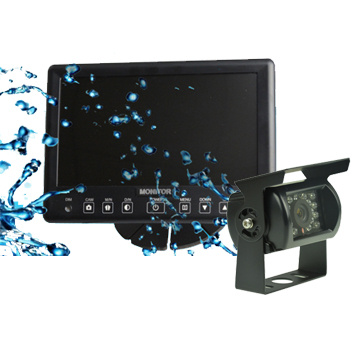

Monitor Specification:7" waterproof monitor with 2ch input. 2 trigger cables.. This monitor is completely waterproof with an IP67 rating. It has built-in speakers, can display any camera with 4P connections.. Super waterproof and perfect appearance design. Nice choice for agriculture vehicles, cranes, and marine vehicles.. | Item No. | BR-702WP |
| Monitor | IP67 waterproof monitor support 2CH input |
| connector | 4 pin connector |
| Image | 16:9 |
| Color system | PAL/NTSC(selectable) |
| Language | 9 languages for selection |
| Resolution | WSVGA 1024 |
| horizontal | 600 vertical pixel |
| Power requirement | 12/24V DC |
| Power consumption | 5W |
| Dimension | 261 (L) x 177 (W) x 70 (D) |
| Operating temperature | -30° to +70° |
| Storage temperature | -40° to +80 |
| Certificate | CE,EMC,FCC,ISO9001:2008,E8 |
- Screen size: 7-inch panel (diagonal length)
- Input: 2-way video input
- System: PAL and NTSC auto switching
- Resolution: 480 x R-G-B x 234
- Power supply: 12-24V DC
- Built-in speaker (optional)
- Heavy duty reversing
- OSD menu .
- contrast, color, brightness adjustable
- View angle range: (left/right) 65 degrees (top) 40 degrees
(down) 15 degrees

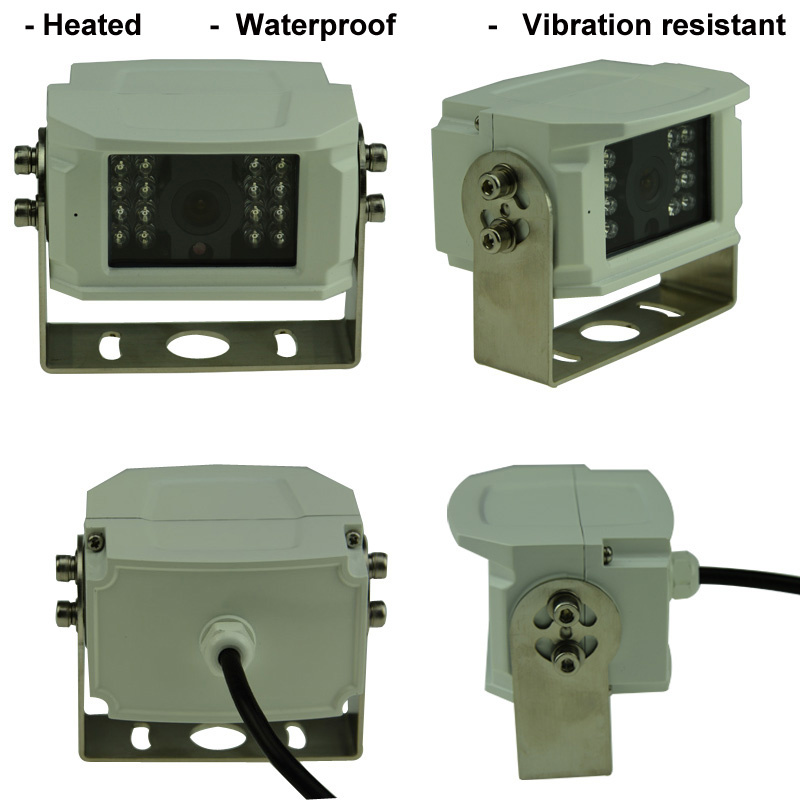

Camera Specifications:BR-RVC16, backup camera is completely weatherproof with an IP69K rating, strong and reliable, shock resistant with a 20G vibration and 100G shock rating (highest in the industry) and comes with a full year warranty. It is fit for all kinds of vehicles. Silver, black, white color for selection.| Item No. | BR-RVC16 |
| Image Type | 1/3" 1/4 Color CCD/CMOS |
| IR | 20pcs IR lamp with excellent night vision |
| Color | White, black, silver for selection |
| TV System | NTSC/PAL |
| Lens Angle (Deg.) | 120 degree |
| IP Rating | IP68 |
| Vibration Rate | 10G |
| Connector | 4P connector |
| Effective Pixels | N: 510×492 pixels P: 500×582 pixels |
| Horizontal Resolution | 420TVL/700TVL |
| B.L.C | Back light Compensation (Auto) |
| White Balance | Auto White Balance (Auto) |
| Minimum Illumination | 0Lux (LED ON) |
| S/N Ratio | >=48dB |
| Electronic Shutter | 1/60~1/100,000 Sec |
| Power consumption | <3W |
| Built-in Lens | f: 2.8mm |
| Power Consumption | DC 12V (+/-10%) |
| Audio | without |
| Operation Temperature | -30ºC~+70ºC.RH95% Max |
| Storage Temperature | -40ºC~+80ºC.RH95% Max |
| Certificate | FCC,CE, E-mark,ISO9001,TS16984, RoHs |
Key Specs:- Type High resolution backup camera
- Image Sensor 1/3" CCD
- TV System NTSC/PAL Optional
- Effective Pixels N: 510* Pixels P: 500*582 pixels
- Horizontal Resolution 420 TV Line
- Lens Angle 140°
- Minimum Illumination 0Lux (LED ON)
- IR Led 10pcs for night vision distance 45ft
- Audio function
- Operating Temperature -20°+70°RH95% Max
- Lens f=2.8mm
- Power Supply DC12V
- Waterproof Rate IP68
- Shell Material Aluminium alloy
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
