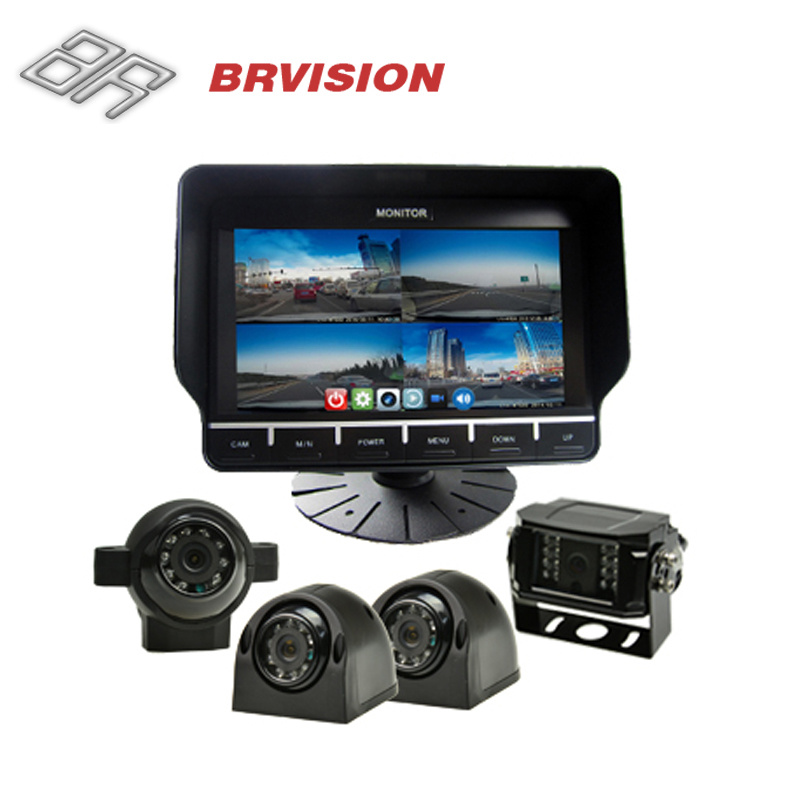

7''DVR recording monitor, with a power harness capable of connecting, and viewing simultaneously, four cameras. This monitor comes with a built in DVR allowing you to record what all cameras are viewing. A 4GB SD card comes included with this monitor which can record hours from all four cameras. For longer recordings, the monitor can handle up to a 128GB SD card.

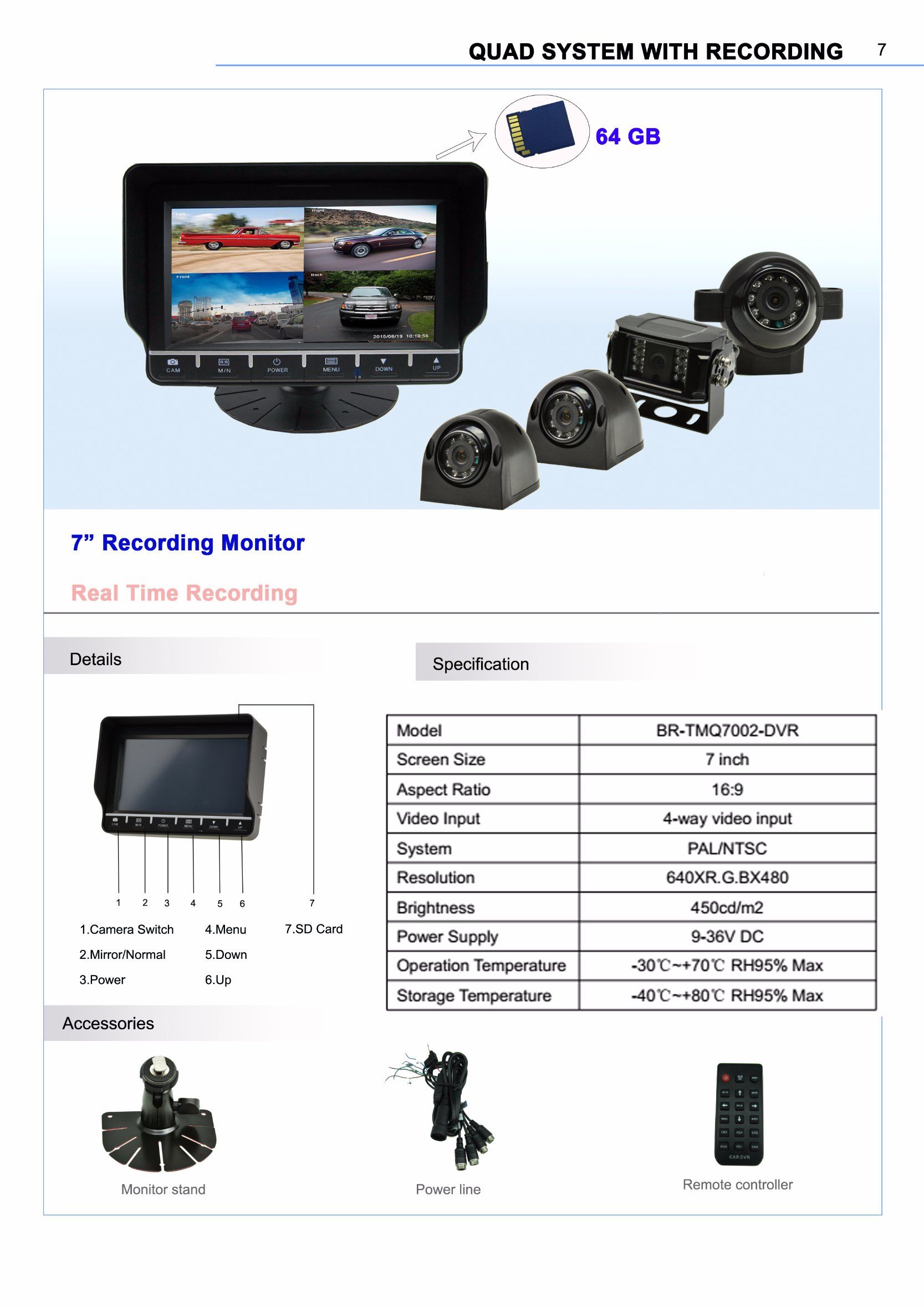

| Item No. | BR-TMQ7002-DVR |
| Monitor | 7'' inch recording monitor, support 128GB SD card |
| Image | 16:9 |
| Color system | PAL/NTSC(selectable) |
| Resolution | WSVGA 1024 |
| horizontal | 600 vertical pixel |
| Power requirement | 12/24V DC |
| Language | 9 languages for selection |
| Power consumption | 5W |
| Dimension | 261 (L) x 177 (W) x 70 (D) |
| Operating temperature | -30° to +70° |
| Storage temperature | -40° to +80 |
| Certificate | CE,EMC,FCC,ISO9001:2008,E8 |
BRvision Sony high resolution camera 7'' lcd monitor mobile DVR exporter
7''DVR recording monitor, with a power harness capable of connecting, and viewing simultaneously, four cameras. This monitor comes with a built in DVR allowing you to record what all cameras are viewing. A 4GB SD card comes included with this monitor which can record hours from all four cameras. For longer recordings, the monitor can handle up to a 128GB SD card.

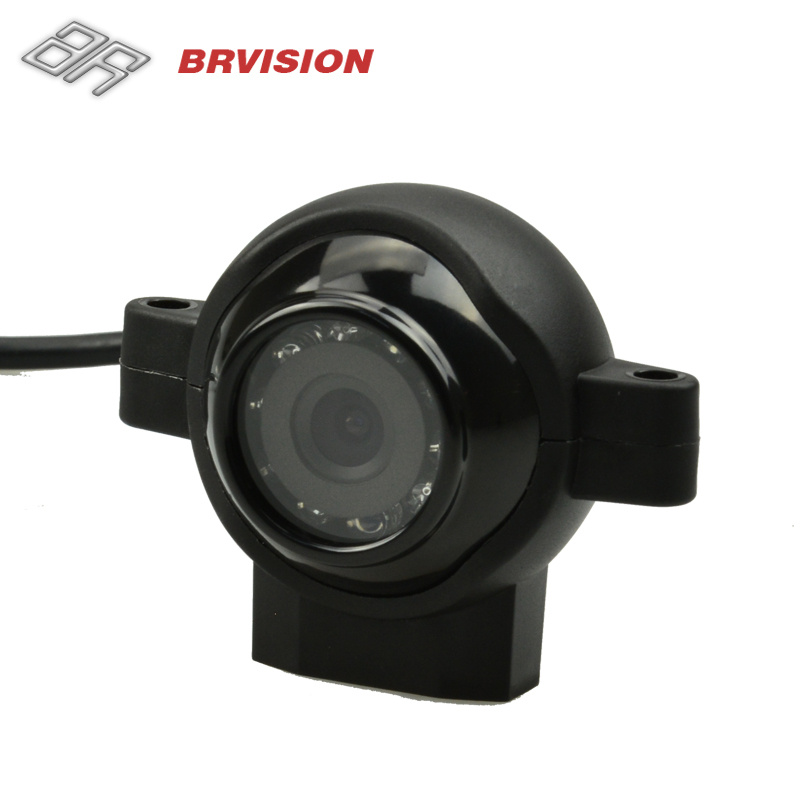

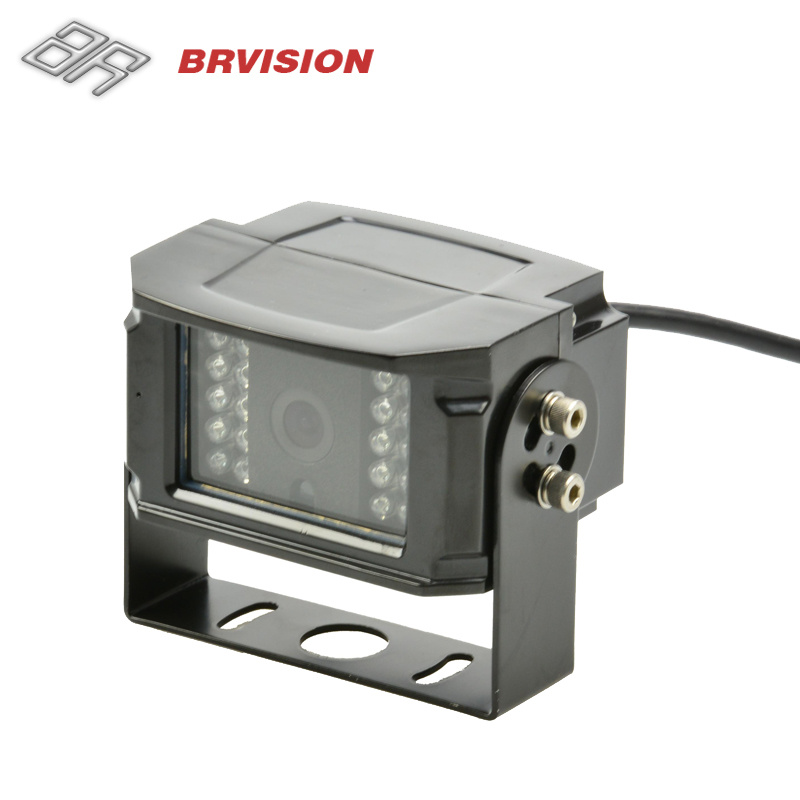

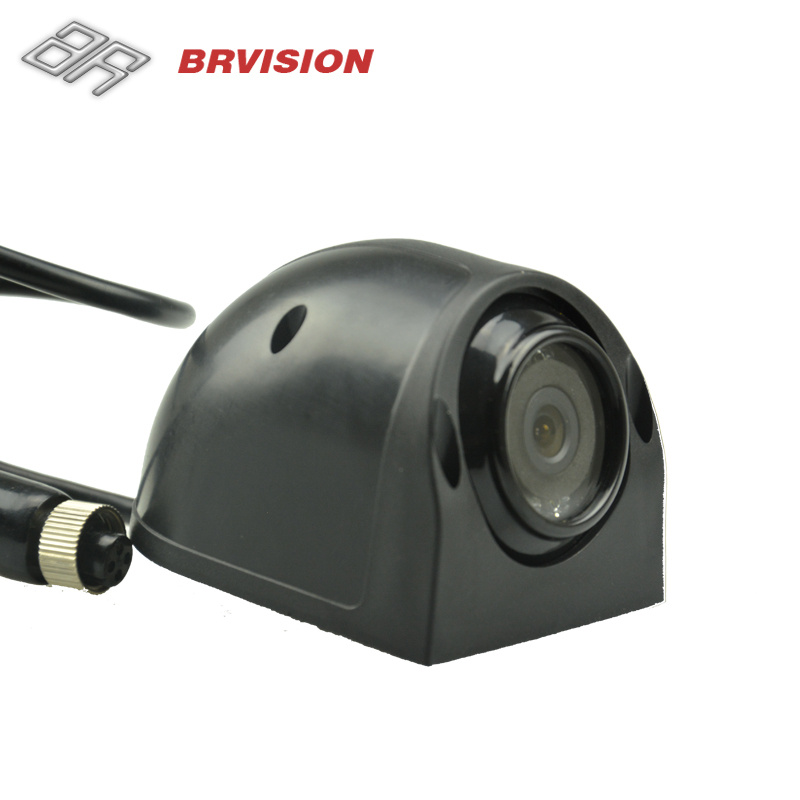

Camera Specifications:- Type High resolution backup camera
- Image Sensor 1/3" CCD
- TV System NTSC/PAL Optional
- Effective Pixels N: 510* Pixels P: 500*582 pixels
- Horizontal Resolution 420 TV Line
- Lens Angle 140°
- Minimum Illumination 0Lux (LED ON)
- IR Led 10pcs for night vision distance 45ft
- Audio function
- Operating Temperature -20°+70°RH95% Max
- Lens f=2.8mm
- Power Supply DC12V
- Waterproof Rate IP68
- Shell Material Aluminium alloy
| Power | DC12V |
| IP Grade | IP68 |
| Case material | Aluminium alloy |
| Image sensor | 1/3'CCD |
| Angle | 60/80/120/160 |
BRVISION TECHNOLOGY CO., LTD is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products.
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera,wireless Module, dvr recorder camera and etc.We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificates: CE, FCC, Emark, ISO9001-2008
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
