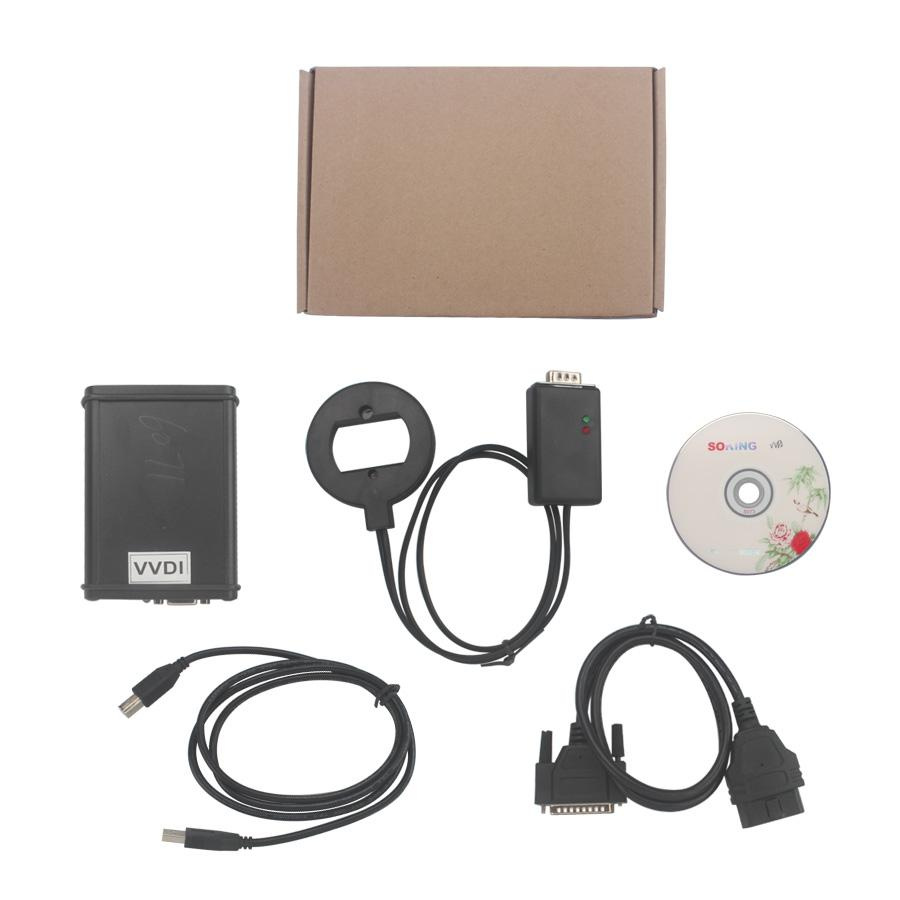

Latest VVDI V3.5.3 China VAG Vehicle Diagnostic InterfaceTop 6 Reasons to Get VVDI:
1. Latest Version: V3.5.3
2. Update Online
3. Operating System: Win7 and XP
4. The VVDI IMMO Plus V2.7.6 Includes the VAG Commander and Tag Key Tool Software. You Don't Need to Reinstall These 2 Software Separately Anymore
5. Powerful Function Tool for VAG Vehicles, Especiall Key Programmer and Mileage Correction.
6. Add Component Protection Function Since V2.8.2 Version
Notice:
1. Language: English
2. VVDI can read Pin,CS and MAC, it's free for VVDI bouhgt from us now, only need to offer us serials number to open Authorization
VVDI Includes 3 Parts: ImmoPlus, VAG Commander software, Tag Key Tool function
1. ImmoPlus supports prepare delaer key for VAG new cars. Such as VW 4th/5th immobilizer. Even the car lost all working key or with keyless.
2. VAG Commander Software can do diagonistics for VAG cars. Also change KM, read PIN, learning key etc.
3. Tag Key Tool is used for chipset read/write. Make key with eeprom dump file etc.
VVDI 3.5.2
1. This version DON't need update firmware
2. Fix bug for KWP2000 protocal update programming
3. Fix bug for Seat 4th immobilizer 2013 NEC+24C64
4. Fix bug for EZS-Kessy 9S12DT128 read EEPROM
5. Fix bug for CDC32xx, A3/TT/R8 login error
Support Car List:
1 AN002 - KM-CAN
1 AN003 - PIN-CAN
1 AN004 - IMMO panel
1 AN005 - IMMO panel EDC16
1 AN006 - KM/PIN K-Line
1 AN008 - Flash Counters
1 AN009 - Key learning
1 AN010 - Airbag EEPROM
1 AN011 - TV Activation
1 AN012A- EDC16 Odometer
1 AN012B- EDC16 EEP/PIN/IMMO-off
1 AN014 - EDC17 EEPROM
1 AN015 - Flash Memory ECU
1 AN016 - Dealer key learning
1 AN018 - Dealer key learning Q7
1 AN019 - Prepare Dealer Key Q7
AN021 - ME7 EEPROM by CAN
AN022 - CDC32xx Programmer
AN027 - Q7 2008
China VAG Vehicle Diagnostic Interface VVDI Function Added:
1. Support NEC 24C32, NEC 24C64 change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.
2. Support GOLF5 MM7(9S12) change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.
3. Add TA special chip pre-program. Directly pre-program ID48 to TA2,TA3, TA4, TA5 chips.
Function:
1) Extracting security access codes (PIN) by OBDII
2) Programming keys by OBDII. Preparation of dealer's keys.
3) Mileage recalibration by OBDII
4) Clearing crash data DTCs by OBDII
5) Read/Program flash memory of engine control units by OBDII. Options for resetting the number of flashing attempts.
6) Exchange speed limit of MMI-TV system
Standard Diagnostic Functions:
1) Connect to the device using KWP2000 over TP2.0, KWP2000 over TP1.6, UDS over ISO transport protocol (CAN), KWP1281 or KWP2000 over K-Line
2) For all electronic control units reading identification data
3) For all electronic control units read error (DTCs)
4) For all electronic control units clear error (DTCs)
5) Scan all units
6) Broadcast requests
7) Measured values
8) Adaptation
Special Functions:
1 Instrument CAN
(1) With this function you can establish diagnostic session with the Instrument cluster using KWP2000 over TP2.0
(2) You can read current odometer value
(3) You can change odometer value
(4) Added support for VDO Instrument Cluster 2006+
(5) Read/Program memory of instrument cluster immobilizer
(6) Reading security access code of the IMMOBILIZER
(7) Read/Write immobilizer related data
2 EZS - Kessy (Q7/A6/Allroad)
(1) With this function you can prepare dealer key/learn dealer key
(2) Read/Write eeprom from EZS - Kessy (Q7/A6/Allroad)
3 Instrument K-Line
(1) With this function you can establish diagnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)
(2) You can Read/Change odometer value
(3) Read PIN code
(4) Read/Write eeprom
(5) Read ROM/Flash from the Instrument cluster
4 Engine Control Unit
(1) Read EDC17/MED17 flash memory
(2) Read/Write of flash memory (EDC15, EDC16 all types Read/Write Flashmemory via OBDII (K and CAN). Calculation of checksums while programming, ME7.1.1, MED9.x, ME7.5)
(3) Read/Write flash counters (EDC16)
(4) Read/Write eeprom (VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.)
(5) Extracting Security access code / PIN (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, EDC17, MED9.x, Simos PPD)
(6) Extracting Component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, MED17.5.1, MED 9.x, Simos PPD)
(7) Enable/Disable immobilizer (EDC15, ME7.x, EDC16)
(8) Odometer correction (EDC15, EDC16)
5 Kessy adaptation
This function can be used for adaptation of brand new kessy units to the car. This adaptation can be by CAN TP2.0, K-KWP2000 and also can be used with Porsche Cayenne.
