TOOL EZ500 Full-System Diagnosis for Gasoline Vehicles
XTOOL EZ500 Features:
*Easy registration when EZ500 is connected to WIFI
*One-click software update via WIFI
*Remote access
*Diagnosis reports in PDF file
*Record and playback live data
*8.0 inch multi-touch screen
*On-board battery
*Extensive vehicle coverage for most US, Asian and European vehicle makes

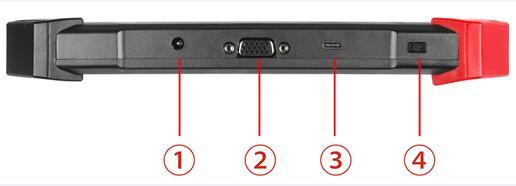

Xtool EZ500 Layout
DC Charging port: Battery chargingDB15 Interface: Supports wired connection with car by the cableUSB Type C Interface: Compatible with HDMI TV port; Transfer audio and video simultaneouslyPower Button: Power on or power off

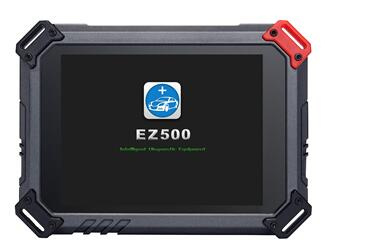

Xtool EZ500 Tablet Front View
Xtool EZ500 Tablet Back View

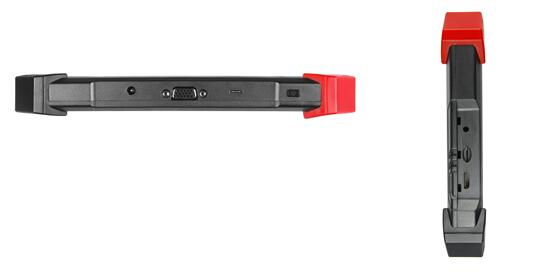

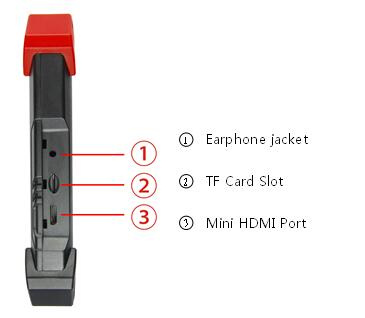

Xtool EZ500 Tablet Side View

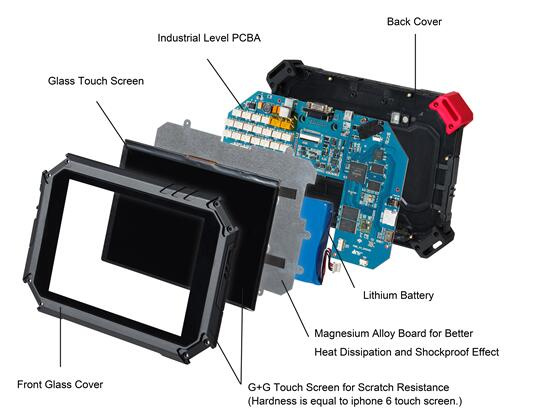

EZ500 Exploded Diagram
Easy registration when EZ500 is connected via Wifi, no need connected to PC. Extensive vehicle coverage for most US, Asian and European vehicle makes
American: for GM, for Chrysler, for Ford, for Chevrolet, for Hummer, for Cadillac, for Saturn Europe: for Volvo, for Skoda, for Land rover, for Jaguar, for Ford, for Sprinter, for Seat, for Renault, for Peugeot, for Opel, for Vauxhall, for Fiat, for Citroen, for BMW, for BENZ, for AUDI, for VW, for Porsche, for Lancia, for MayBach, for Rolls-Royce, for Mini, for Smart, for Transporter, for Lamborghini, for Gugatti, for Abarth, for VW_CV Asia: for Acura, for Honda, for Infiniti, for Isuzu, for Lexus, for Mitsubishi, for Nissan, for Suzuki, for Kia, for Toyota, for Hyundai, for Mazda, for Daihatsu, for Daewoo, for Scion, for Holden, for AUFord and more… Chinese Vehicle: for Geely, for Chery, for Greatwall, for Jiao, for Lifan, for BYD, for Brilliance and more... Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer,Body (ECM), Chassis... Specification:
| Operating System: | Android 4.4.4 |
| Memory: | 1GB RAM,16GB Flash |
| CPU | Quad Core, 1.6 GHz |
| Display | 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution |
| Sensors: | Gravity Sensor, Light Sensor |
| Input/Output: | Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port |
| Battery: | 4000mAh, 7.4V |
| WIFI | WIFI 2.4Ghz |
| Bluetooth | 100 Meters |
| Power Voltage: | 12V |
| Power Consumption: | 29.6W |
| Operating Temperature: | -20 to 50(-4 to 126) |
| Humidity: | <90% |
| Dimension: | (L*W*H): 240*177*30mm |

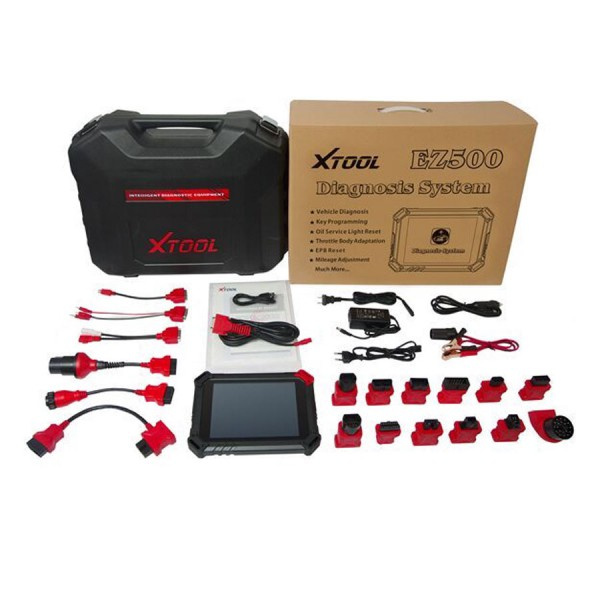

Package including:
1pc x EZ500 Tablet
1pc x Charger for Tablet
1pc x OBD II-16
1pc x for HONDA-3
1pc x for BMW-20
1pc x for TOYOTA-17
1pc x for MAZDA-17R
1pc x for KIA-20
1pc x for NISSAN-14
1pc x for GM/DAEWOO-12
1pc x for SELFTEST
1pc x for UNIVERSAL-3
1pc x for SUZUKI-3
1pc x for FIAT-3
1pc x for CITROEN-2
1pc x for AUDI-4
1pc x for MITSUBISHI-12+16
1pc x for BENZ-38
1pc x for BENZ-14
1pc x Main Cable
1pc x battery Cable
1pc x Cigar Lighter Cable
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x Micro USB Cable
1pc x Case
1pc x Stand for EZ500
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
1pc x Carton
