Vertical Honing Machine (TH170)

Name: Vertical Honing Machine (TH170)
Brand: ibuyautoparts.com
SKU: 781155015
Availability: InStock
Rating: 4.9 (91 reviews)

Price:	US $ 1-6000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

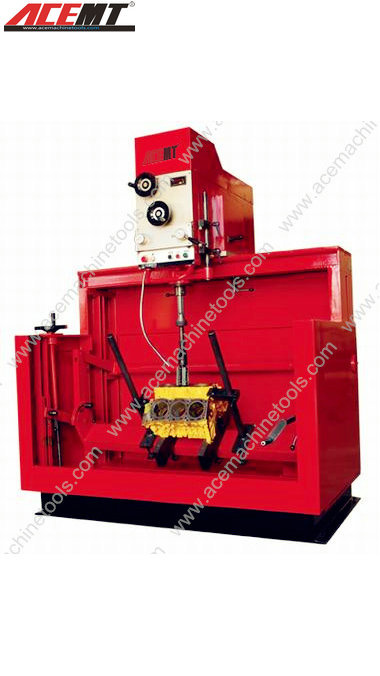

Cylinder Honing Machine-TH170

Product Description
Hydraulic vertical honing machine with head provided with pneumatic system for an easy honing spindle longitudinal and transversal positioning on the workpiece. The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks. Honing spindle with steplessly variable ratation speed visualized on the control panel.

Parameters
Maximum honing diameter	Φ 170 mm
Minimum honing diameter with automatic expansion honer	Φ 35 mm
Honer max. stoke	300 mm
Cylinder bearing plate vertical stroke	200 mm
Workpiece max. length	1200 mm
Cylinder bearing plates width	400 mm
Workpiece max. length	600 mm
Spindle head longitudinal stroke	1100 mm
Spindle head transversal stroke	80 mm
Spindle head motor	2 HP
Hydraulic plant motor	1.5 HP
Electro pump power	0.30 HP
Spindle rotating speed	100-300 rpm
Spindle alternative motion speed	0-18 m/min
Overall dimensions(L × W × H)	1800 × 1300 × 2200 mm
Packing dimensions(L × W × H)	2000 × 1500 × 2400 mm
N.W./G.W.	1200 / 1400 kg

Prod Model:	(TH170)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.

Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.

Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.

Welcome you to visit our website and contact us. We will give you quick response upon any of your need.
