Cylinder Body Bushing Boring Machine

Name: Cylinder Body Bushing Boring Machine
Brand: ibuyautoparts.com
SKU: 827200885
Availability: InStock
Rating: 4.9 (146 reviews)

Price:	US $ 1-10000/Piece
Min Order:	1/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

Product Description:

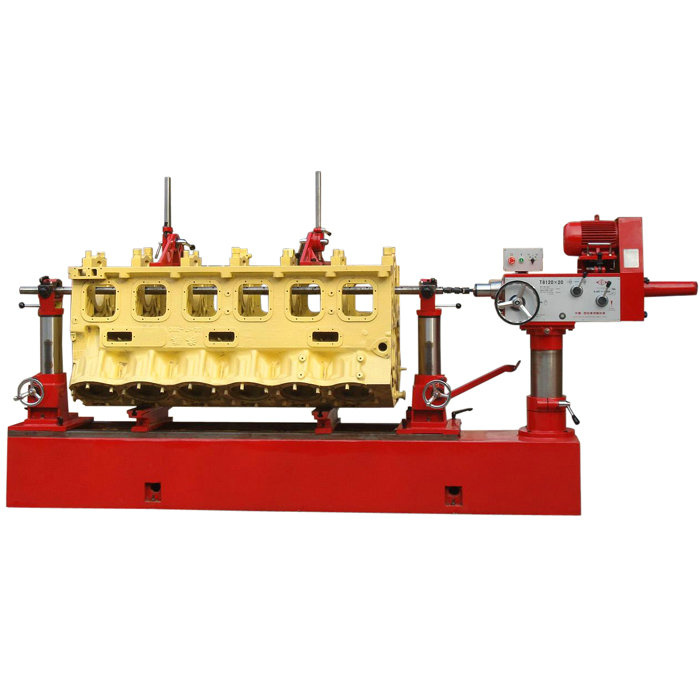

This kind of line boring machine is repairing machine tools with high efficiency and high precission,They can be used for boring master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc. If necessary, the flywheel hub bore and bushing seat hole can be also finely bored, to be supplied with following accessories : accessories for centering, sectifying tool, measuring inner diameter, boring rod bracket, tool holder to increase diameter, boring tool micro-adjuster and for distance tool sectifying device can be provided with the main machine.

Model	T8115Bx16	T8120x20	T8120Ax20
Dia. Range of boring hole	Φ36 -Φ150 mm	Φ36 -Φ200 mm	Φ28 -Φ225 mm
Max. length of cylinder body	1600mm	2000mm	2250mm
Main shaft max length	300mm	300mm	300mm
Main shaft rotating speed	210-945rpm ( 6 steps)	210-945rpm ( 6 steps)	1:30~150rpm
Main shaft rotating speed	210-945rpm ( 6 steps)	210-945rpm ( 6 steps)	11:93~467rpm
Boring rod feed quantity mm/rad	0.044, 0.167mm	0.044, 0.167mm	0.43,0.085,0.125
Motor Power	0.75kw/1.1kw		1.5kw
Stepless regulating speed+sgnchronous belf wheel	Main shaft rotating speed	30-467r/min	/
	Boring rod feed quantity	0.044,0.167mm/rad	/
	Motor Power	1.5kw	/
Machine dimension	3510x650x1410mm	3910x650x1410mm

Prod Model:	T8120X20
Model:	T8120
Max. Length Of Cylinder Body To Be Bored:	1600-2250mm

ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.

Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.

Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.

Welcome you to visit our website and contact us. We will give you quick response upon any of your need.
