Vehicle GPS tracker Without Any Monthly Charges Tracking Platform VT1000
(2 years warranty, Free Tracking Platfrom (web base & Android),CE & RoHS & SGS certification)
Products Overview
VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes.
Application
* For vehicle tracking and security
* Intelligent fleet management
* Two way communication
* Camera monitoring
* Anti jamming
* 3G
Specification
| Technical Parameters: |
| Power Supply | +9V - +35V / 1.5A |
| Backup Battery | 850mAh |
| Dimension | 104mm x 62mm x 24mm |
| Installation Dimension | 104mm x 83mm x 24mm |
| Weight | 150g |
| Operating temperature | -20° to 65° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | 850/900/1800/1900Mhz |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status. |
| Flash Memory | 4MB |
| Interface | 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs. |
| Packing Measures: | |
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x55 | 0.65 | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |
Feature
| Support 3G network | Fuel stolen alarm |
| GPS tracker + RFID car alarm | Harsh braking / acceleration alarm |
| GSM jamming detection, anti jamming | With 850mAh inbuilt rechargeable battery |
| Ublox7 GPS industrial high sensitive module | Two way tracking, GPS/intelligent GSM positioning |
| OTA (Update software over the air firmware by SMS) | Powerful and multifunctional tracker for comprehensive Fleet management |
| Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area | Get real time vehicle position address street name /Google map link by SMS |
| SD card data logger (Optional) | Crash sensor for accident alarm (Optional) |
| Max 4 fuel sensors, monitor petrol level (Optional) | OBD2 connector to read DTC data from ECU car computer (Optional) |
| Max 4 cameras, Photo logger function with location & driving information (Optional) | Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function (Optional) |
| Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc | cut off engine remotely ,unlock lock vehicle door |

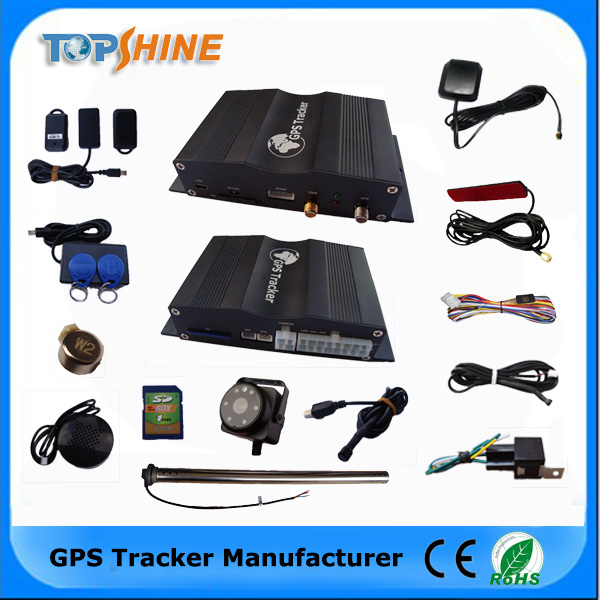

Package & Accessories
* Camera
* Fuel sensor
* Temperature sensor
* Passive RFID kit
* SD card
* Crash sensor
* Smart phone reader
* OBDII
* Door sensor
* Alcohol Sensor
* Speed Limiter Welcome to test our free tracking software
PC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
Our advantage
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.

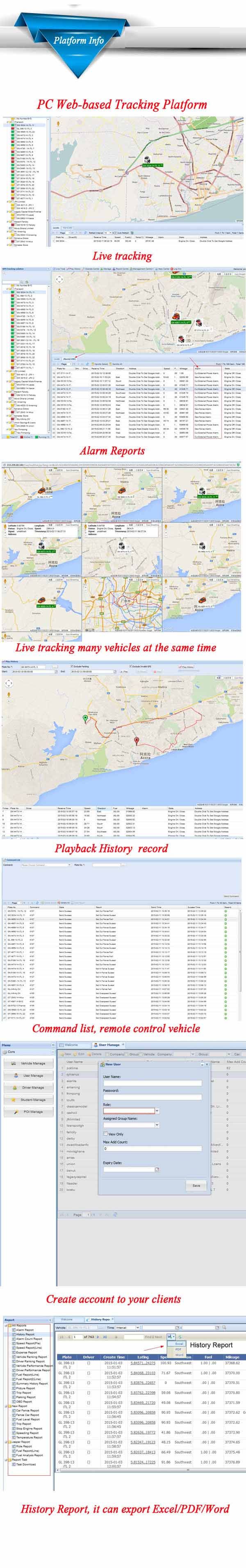

GPS tracking platform information
Inquiry Now!!
Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.
Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.
With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.
TOPSHINE provides a proprietary system to help clients manage their fleet and asset.
Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of
Vehicles to transport their goods or clients with valuable moveable assets, to monitor
Their assets thus minimizing the risks associated with their investments, increasing
Efficiency and productivity, and minimizing logistics and manpower costs. Real-time
Information can help with effective decision making, thus improving your company's
Performance and reducing overall costs.
We currently serve over 100 major customers and our clients come from various
Industries with unique demands or operational requirements. We can customise our
System to cater to our client's needs. In our ever-growing network of connected
Devices, our fleet can be monitored from anywhere with our mobile applications. Our
Services cover Hong Kong, China and cross border fleets.
Professional Consulting Services
With years of service experience, we have built up a good reputation and a strong
Professional team to provide strategic solutions and technical advice in fleet
Management. We work closely with all our clients to define their problems and
Expectations and tailor the best solution to solve their fleet management problems.
Our role is more than a technology provider who is assisting you to drive your
Business to be more profitable and competitive.
Customer Integration Services
Our team will support you as you work to integrate the GPRS01 system into your
Operations. We provide complete servicing from the installation to the maintenance of
Each tracking unit. A member of our customer support team will help coordinate the
Times and location for unit installation and demo/training times at your convenience,
While you, our client, can concentrate on managing your business.
On-Site Training Services
Once we have installed our units in your fleets, a training session will be arranged to
Familiarize all necessary parties with the software. We also provide a customer service
Help desk to assist you should you have any further questions. Our strong customer
Service team will ensure you understand the system and can put it to good use.
Customer Care Services
Customer satisfaction is a critical element for us. We care about our clients' needs,
Ideas and opinions. We make sure our products and services satisfy or exceed our
Client's expectations.
