GPS Car Tracker with Worldwide Tracking Platform Without Any Monthly Charges VT1000Maoming Topshine Electronic Technology Co.,Ltd is specialize in R&D innovation manufacturing superior GPS products in terms of GPS Personal Tracker, GPS Vehicle Tracker, GPS Tracking System and Integrated GPS Tracking Solutions. Ge
Gneral Description
VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera(location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes.
Application
*Vehicle Real Time Tracking
*Car Security/Anti-Hijack
*Fleet management
product function
OTA function
GPS tracker + RFID car alarm Support max 64G SD card store Two way communication Oil leaking/Refuel alarm Support active RFID & passive RFID Full fleet manage Support max 4 fuel sensor manage Unique RFID car alarm function Driver (student) ID identify Photo with location & driving information log function ARM9 high speed microcontroller Accident alarm (Option) Harsh braking and harsh acceleration alarm Check the car's real physical address (such as city name, Street name... (Needsupport of the SMS01 or GPRS01 center) Tracking via SMS or GPRS (TCP/UDP) Current location report Get actual address name via SMS or website Get position Google Map link via SMS Tracking by distance or time interval Data logger function with 4MB memory. Built-in motion sensor for power saving SOS panic button Geo-fencing control Internal backup battery Over-Speed alert Suddenly acceleration/brake alert Engine cut-off to stop the car in safe condition Monitoring voice (optional) Alert when VT1000 is power failure I/O: 5 digital inputs, 4 analog inputs, and 5 outputs Mileage report Monitor fuel consumption for Fleet management(optional) Monitor temperature (optional)SpecificationsItems Specifications
Power Supply+9V - +35V / 1.5A
Backup Battery850mAh
Dimension110mm x 80mm x 30mm
Installation Dimension110mm x 80mm x 30mm
Weigh 180g
Operating temperature -20° to 75° C
Humidity5% to 95% Non-condensing
FrequencyGSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS Chipsetlatest GPS SIRF-Star III chipset
GPS Sensitivity-158Db
GPS FrequencyL1, 1575.42 MHz
C/A Code1.023 MHz chip rate
Channels20 channel all-in-view tracking
Position Accuracy10 meters, 2D RMS
Velocity Accuracy 0.1 m/s
Time Accuracy1 us synchronized to GPS time
Default datumWGS-84
Reacquisition 0.1 sec., average
Hot start1 sec., average
Warm start 38 sec., average
Cold start42 sec., average
Altitude Limit18,000 meters (60,000 feet) max
Velocity Limit515 meters/second (1000 knots) max.
LED2 LED lights to show GPS/GSM working status. One SOS button
ButtonSOS

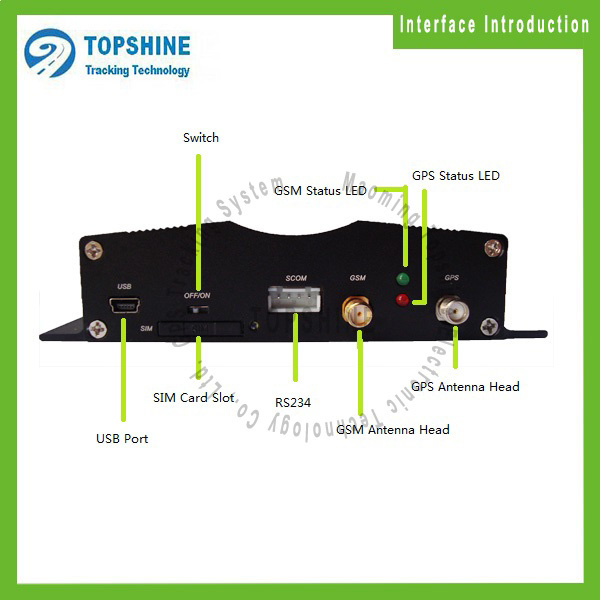

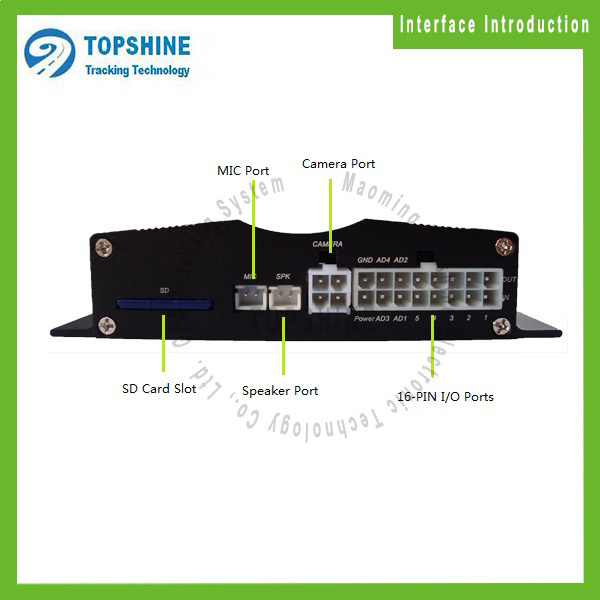

Interface5 inputs,5 outputs, 4 A/D ports, MIC & Speaker port, camera port, RS232 port, SD card slot
