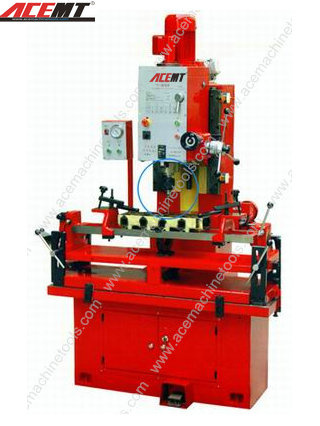

Valve Seat Boring Machine (T8590A/T8590B)

Name: Valve Seat Boring Machine (T8590A/T8590B)
Brand: ibuyautoparts.com
SKU: 774015105
Availability: InStock
Rating: 4.4 (131 reviews)

Price:	US $ 1-7000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Product Description
It is an extremely reliable machine whose design to repair various type of engines valve seats ring. Adopted rectangular guideway with high rigidity. Machine head can be moved up and down automatically, easy adjustment and simple operation. Equipped a guide shaft with corresponding size, the machine can repair the valve seats ring with diameter 20-90mm and working conical angle 30°,45°or 60°, the air-floating worktable clamp the workpiece and freely move.The high precision universal boring bar is attached to ball joint which enables it to be used with inclinations in any direction. Movement is transmitted by a motor which operate with constant torque. These combined movements enable the tool to control the real axis of the valve guide and enable the boring is carried out with absolute precision.

Parameters
Model		T8590A	T8590B
Boring diameter		Φ20- Φ90 mm	Φ20- Φ90 mm
Spindle speed range		55, 85, 210, 320, 370, 550 rpm	30-550 rpm (Stepless)
Spindle travel		180 mm	180 mm
Distance from spindle axis to guideway surface		270 mm	270 mm
Max. distance from end of spindle to working table		750 mm	750 mm
Moving speed of machine head		512 mm/min	512 mm/min
Moving speed of machine head	Cross	120 mm	120 mm
	Longitudinally	860 mm	860 mm
Main motor power		1.1/0.85kw 1400/950 rpm	1.1/0.85kw 1400/950 rpm
Overall dimensions(L x W x H)		1300x800x 1930 mm	1300x800x 1930 mm
Packing dimensions(L x W x H)		1700x1100x 2000 mm	1700x1100x 2000 mm
N.W. / G.W.		1200/ 1400 kg	1200/ 1400 kg

Prod Model:	T8590A/T8590B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	T8590A/T8590b
Spindle Travel:	180mm
