| Prod Model: |
vag401 |
| Size: |
26cm*18.5cm*5.5cm |
| Weight: |
0.6kg |
| Performance: |
Perfect |
| Item Type: |
Code Reader and Scanner |
| Update: |
Update Via Official Website |
| After Sale: |
Professional Technical Support |
| Certification: |
CE |
| Update Method: |
by Internet |
| Tire Gauges Carry Way: |
Diagnostic Scanner |
| Type: |
Diagnostic Scanner |
| Tire Gauges Type: |
Diagnostic Scanner |
Product Description
Highlight:
Original:100% Original XTOOL VAG401 OBD2 Code Scanner
Language:English
Update:Free update on Official website
Warranty:3 Years Warranty
Support Car List:VW/AUDI/SEAT/SKODA(Year After 1996)
VAG401 is the higher version based on VAG5053 with powerful function. It can work on VW,AUDI,SEAT and SKODA. With its smart appearance and powerful function, it can be conveniently used and can be run detachedly without PC.
Product Features
* Natural ergonomic comfort curve design
* Easy-to-read large mono-color screen
* Easy-to-operate large buttons
* Works with Volkswagen and Audi (Audi/ Seat/ Skoda/ Jetta/ Golf / Beetle/ Touareg/ GTI/ Passat and more) since 1990
* Reads and erases Diagnostic Trouble Codes (DTCs) of engine, ABS, Airbags,Transmission, Radio, Climate Control (A/C), Central Electrics, Steering Wheel, Instruments, Immobilizer, etc. (over 60 Systems on VAG range ONLY)
* Reads and clears generic trouble codes - KWP-1281 ,KWP-2000(ISO 14230), TP2.0 CAN
* Turns off Engine Warning Light, Airbags, ABS , A/T and other systems on VAG. (only engine system faults in non VAG cars)
* C.A.N.(Controller Area Network) capability
* Super fast One-Click solution of oil reset in VAG up to 2011
* Retrieves vehicle information (VIN)
* Displays I/M Readiness Status
* Displays DTC definitions on unit screen
* Full function support, including coding and adaptation
* Full system support
Supported systems
Functions:
* Retrieve controller information
* Read DTC
* Clear DTC
* View live data
* Actuation test
* System basic adjustment
* Adaptation
* Coding
* I/M Readiness
Special Function--Oil reset(may not support for some models)
Special Function--Srs reset(may not support for some models)
Specification
*Display: Backlit, 160 x 160 pixel mono-color screen with contrast adjustment
*Operation Temperature: 0 ~ 50°C (32~122F°)
*Storage Temperature: -20 ~ 70°C (-4~158F°)
*Relative Humidity: < 90%
*External Power: 8~18 Volts via DLC
*Power Consumption: 3W
*Mainframe Dimension: 225mm(L) x 98mm(W) x 36mm(H)
*Exterior Memory: TF Card

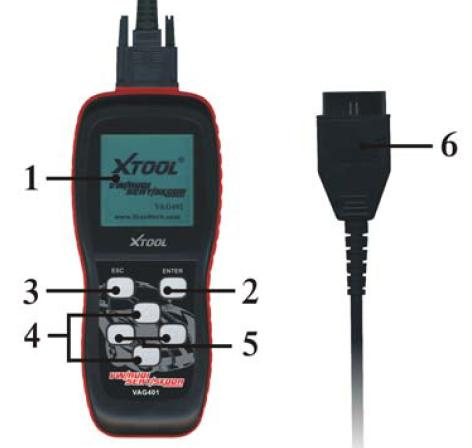

1. LCD screen: 160*160
2. Enter key: confirm selection and enter
3. Esc key: go back to the previous screens
4. up/down arrows: moves the selection pointer and scrolls up or down
5. LEFT/RIGHT arrows: move cursor.
6. Diagnostic extension cable: OBDII -16PIN
Package list:
1pc x VAG401 Main Unit
1pc x OBD 16Pin Cable
1pc x USB Cable
1pc x User Manual

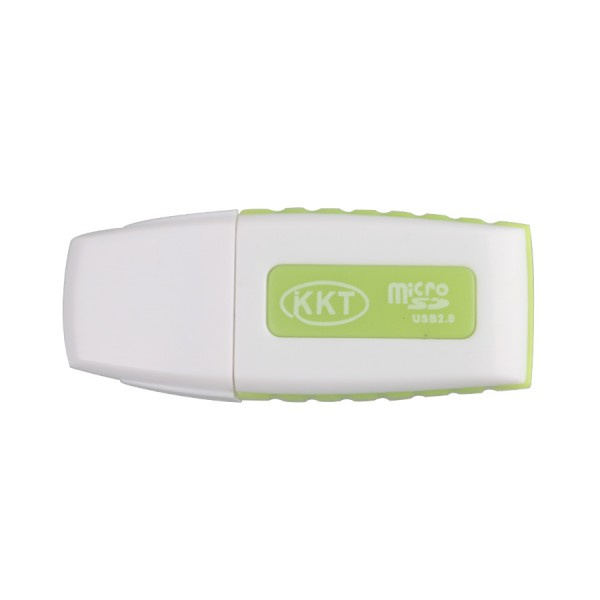

1pc x Reader
