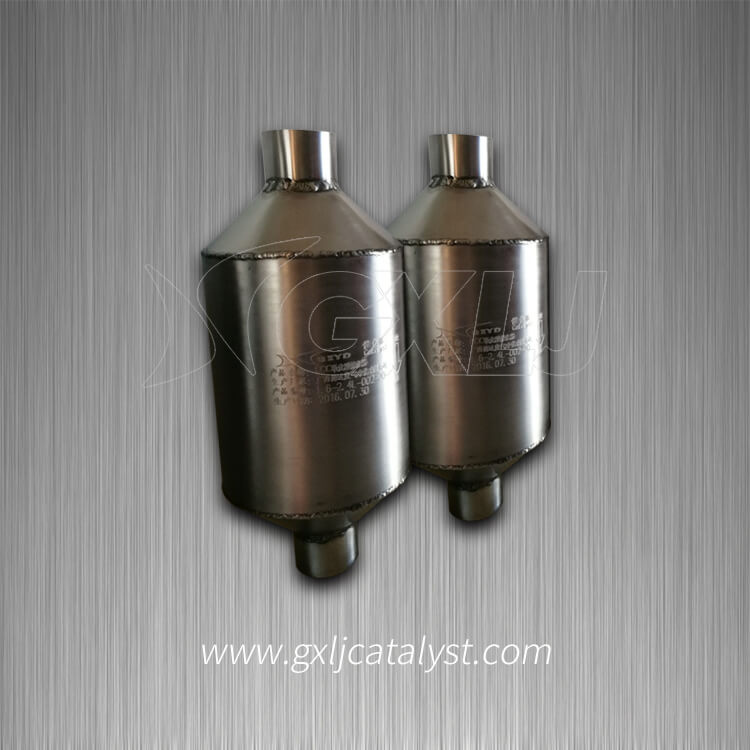

Universal Thunderbolt Catalytic Converter High Flow Stainless Cat

Name: Universal Thunderbolt Catalytic Converter High Flow Stainless Cat
Brand: ibuyautoparts.com
SKU: 724992182
Availability: InStock
Rating: 4.5 (45 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Universal Catalytic Converter High Flow Cat Stainless Steel

The three-way catalytic converter can eliminate 90% amount of the three main pollutants ( HC, CO and NOx). It is suitable for manifold, close-coupled or under-chassis applications.

How does catalytic converter work
In a catalytic converter, the catalyst (in the form of platinum and palladium) is coated onto a ceramic honeycomb or ceramic beads that are housed in a muffler-like package attached to the exhaust pipe. The catalyst helps to convert carbon monoxide into carbon dioxide(CO to CO2 ). It converts the hydrocarbons into carbon dioxide(CO2 ) and water. It also converts the nitrogen oxides back into nitrogen and oxygen.

Substrate: Ceramic honeycomb substrate or metal honeycomb substrate.
Catalytic Supporter:Rare-earth oxygen-storage material.
Catalytic Promoter: CeO2, ZrO2, La2O3 and so on.
Active Components: Pt, Pd, Rh and so on.
Shell Material: 409 or 304 stainless steel.
Emission standard: Meet Euro 2, 3, 4, 5, EPA and CARB.
Working Principle:
1. Oxidation of carbon monoxide (CO) to carbon dioxide
2CO+ O2 → 2CO2
2. Oxidation of un-burnt hydrocarbons (HC) to carbon dioxide and water
2CxHy + (2x+y/2)O2 → 2xCO2 + yH2O
3. Reduction of nitrogen oxides (NOx) to nitrogen and oxygen
2NOx → xO2 + N2

Prod Model:	GXLJ
Substrate:	Ceramic and Metal
Catalytic Supporter:	Rare-Earth Oxygen-Storage Material
Catalytic Promoter:	CEO2, Zro2, La2o3 and So on
Shell Material:	409 or 304 Stainless Steel
Cpsi:	100-600
Body Material:	Steel
Discharge Standard:	Euro V
Certification:	TS16949
Component:	Catalytic Converter

General Description

Our cost-effective solutions to tighter emissions standards, Guangxi Huihuang Langjie environmental &Tech. Co., Ltd, specializing in the development and manufacture of exhaust emissions catalytic converter/catalyst solutions for all applications.

Since 2001, GXLJ has integrated complete product design, testing and manufacturing. Today, GXLJ is a premier supplier and manufacturer of high performance catalytic converters and substrates for diesel and gas fueled engines, with shorter lead times, greater quality control and superior service - all at greatly reduced cost.

GXLJ Catalytic Converter

Advantage

Our integrated approach and superior product quality allows us to provide highly customized solutions to manufacturers around the world. At GXLJ, we are dedicated to meeting and exceeding customer needs and requirements. Our staff is continually trained to stay current with cutting-edge developments in the field, for ongoing product improvement.

By controlling the design and manufacturing process, GXLJ is able to ensure strict quality control, by adhering to our TS16949 certification. Share your goals and business challenges with us. We will ask questions, listen, and respond to create solutions that fit like they were made for you - because they are.

GXLJ Catalyst for Exhaust emissions

Advantage

GXLJ specializes in the manufacture of high performance catalytic converters and metal/ceramic substrates. The cores offer a significant advantage, being more economical and less restrictive, while maintaining high durability.

With our cores you'll also experience additional advantages:

1. They are more cost effective in larger diameters

2. They have a quicker "light off"

3. The metallic cores experience 15%-30% less pressure drop than a ceramic of the same size and cell density

4. They provide more cost effective canning methods

5. Reduction of overall size of packaging

6. Can be produced to weld directly in exhaust system

7. They have higher thermal shock resistance

Welcome to consult us!
