Cordierite Honeycomb Ceramic Monolith Substrate Core for Petrol Catalytic Converter
| Price: |
US $ 5-17/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
LJFZ000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fitment: |
Fit for Catalytic Converter for Diesel Engine or P |
| Emission Standard: |
Universal Fit ,Without Coating Catalyst |
| Core Shape: |
Round, Ellipse, Racetrack,Triangular or Abnormity |
| Core Material: |
Cordierite |
| Size: |
Customized According to Customers' Requirements |
| Cell Density: |
100cpsi,200cpsi,300 Cpsi , 400 Cpsi,600 Cpsi (C |
| Wall Thickness: |
0.15-0.3mm |
| Water Absorption: |
23-27% |
| Soften Temperature: |
>=1400 Degree Celsius |
| Series: |
Ceramic Parts |
| Discharge Standard: |
Euro V |
| Certification: |
CCC |
| Type: |
Honeycomb Ceramic Substrate |
| Body Material: |
Cordierite |
| Component: |
Core of Catalytic Converter |
| Main Market: |
North America ,European |
Product Description

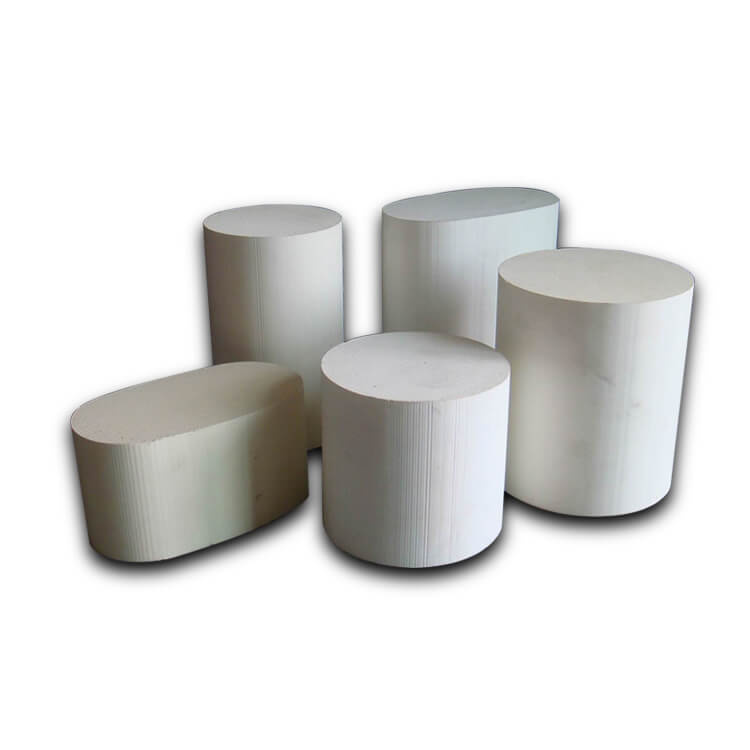

Honeycomb ceramic substrate is a new kind of catalyst carrier, which is widely used in automobile emissions purifying system and industrial exhaust gas treatment system.After coating with catalysts, this product is applied in catalytic converter of diesel or gasoline vehicle to catalyze , convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. We also supply Catalytic Converter, Catalytic muffler, Motorcycle catalytic converter, DOC Catalyst, SCR catalyst ,Ceramic honeycomb monolith , Metal honeycomb carrier, ect. Our management system has been certified the ISO9001 and TS16949 by SGS company. We can supply both ceramic element coated with noble metals of Pt,Pd,Rh and ceramic element without noble metalsAdvantage of Honeycomb Ceramic Substrate- Thin wall, high Surface area.
- Low coefficient of thermal expansion.
- Low back pressure, good air flow.
- Good thermal shock resistance and heat resistance.
- High temperature resistance and chemical corrosion resistance.
- High compressive strength and stable water absorption rate.
- Accurate size control,good for encapsulation.
- Low light off temperature and high conversion efficiency.
- Ideal matching with different catalysts.
Physical & Chemical Properties of Honeycomb Ceramic Substrate | Items | Index |
| Chemical Composition | SiO2 | 50.9±1% |
| Al2O3 | 35.2±1% |
| MgO | 13.9±1% |
| Cordierite Crystal Phase | ≥90% |
| Wall Thickness | 100 CPSI | 0.42-0.48mm |
| 200 CPSI | 0.32-0.38mm |
| 300 CPSI | 0.25-0.31mm |
| 400 CPSI | 0.17-0.20mm |
| 600 CPSI | 0.12-0.15mm |
| Compression Strength | Lengthways | ≥15MPa |
| Horizontal | ≥3 MPa |
| Coefficient of Thermal Expansion(20-800ºC) | ≤ 1.2x10-6/ºC |
| Water Absorption | 23-27% |
| Soften Temperature | ≥1400 ºC |
| Refractory | ≥1600ºC |
| Thermal Shock Resistance(Indoor Temperature-550ºC) | 550ºC Three time (Air cool) |
| Tolerance of Outside Dimensions | ±1% |
| Bulk Density | 0.40-0.50Kg/L |
Specification | 100 CPSI-600 CPSI Round Products |
| Regular Diameter Size | Regular Height Size |
| Φ76.2 mm(3 inch ) | 2 inch,4 inch |
| Φ80 mm(3.15 inch ) | 2 inch,2.36 inch,3.74 inch |
| Φ83 mm(3.27 inch ) | 2.36 inch,3.15 inch,3.35 inch,3.94 inch,4 inch,4.53 inch,5 inch |
| Φ87 mm(3.43 inch ) | 2.36 inch |
| Φ88 mm(3.46 inch ) | 3.35 inch,6.7 inch |
| Φ92 mm(3.62 inch ) | 3.54 inch |
| Φ93 mm(3.66 inch ) | 2.36 inch,2.95 inch,3 inch,3.35 inch,3.48 inch,3.94 inch,4 inch,4.33 inch, 4.65 inch, 5.12 inch,6 inch,6.7 inch |
| Φ97 mm(3.82 inch ) | 3.5 inch,4.5 inch ,6.7 inch |
| Φ101.6 mm(4 inch ) | 2 inch,3 inch,3.54 inch ,3.94 inch, 4.86 inch,6 inch |
| Φ103 mm(4.06 inch ) | 5.12 inch |
| Φ105.7 mm(4.16 inch ) | 5.12 inch,5.81 inch,6 inch |
| Φ106.1 mm(4.18 inch ) | 3.95 inch,6 inch |
| Φ107.1 mm(4.22 inch ) | 3.15 inch,3.95 inch,5.12 inch |
| Φ110 mm(4.33 inch ) | 3.15 inch,5.12 inch,6.5 inch |
| Φ118.4mm(4.67 inch ) | 2 inch,2.17 inch,2.36 inch,2.95 inch,3.74 inch,3.94 inch,4.5 inch,4.67 inch,4.72 inch,5 inch,5.51 inch ,6 inch |
| Φ132.1 mm(5.2 inch ) | 3.94 inch |
| Φ144 mm (5.67 inch ) | 2.95 inch,4 inch,5 inch,5.91 inch,6 inch,7 inch, |
| Φ150 mm(5.91 inch ) | 2.6 inch, 3.94 inch,5.91 inch,6 inch |
| Φ170 mm (6.7 inch ) | 2 inch,2.76 inch,3.94 inch |
| Φ180 mm(7.09 inch ) | 2.36 inch,2.76mm ,3.94 inch,4 inch,5 inch,5.91 inch, 6 inch |
| Φ190.5 mm (7.5 inch ) | 3.94 inch,4 inch,5 inch,5.91 inch,6 inch |
Remark: customized specification can be allowed . | 100 CPSI-600 CPSI Race Track and Oval Products |
| Regular Series | Regular Size |
| 80 mm (3.15 inch ) | 80x57x108mm (3.15x2.24x4.25 inch) |
| 95 mm (3.15 inch ) | 95x115x132mm (3.74x4.53x5.2 inch) |
| 99.5 mm (3.92 inch ) | 99.5x68x120mm (3.92x2.68x4.72 inch) |
| 99.8 mm(3.93 inch ) | 99.8x68.1x120.6mm(3.93x2.68x4.75 inch) |
| 112 mm(4.4 inch ) | 112x60x90 mm(4.4x2.36x3.54 inch) |
| 114 mm(4.49 inch ) | 114x105x105mm (4.49x4.13x4.13 inch) |
| 120.6 mm(4.75 inch ) | 120.6 x 80x 50 mm (4.75x3.15x1.97 inch) |
| 120.6x 80 x 76 mm(4.75x 3.15x 3 inch) |
| 120.6 x 80x 100 mm (4.75x3.15x3.94 inch) |
| 120.6x 80 x 120 mm(4.75x 3.15x 4.73 inch) |
| 120.6 x 80x 125 mm (4.75x3.15x 4.92 inch) |
| 120.6x 80 x 140 mm(4.75x 3.15x 5.51 inch) |
| 120.6 x 80x 152.4 mm (4.75x3.15x 6 inch) |
| 125.3 mm(4.93 inch ) | 125.3x 80.2x 101.6 mm(4.4x 2.36x 3.54 inch) |
| 125.3x 80.2x 152.4 mm(4.4x 2.36x 3.54 inch) |
| 127 mm(5 inch ) | 127x 63.5x107mm(5x2.5x4.21 inch) |
| 144 mm(5.67 inch ) | 144x 68x 125 mm(5.67x 2.68x 4.92 inch) |
| 144.3 mm(5.68 inch ) | 144.3x 68.1x45mm (5.68x 4.13 x 1.77 inch) |
| 144.3x 68.1x125mm( 5.68x 4.13 x 4.92 inch) |
| 144.3x 68.1x152.4mm (5.68x 4.13 x 6 inch) |
| 144.8 mm (5.7 inch) | 144.8x 81.3x 50mm (5.7x 3.2 x 1.97 inch) |
| 144.8x 81.3x 76mm (5.7x 3.2 x 3 inch) |
| 144.8x 81.3x152.4mm (5.7x 3.2 x 6 inch) |
| 146 mm (5.75 inch) | 146x 77x152.4mm (5.75x 3.03 x 6 inch) |
| 147 mm (5.79 inch) | 147x 84x125mm (5.79x 3.3 x 4.92 inch) |
| 147x 95x 50mm (5.79x 3.74 x 1.97 inch) |
| 147x 95x120mm (5.76x 3.74 x 4.73 inch) |
| 147x 95x140mm (5.76x 3.74 x 5.51 inch) |
| 147x 95x152.4mm (5.76x 3.74 x 6 inch) |
| 148 mm (5.83 inch) | 148x 84x 76mm (4.49x 4.13 x 4.25 inch) |
| 148x 84x 96mm (4.49x 4.13 x 4.26 inch) |
| 148x 84x115mm (4.49x 4.13 x 4.27 inch) |
| 148x 84x125mm (4.49x 4.13 x 4.28 inch) |
| 148x 84x140mm (4.49x 4.13 x 4.29 inch) |
| 148x 84x152.4mm (4.49x 4.13 x 4.30 inch) |
| 152.4 mm(6 inch) | 152.4x 84x125mm (6x 4.13 x 4.28 inch) |
| 169.7 mm(6.68 inch) | 169.7x 80.8x110mm (6.68x 3.2 x 4.33 inch) |
| 169.7x 80.8x115mm (6.68x 3.2 x 4.53 inch) |
| 169.7x 80.8x127mm (6.68x 4.13 x 5 inch) |
| 169.7x 80.8x152.4mm (6.68x 4.13 x 6 inch) |
Add us to your favorite sellers list & recommend our store to your friends and family!
Don't forget to regularly pass-by as we are constantly adding new products, special offers and unbeatable deals to our listings!
General Description
Our cost-effective solutions to tighter emissions standards, Guangxi Huihuang Langjie environmental &Tech. Co., Ltd, specializing in the development and manufacture of exhaust emissions catalytic converter/catalyst solutions for all applications.
Since 2001, GXLJ has integrated complete product design, testing and manufacturing. Today, GXLJ is a premier supplier and manufacturer of high performance catalytic converters and substrates for diesel and gas fueled engines, with shorter lead times, greater quality control and superior service - all at greatly reduced cost.
GXLJ Catalytic Converter
Advantage
Our integrated approach and superior product quality allows us to provide highly customized solutions to manufacturers around the world. At GXLJ, we are dedicated to meeting and exceeding customer needs and requirements. Our staff is continually trained to stay current with cutting-edge developments in the field, for ongoing product improvement.
By controlling the design and manufacturing process, GXLJ is able to ensure strict quality control, by adhering to our TS16949 certification. Share your goals and business challenges with us. We will ask questions, listen, and respond to create solutions that fit like they were made for you - because they are.
GXLJ Catalyst for Exhaust emissions
Advantage
GXLJ specializes in the manufacture of high performance catalytic converters and metal/ceramic substrates. The cores offer a significant advantage, being more economical and less restrictive, while maintaining high durability.
With our cores you'll also experience additional advantages:
1. They are more cost effective in larger diameters
2. They have a quicker "light off"
3. The metallic cores experience 15%-30% less pressure drop than a ceramic of the same size and cell density
4. They provide more cost effective canning methods
5. Reduction of overall size of packaging
6. Can be produced to weld directly in exhaust system
7. They have higher thermal shock resistance
