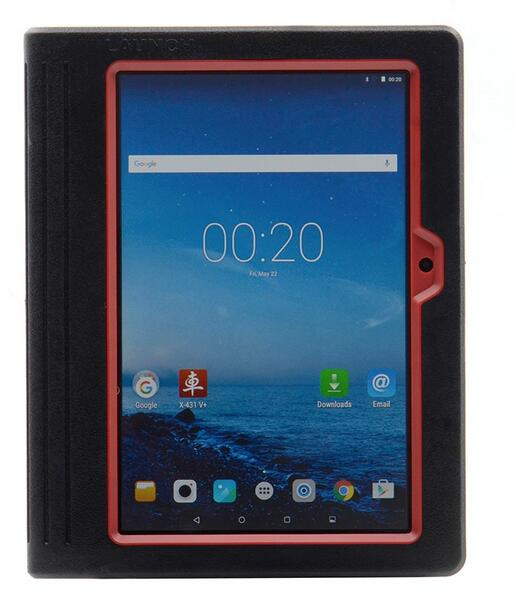

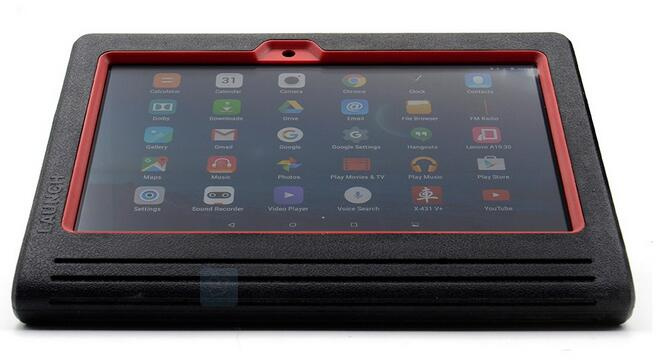

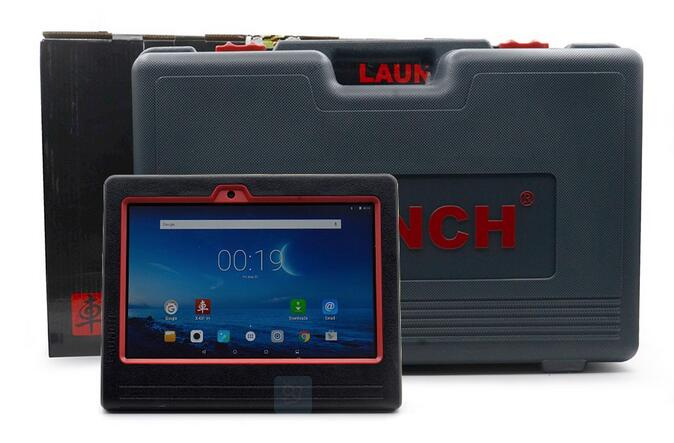

Universal car scanner/car diagnostic tool
Model:Launch X431 V+What are the advantanges of X431 V+?
1. HUAWEI HiSilicon Quod-core 1.2G HZ, speed faster.
2. 1GB memory and 8GB storage for data.
3. Contain 72 car brand from USA, European, Asia and so on.
4. Support wifi/bluetooth and one click update, make your update job much easier.
5. 6600mAh Li battery can let you continue work 8 hours.
6. HUAWEI HiSilicon Quod-core 1.2G HZ, speed faster.
7. Original goods with full time technical service and guarantee.
8. 10.1 inch multi touch capacitor screen give you better view for diagnose and data stream.
X-431 V+ Description:
X-431 V+ is taking the advantage of mobile internet, can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circle,etc.,thus lead to wide car diagnostic community.
It is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application.
X-431 V+ Product Features:
Panel PC: High configuration of hardware , fast running speed
Capacitor Screen: Multi-touch capacitor screen, more smooth operation
WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth
Portable: Reasonable PDA design, small size for easy carry
Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier
Wifi communication: Support WIFI network
Android System: Users can install and Android software
Numerous Additional Functions: Photo, video, multimedia, other software application,etc.
X-431 V+ Product Parameters:
Pannel Computer Parameters:
CPU: HUAWEI HiSilicon Quod-core 1.2G HZ
Screen:10.1 inch Multi touch capacitor Screen
Screen Resolution:1280X800
Operation system:Android4.0
Memory:1G
Storage:8GB
Battery:Polymer Lithium-ion battery, 6600mAh
Camera :0.3M pixels front , rear 3.2M pixels
Operating Temperature :0°C~+45°C
Storage Temperature :-10°C~+45°C
DBSCar Connector Parameters:
Connection: Standard OBDII Interface, Micro USB 2.0
Typical Power Consumption:(12V)Static current 25 mA,
overall unit average current 35 mA
Working Temperature: - 20 °C~6 0°C
Storage Temperature: -30°C~70°C
Working Voltage: powered by vehicle battery, DC 9V-15V

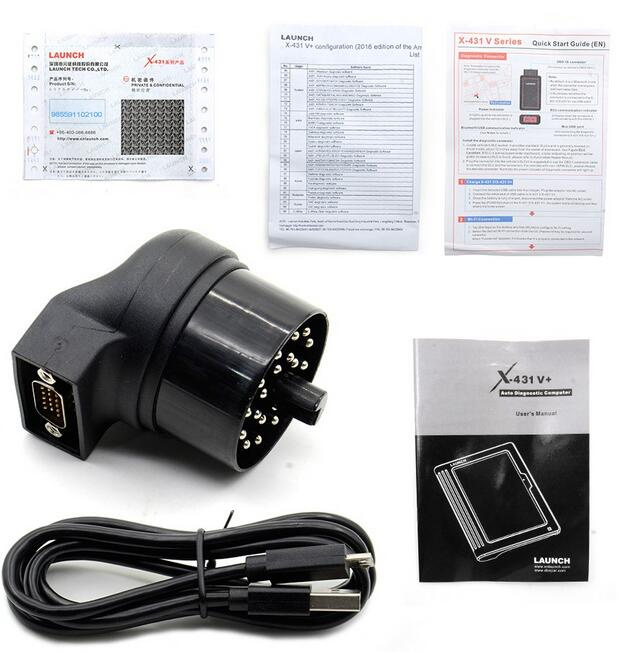

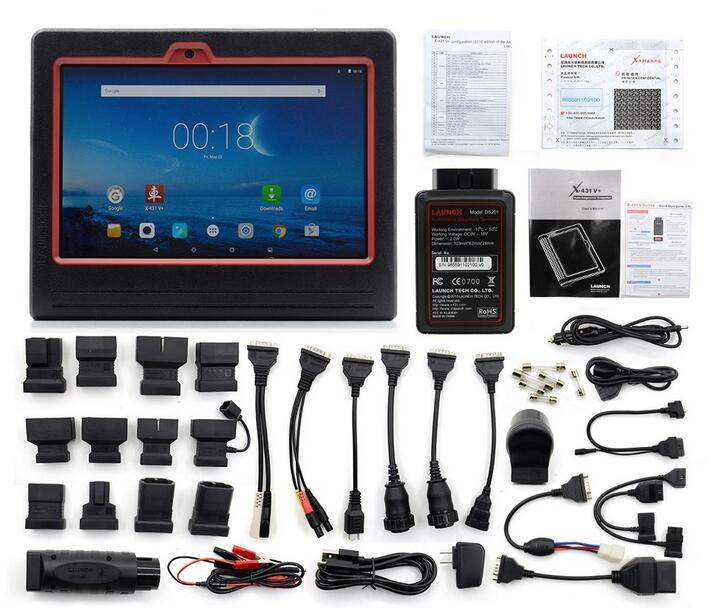

Package List:
Main Unit:
1pc x X431 V+ American host, RoHS
Connectors:
1pc x Android edition diagnostic connector (10 meters Bluetooth)
1pc x BENZ-38 diagnostic connector
1pc x DAEWOO-12 diagnostic connector integrated
1pc x AUDI-4 diagnostic connector linear
1pc x BENZ-14 diagnostic connector linear
1pc x B-MW-20 diagnostic connector integrated
1pc x CHRYSLER-6 diagnostic connector integrated
1pc x DAIHATSU-4 diagnostic connector linear
1pc x FI-AT-3 diagnostic connector linear
1pc x FORD-6+1 diagnostic connector integrated
1pc x GAZ diagnostic connector linear
1pc x GEELY-22 diagnostic connector integrated
1pc x G-M/VAZ-12 diagnostic connector integrated
1pc x HON-DA-3 diagnostic connector integrated
1pc x KIA-20 diagnostic connector integrated
1pc x MAZ-DA-17 diagnostic connector integrated
1pc x MIT-SUBISHI/HYUN-DAI-12+16 diagnostic connector
1pc x NISSAN-14+16 diagnostic connector
1pc x SSANGYONG-14 diagnostic connector linear
1pc x SSANGYONG-20 diagnostic connector integrated
1pc x SU-BARU-9 diagnostic connector integrated
1pc x SU-ZUKI-3 diagnostic connector linear
1pc x TO-YOTA-17 diagnostic connector integrated
1pc x TO-YOTA-22 diagnostic connector integrated
1pc x UNIVERSAL-3 diagnostic connector linear
Test Cable:
1pc x OBDII -16 extension 135mm, RoHS
1pc x OBD I Adaptor BOX switch wiring
1pc x LIGHTER
1pc x CLIPPER
Accessories:
1pc x MicroSD card, SanDisk 32G capacity, RoHS
1pc x X431 PIN envelope
4pcs x Clipper fuse 5*20mm
2pcs x Lighter fuse 6*30mm
