Specification Part one: X431 v+ for petrol car| Main function | Auto Diagnostic tool |
| Model | LAUNCH X431 V+ |
| Language | Multi-language
English, Spanish, Arabic, French, Korean, Japanese, German, Russian etc. |
| Software | Update Official Website |
| Diagnosis Connection | Via WIFI or Bluetooth |
| CPU | HUAWEI HiSilicon Quod-core 1.4G HZ |
| Battery | Polymer Lithium-ion battery, 7000mAh |
| Standby time | keep working for 8 hours |
| Memory | 1G |
| Storage capacity | 16GB |
| LCD resolution | 1280X800 |
| Screen | 10.1 inch Multi touch capacitor Screen |
| Cameras | 0.3M pixels front , rear 3.2M pixels |
| Working temperature | 0°C~+45°C |
| Storage temperature | -10°C~+45°C |
| Numerous Additional Functions | Photo, video, multimedia, other software application,etc. |
| Net weight | 4.8 Kg |
| Operating System | Android7.1 |
| DBSCar Connector Parameters: | |
| Working Voltage | powered by vehicle battery, DC 9V-15V |
| Average working current | about 35mA |
| Standby current | about 25mA |
| Working temperature | - 20 °C~6 0°C |
| Storage temperature | -30 to 70°C (-22°F to 158°F) |
| Storage humidity | <80% |
| Working humidity | <60% |
| Connection | Standard OBDII Interface, Micro USB 2.0 |

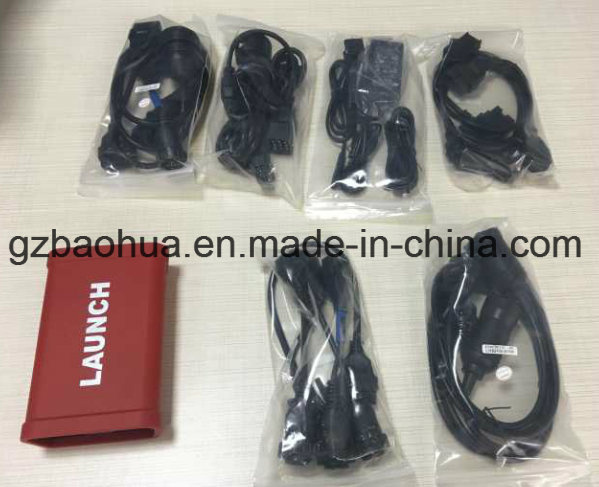

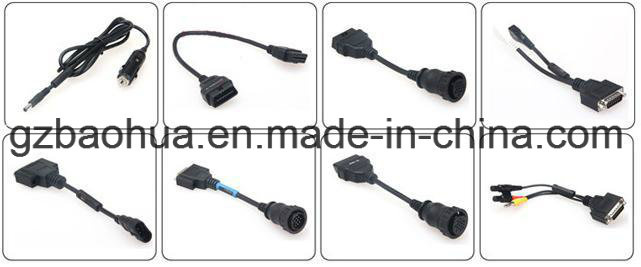

Connectors:1pc x Android edition diagnostic connector (10 meter Bluetooth)1pc x BENZ-38 diagnostic connector1pc x DAEWOO-12 diagnostic connector integrated1pc x AUDI-4 diagnostic connector linear1pc x BENZ-14 diagnostic connector linear1pc x BMW-20 diagnostic connector integrated1pc x CHRYSLER-6 diagnostic connector integrated1pc x DAIHATSU-4 diagnostic connector linear1pc x FIAT-3 diagnostic connector linear1pc x FORD-6+1 diagnostic connector integrated1pc x GAZ diagnostic connector linear1pc x GEELY-22 diagnostic connector integrated1pc x GM/VAZ-12 diagnostic connector integrated1pc x HONDA-3 diagnostic connector integrated1pc x KIA-20 diagnostic connector integrated1pc x MAZDA-17 diagnostic connector integrated1pc x MITSUBISHI/HYUNDAI-12+16 diagnostic connector1pc x NISSAN-14+16 diagnostic connector1pc x SSANGYONG-14 diagnostic connector linear1pc x SSANGYONG-20 diagnostic connector integrated1pc x SUBARU-9 diagnostic connector integrated1pc x SUZUKI-3 diagnostic connector linear1pc x TOYOTA-17 diagnostic connector integrated1pc x TOYOTA-22 diagnostic connector integrated1pc x UNIVERSAL-3 diagnostic connector linear
Supported Models1.Ben2.Volkswagen
3. holden
4. Audi
5. Skoda
6. Seat
7. Volvo
8. Citroen
9. Peugeot
10. Fiat
11. Opel
12 .Renault
13. Landrover
14. Porsche
15. Ford
16. Romeo
17. Lancia
18. Rover
19 .Saab
20 .Transporter&V-Class
21 .Toyota
22. Nissan
23. Honda
24. Mitsubishi
25. Mazda
26. Isuzu
27. Suzuki
28. Subaru
29. Daihatsu
30 .Daewoo
31. Hyundai
32. Kia
33. Ssangyong
34. Ford
35.GM
36.Chrysler
37. SMART
38.Cars with EOBDII & CAN-BUS system
Part two. HD Heavy Duty Truck Diagnostic Module for 24V Diesel carsheavy-duty12V & 24V voltage Vehicle
X-431 V+ heavy-duty is a new Android-based vehicle trouble diagnostic device based on android OS. Through the Bluetooth communication between vehicle diagnostic connector and variant mobile intelligent terminals, it achieves full car model and full system vehicle trouble diagnosis, which include Reading DTCs, Clearing DTCs, Reading Data Stream, Actuation Test and Special Functions. Note: This package supports heavy-duty truck only, can't do cars.X-431 V+ heavy-duty module is specifically designed to diagnose diesel and gas-fueled heavy-duty vehicle models of 12V & 24V voltage. Ports and indicator of heavy-duty truck module
Main Features:Unique LAUNCH cloud diagnosis technologySupport wired diagnosisSupport diagnosis for all car models of gasoline, diesel and natural gas engines that meetEuro III-Euro VI standardsIndustrial shockproof design, perfect for the working environment in repair shopsAdvanced modularization design technology, automatically switch between12V and24Vpower Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of all car models worldwide Multiple diagnostic devices available, such as X-431+, etc Software diagnostic platform:Read fault codeClear fault codeRead data streamActuation TestSpecial functionsRead freeze frameECU program
