Underground Dump Truck Wheel (29-25.00/3.5) for Cat Ad45

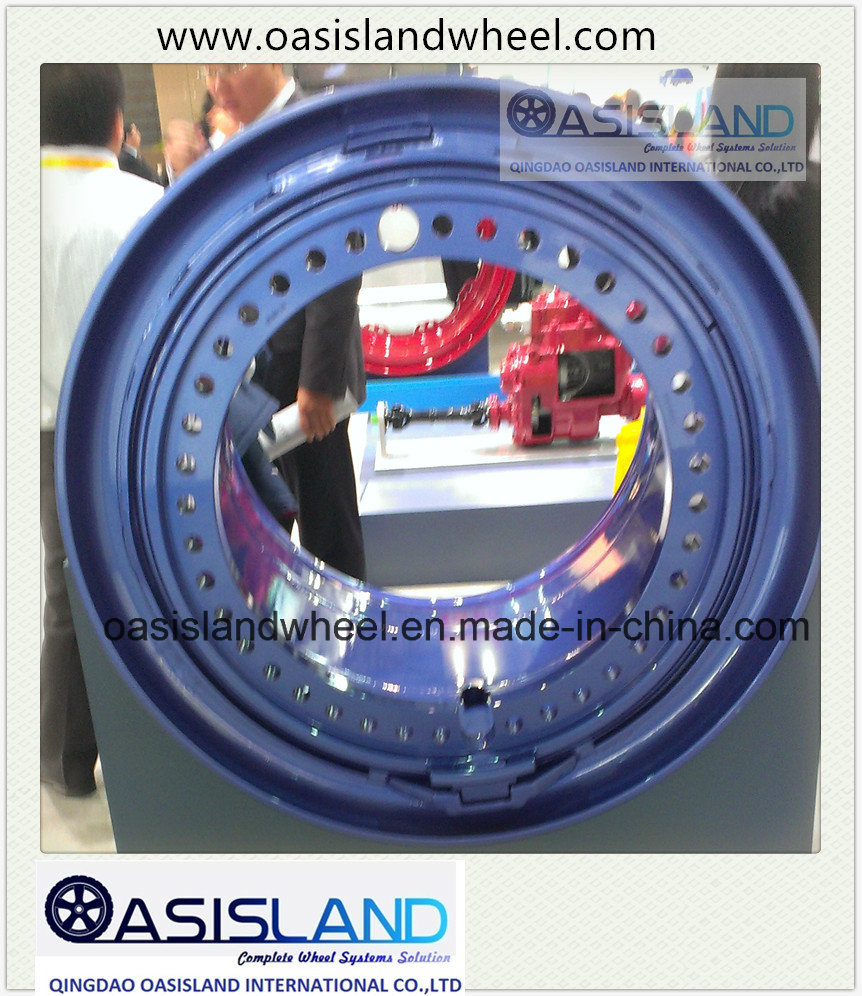

Name: Underground Dump Truck Wheel (29-25.00/3.5) for Cat Ad45
Brand: ibuyautoparts.com
SKU: 808931405
Availability: InStock
Rating: 4.7 (32 reviews)

Price:	US $ 2000-3000/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Wheel Rim (29-25.00/3.5) for Cat R2900

Application: CAT AD45
Fitted Tyre: 29.5R25 Tubeless
Type: 5piece Tubeless

To ensure product quality, the company established the ISO9001 quality system
configure the universal testing machine, air tightness testing machine, chemical detector and many other test equipment.
Product quality by customers.

Feature of our OTR Wheel
wheel for construction industries fully utilize high strength low alloy (HSLA) steel. Heat treatment formed material is used for critical components on multi piece wheel. Auto butt-welding is widely used on rim, ring and other circular parts;
All circumferential weld seams are inspected by nondestructive inspection to ensure zero defect.

Specification:

1. Multi Pieces: 5pieces
2. Fitted Tyre: 29.5-29 or 29.5r25
3. Type: Tubeless
4. ISO Certificate
5. OEM Service.
6. Color: RAL1028, RAL9006, RAL9007, etc.
Customized colors are available by request to meet your needs.

Wheel rim for below models:

CAT785 / CAT777 / CAT AD55 / CAT R2900 / CAT AD45 / CAT 980 / CAT972 / CAT966F
CAT950G / CAT930G / CAT914G / CAT140G
Any inquiry will be welcomed.

Rim Size	Recommemded Tire	Dimensions (mm)
Rim Size	Recommemded Tire	A	G	P	D	E	F
25-11.25/2.0	16.00R25	286	51	109	635	574	546
25-13.00/2.5	18.00R25	330	63.5	109	635	574	546
25-15.00/3.0	21.00R25	381	76	119	635	574	546
25-17.00/2.0	20.5R25		51	119	635	574	546
25-19.00/2.5	23.5R25	495	63.5	119	635	574	542
25-22.00/3.0	26.5R25	559	75	119	635	574	542
25-25.00/3.5	29.5R25	635	89	119	635	574	542
29-24.00/3.0	775/65R29	610	76	139	736.6	674	638
29-25.00/3.5	29.5R29	635	89	139	736.6	674	638
29-27.00/3.5	33.25R29	686	89	139	736.6	674	638
33-13.00/2.5	18.00R33	330	63.5	109	838.2	775	732
33-28.00/3.5	36/65R33	711	89	139	838.2	775	732
35-15.00/3.0	21.00R35	381	76	119	889	824	784
35-17.00/3.5	24.00R35	432	89	119	889	824	784

Prod Model:	29-25.00/3.5
Color:	Yellow
Machine Model:	Cat R2900, Cat Ad45
Material:	Steel
Type:	Rim
Drive Wheel:	4WD
Certification:	DOT
Wheel Hub Diameter:	29
Finishing:	Painting
Wheel Accessories:	O-Ring
Wheel Hub Brand:	Oasisland

Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials

All products we supply will be with quality and guarantee...

For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.

For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.

Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
