Underground Automotive Car Parking Elevator

Prod Model:	SJG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Load Capacity:	4000kg
Platform Size:	5000*2500mm
Drive:	Hydraulic
Lifting Height:	3000mm/Customized
Speed:	6m/Min
Type Of Work:	Special Weight Level
Height:	570mm
Structure:	Scissor Type
Control:	Button/Remote control
Warranty:	12 Months
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	4T
Certification:	CE
Design:	Scissor
Brand:	Moral

Product Description

Underground Automotive Car Parking Elevator

Technical Data:
 1. Power supply 220 VAC, 3 Phases 60 Hz/ local power
  2. Total capacity 4,000 kilograms
 3. Size of platform 5000 X 2500 mms. Diamond steel sheet metal
 4. Stops with limit switch control system

Main descriptions:
1.The hydraulic cylinders and hoses are armed with explosion-proof lock valve that aims to
avoid a sudden drop in case hydraulic pipe breaks, the work platform will drops slowly to
ensure car's safety .

2. The handrail guarantees the safety of cars.

3. Equipped with 4 guide rails to ensure safety and steady.

4. The limit switch system ensures lifts stop at accurate position.

5. Overload protection facility will protect the lift from working when goods are overloaded.

6. Electric control system is adopted from the elevator control system of Japan Mitsubishi that
ensures the safety of lift.

7. Guarantee period: 12 months. We supply spare parts free and supply technical supporting
all the time.

Applications:

It is droved by the electric and hydraulic system, the lift platform is lifted up and drops down along
the truck; It is installed in the pit or the ground floor to convey the goods from one working level to
another. The control panels are available at the designated floors and one the lift platforms.


Warranty:

12 months from delivery apart from artificial damage. Free lifelong technical service.


Safety feature:

200% static overload test passed

Dynamic lock: 17 locking position through all operation

Hydraulic safety lock prvent the possible damage by hose burst

Anti-slip cover plate protect both vehicle and driver from possible slip and damage

220v control provide extra safety to the operator to avoid any electric shock

Parameters:


Model	SJG4-3
Lifting capacity	4000kg
Lifting height	3000mm
Platform size	5000 X 2500 mms. ( Diamond steel sheet metal )
Motor power	5.5kw
Power supply	AC 220V/380V  50HZ/60HZ
Speed	100mm/s
Weight	1850KG

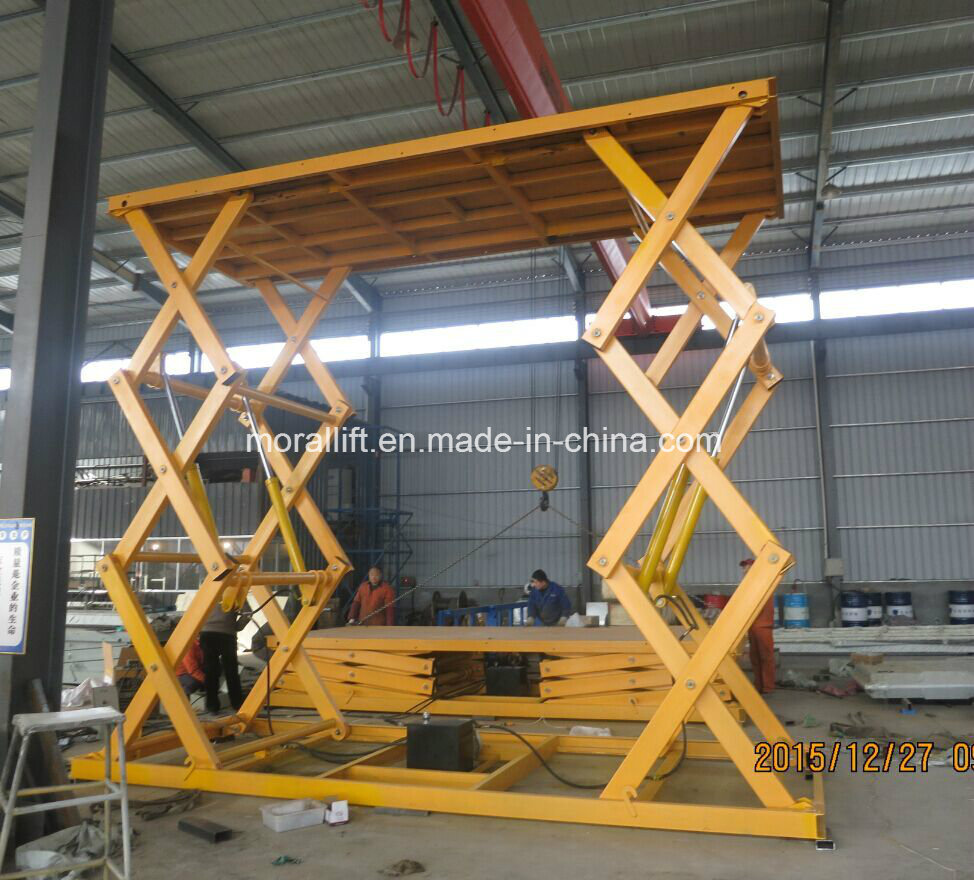

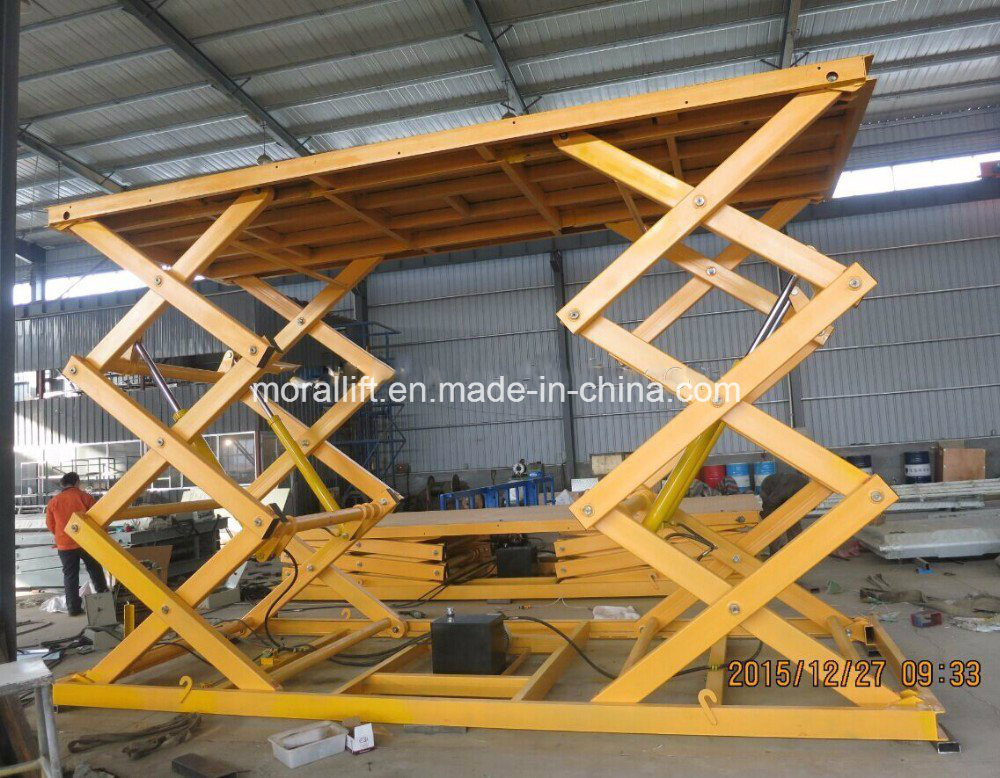

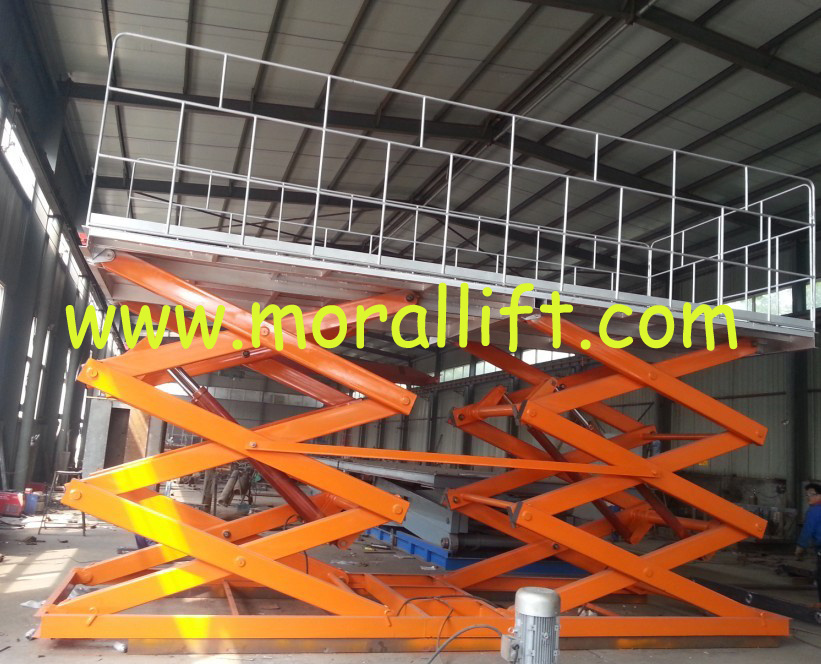

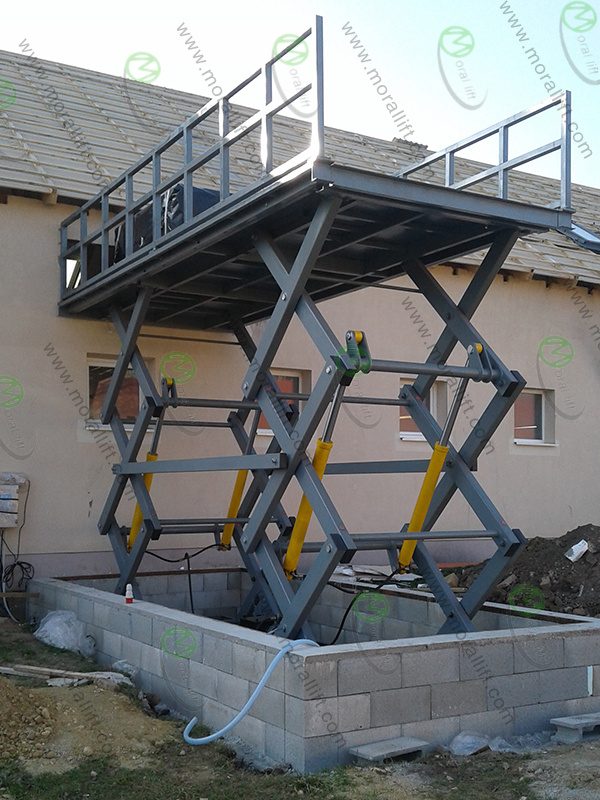

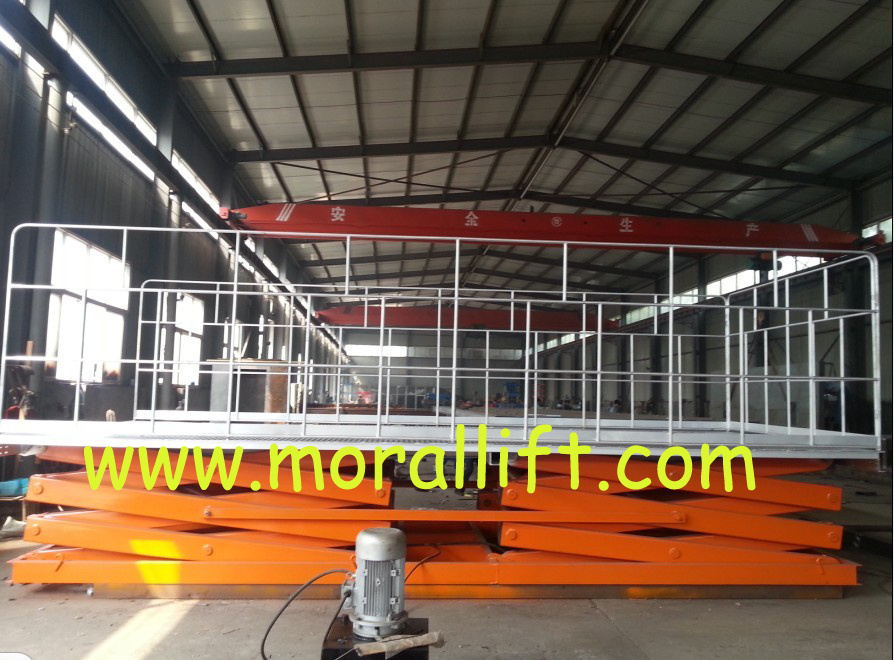

Pictures:
