Underground Garage Basement Floor Hydraulic Car Lift
| Price: |
US $ 3000-6500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Storage Cars Underground Driveway Garage Car LiftMain Features:Load capacity: 3000--5000kg
Platform size: 5.5*2.5m
Lifting height: 5000mm/custom
Hydraulic drive system
Descriptions:
1) scissor hydraulic car parking system can be used to lift cars with different levels,
suitable for car moving between stairs, from basement to first floor, to second floor,
or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The limit switch system helps the lift to stop at accurate position.
3)The hydraulic cylinders and hose are armed with explosion-proof lock valve to
avoid a sudden drop once hydraulic pipe breaks, the work platform will be down
slowly to ensure safety of car.
4) Emergency button is available on each control box, when emergency occurs,
the immediate STOP can be realized.
5)control system adopt elevator control system, very convenient and safety.
6)Custom-made products are done according to detailed request, please tell us
load capacity, lift height, and platform size you need, our engineer will design a
suitable lift for you soon.Safety: 1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs 2) The safe rails to guarantee safety of the car above platform 3) The limit switch system helps the car lift to stop at accurate position. 4) Electricity leakage protection device is equipped on, all electric components are
CE certified. 5) All the Hydraulic scissor car lift are passed 1.2 times loading test before leaving
factory.
Model
| SJG4-5 |
Load capacity
| 4000KG |
Platform size
| 5500*2500MM |
Lifting height
| 5000MM |
speed
| 100mm/s |
power
| 5.5kw |
power supply
| AC 220V/380V 50HZ/60HZ |
| weight | 2950KG
|

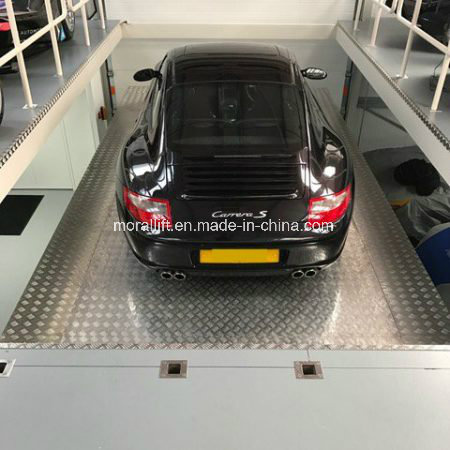

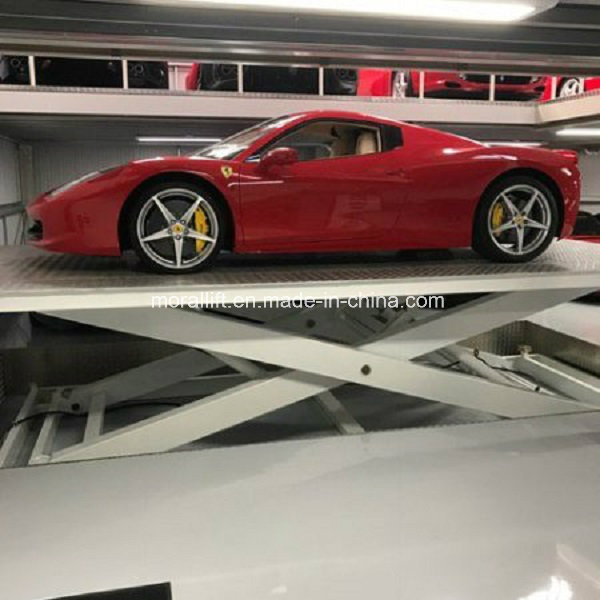

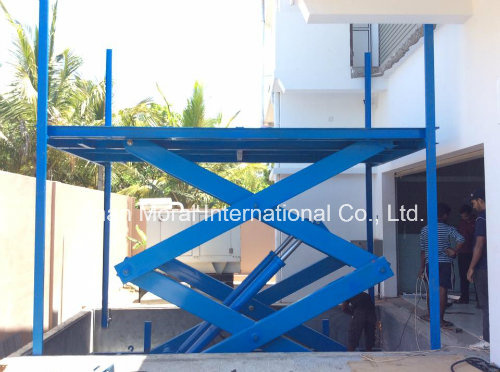

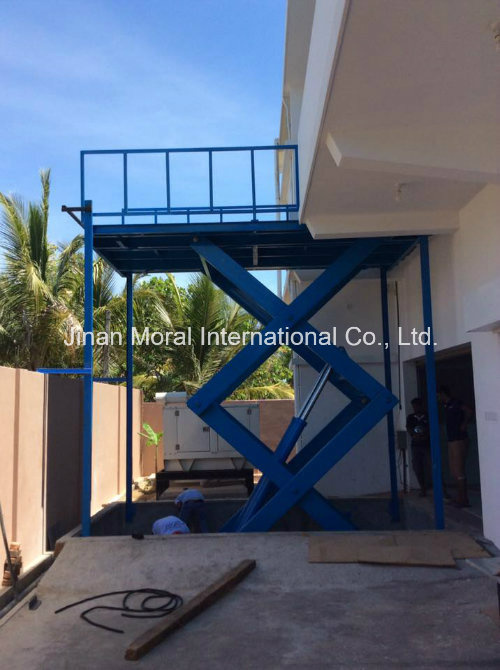

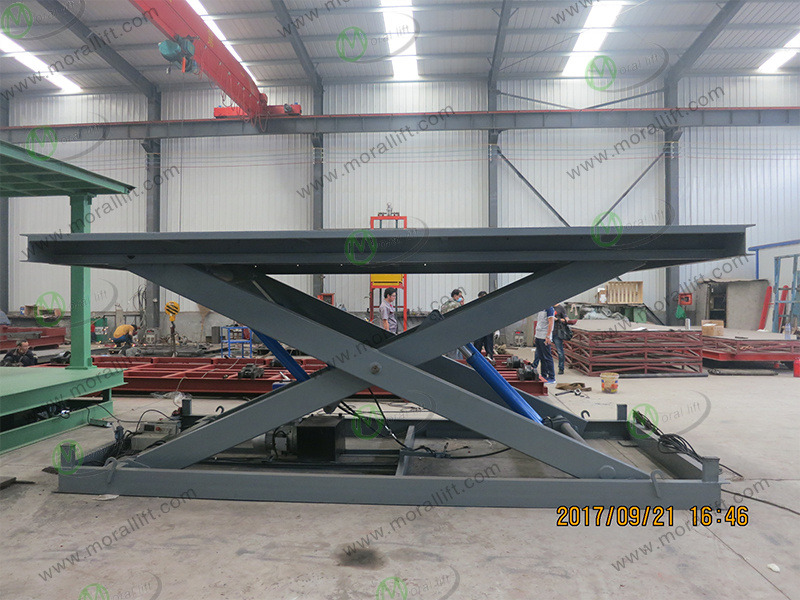

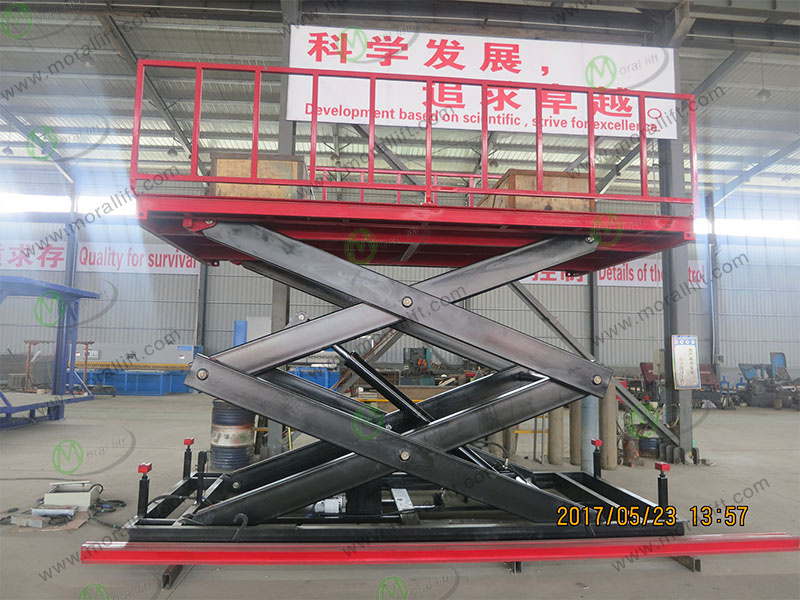

Pictures:
| Prod Model: |
SJG |
| Load Capacity: |
4000kg |
| Platform Size: |
5500*2500mm |
| Lifting Height: |
5000mm or Customized |
| Pit: |
560mm |
| Speed: |
100mm/s |
| Power: |
5.5 Kw |
| Control: |
Button/Remote Control |
| Material: |
Mn steel |
| Warranty: |
12 Months |
| After-Sale Service Provided: |
Overseas Service Center Available |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
4T |
| Certification: |
CE |
| Design: |
Scissor |
| Double Cylinder Lift Type: |
Hydraulic Cylinder |
| Brand: |
Moral |
Welcome to the on-line home of Moral lift Machinery Co., Ltd. Our factory is one of the leading manufacturer of Disabled weelchair lifts & scissor lift &parking equipment&Work platform&Horse trailer in China. Our mainly product including wheelchair lift, car parking lift, car turntable, cargo lift(VRC and scissor lift), work platform and Horse trailer etc.
With over 4 decades of experience in the manufacture of materials handling products, Morallift' S skilled team of friendly personnel can provide fast responses and technical expertise. Our product has got ISO9001: 2000 Quality Certification and has passed the test of CE Quality system as well. We always provide our customers with the best quality products, competitive prices and excellent services.
Our customers from around the world, We regard "reasonable prices, efficient production time and good after-sales service' ' As our tenet, and hope to cooperate with more customers for mutual development and benefits. We welcome every potential customer to visit our factory!
