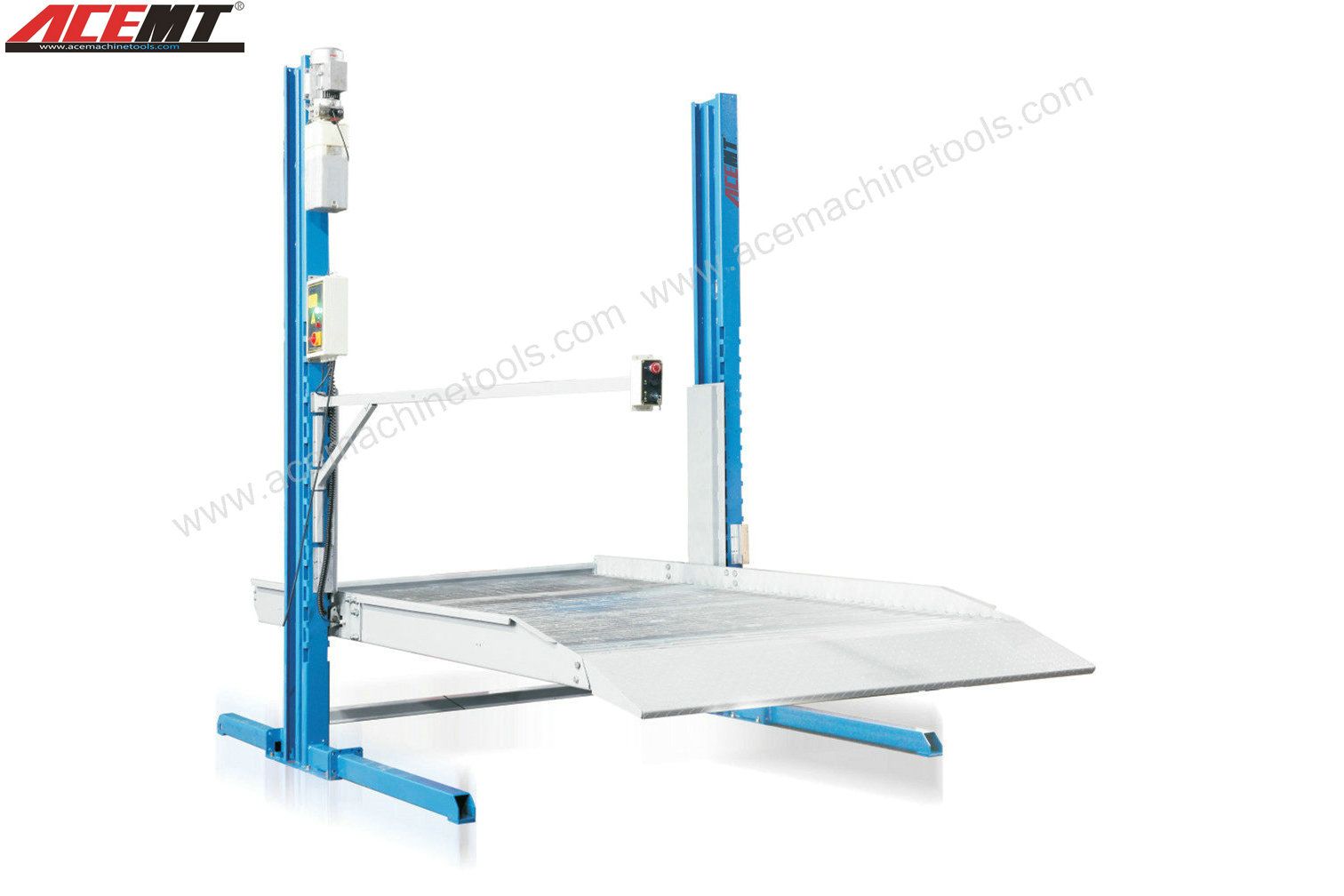

Two Post Parking Lift (ACE7000P)

Name: Two Post Parking Lift (ACE7000P)
Brand: ibuyautoparts.com
SKU: 782641865
Availability: InStock
Rating: 4.3 (74 reviews)

Price:	US $ 1000-2000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	ACE7000P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Platform Length:	4000mm/157 1/2''
Lifting Height:	2160mm/85''
Minimum Height:	130mm
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	2.5T
Certification:	CE
Design:	Two Post

Product Description

: Two Post Parking Lift(ACE7000P)
FEATURES:
GH7000Pis specialized equipment for expanding garage and parking space,and parking or storing multiple vehicles.
It provided more convenience and versatility for any garage or public parking.
3200kg/7000LBS rated load capacity.
Galvanized steel sheet platform.
Manual release from two sides,electrical release optional.
24V safety control system.
Height limit switch included.
It has passed115% dynamic and 150% static load test.
CE certificate.
TECHNICAL SPECIFICATION:

Lifting Capacity	3200kg/7000lbs
Lifting Height	2160mm/85''
Minimum Height	130mm
Platform Length	4000mm/157 1/2''
Platform Width	2195mm/86 1/3''
Overall Height	3320mm/130 3/4''
Lifting Time	50s
Motor Power	2.2kw
power supply	110V/220V/380V/415V
Oil Pressure	20Mpa
Descent Time	18-60s
Air Supply Pressure	0.6-0.8Mpa/6-8kg/cm2
Noise Leve	≤70dB
Packing Size	19002050110mm
Weight	1100kg
Operating Temperature	0ºC-45ºC

ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.

Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.

Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.

Welcome you to visit our website and contact us. We will give you quick response upon any of your need.
