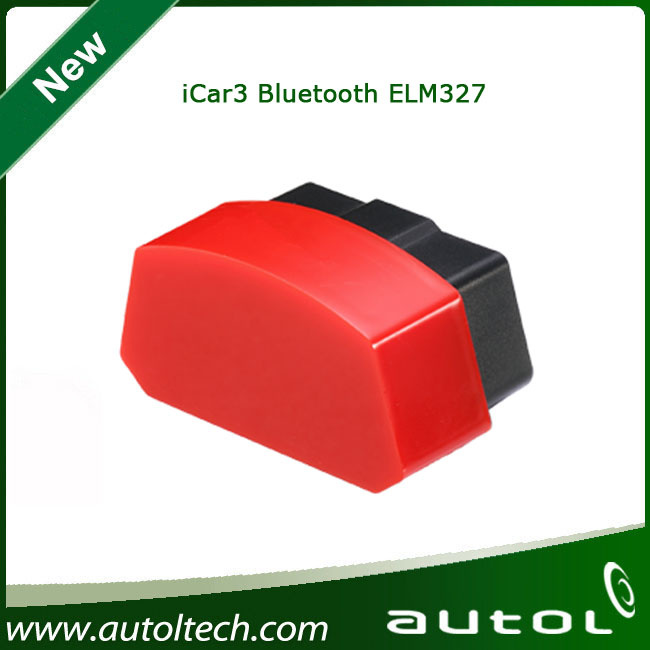

The Latest Icar 3 Bluetooth Elm327 OBD Professional Solution Bluetooth Version

Prod Model:	iCar 3 Elm327
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Elm327 Icar 3
Feature:	Work for Ios Android
Model:	Icar3 Bluetooth
Lead Time:	1days
Warranty:	12 Months
Type:	Code Reader
Applicable Models:	Most of Car Key Model
OBD II Protocol Standard:	Compliant with All Cars with OBD II
Diagnostic Trouble Codes:	Read and Erase
Connection:	Bluetooth
Certification:	RoHS

Product Description

The Latest iCar 3 Elm327 OBD professional solution Bluetooth Version


The device is a small adapter that plugged into the vehicle OBD-connector.
On Bluetooth, it connects to any computer, tablet or smartphone, With associated diagnostic procedures.
It can support Android system and IOS.


Features:

* Supply voltage(VDD): 12V
* Work temperature range: -20 ~ +70º C
* Storage temperature range: -40 ~ +125º C
* RF sensitivity(Basic Rate): -85db
* Modulation Mode: GFSK
* Frequency Range: 2402 ~ 2480MHZ
* Transmission Range: 10M
* Bluetooth Profile: SPP
* UART Params: 38400, 8, n, 1
* Small size, compact structure. Plug and never unplug
* Stable wireless connection
* No wires or batteries (adapter is powered by the diagnosis size sockets)
* Stop communication, wait half an hour, auto sleep
* Supports all OBDII protocols
* The adapter uses the fastest and most reliable ARM chips


Function

* Read, erase and display code descriptions problems - both standard and
Spetskodov manufacturers.
* Measure the fuel consumption.
* Display real-time operating performance of the car, such as momentum,
Vehicle speed, oil pressure, coolant temperature, engine load, intake manifold
Pressure, throttle position, the values of oxygen sensors, air intake
Temperature, and more.
* Turn off the MIL (signal Check Engine).
* Download data to external media in a variety of formats for later printing.
* Record various parameters, display graphics in real time, and more.


With ICar3 ELM327 you will be able to perform a complete computer diagnostics car
And even to correct minor faults without resorting to service stations.


ICar 3 ELM327 scantool is a high-quality automotive scanning tool, supports all OBD-II

Protocols:

0. Automatic
1. SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP(5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP(fast init, 10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID, 500 Kbaud)
7. ISO15765-4 CAN(29bit ID, 500 Kbaud)
8. ISO15765-4 CAN(11bit ID, 250 Kbaud)
9. ISO15765-4 CAN(29bit ID, 250 Kbaud)
A. SAE J1939 CAN(29bit ID, 250*Kbaud)
B. USER1 CAN(11*bit ID, 125*Kbaud)
C. USER2 CAN(11*bit ID, 50*kbaud)
*default settings(user adjustable)
