Original New Launch Auto Diagnostic Tool X431 V Plus 10.1 Inch Touch Screen 2 Years Free Update Launch X431 V+

launch x431 v+ universal  Highlights:

1. Supported Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Traditional Chinese
2. Wi-Fi: Supported
3. Bluetooth: Supported
4. One click update: You do not have to download software to memory card anymore, can do      one click update directly through your machine.

5. Hgiher hardware configuration, faster operate speed than Launch x431 V

6. 10.1 inch Multi touch capacitor Screen

7. It can diagnostic truck with Launch heavy duty box

8. The Top one from Launch scanner

 launch x431 v+ based on Android system, is a new car malfunction diagnostic device developed by Launch Tech for internet application. launch x431 v+  completely substitutes X431 IV and X431 Diagun III.

launch x431 v+  achieves the full car model and full system fault diagnosis through the bluetoooth. communication between DBSCar connector and intelligent mobile terminal.

What is the advantange of  launch x431 v+ ?

1. HUAWEI HiSilicon Quod-core 1.2G HZ, faster speed.
2. 10.1 inch multi touch capacitor screen gives you better view for diagnose and data stream.
3. 1GB memory and 8GB storage for data.
4. Contains 72 car brand from USA, European, Asia and so on.
5. Supports wifi/bluetooth and one click update, make your update much easier.
6. 6600mAh Li battery can let you keep working 8 hours.
7. Supported Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Traditional Chinese
8. Original goods, with full time technical service and guarantee.

launch x431 v+ Description:

launch x431 v+ taking the advantages of mobile Internet, can share maintenance data and case library, provide instant maintenance information,
and build public and private maintenance social circle,etc.Thus it leads you to wide car diagnostic community.
It is a typical diagnostic device contributed by Launch to diagnostic industry concerning Internet application.




launch x431 v+  Product Features:

Panel PC: High configuration of hardware , fast running speed
Capacitor Screen: Multi-touch capacitor screen, more smooth operation
WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth
Portable: Reasonable PDA design, small size for easy carry
Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier
Wifi communication: Support WIFI network

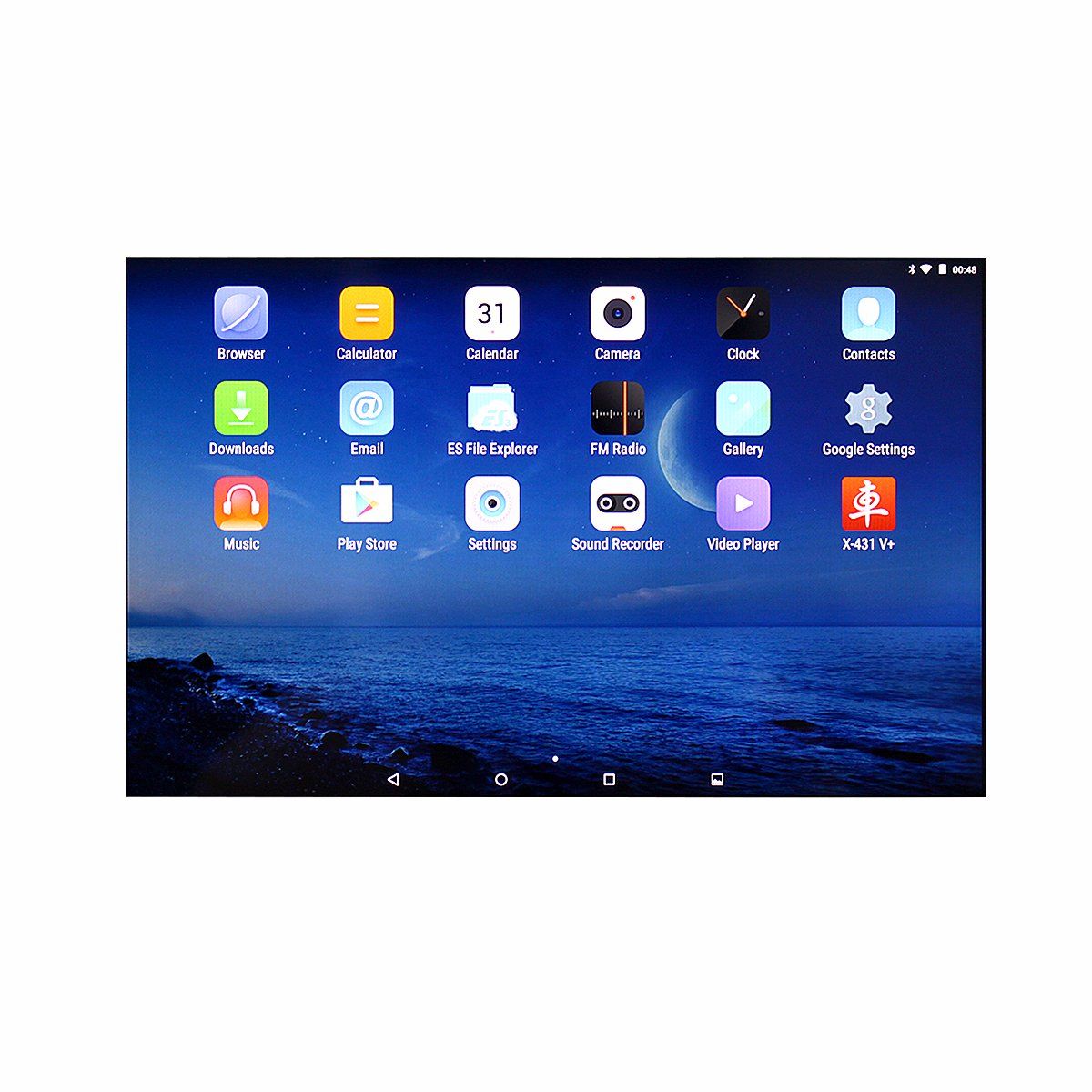

Android System: Users can install Android software
Numerous Additional Functions: Photo, video, multimedia, other software application,etc.
One click update: You do not have to download software to memory card anymore, it can do one click update directly through your machine.

launch x431v+ Product Parameters:

Pannel Computer Parameters:

CPU: HUAWEI HiSilicon Quod-core 1.2G HZ
Screen:10.1 inch Multi touch capacitor Screen
Screen Resolution:1280X800
Operation system:Android4.0
Memory:1G
Storage:8GB
Battery:Polymer Lithium-ion battery, 6600mAh
Camera :0.3M pixels front , rear 3.2M pixels
Operating Temperature :0°C~+45°C
Storage Temperature :-10°C~+45°C

DBSCar Connector Parameters:

Connection: Standard OBDII Interface, Micro USB 2.0
Typical Power Consumption:(12V)Static current 25 mA,
overall unit average current 35 mA
Working Temperature: - 20 °C~6 0°C
Storage Temperature: -30°C~70°C
Dimension: L * W * H = 48 mm * 24 mm * 32 mm
Unit Weight: 26 g
Working Voltage: powered by vehicle battery, DC 9V-15V

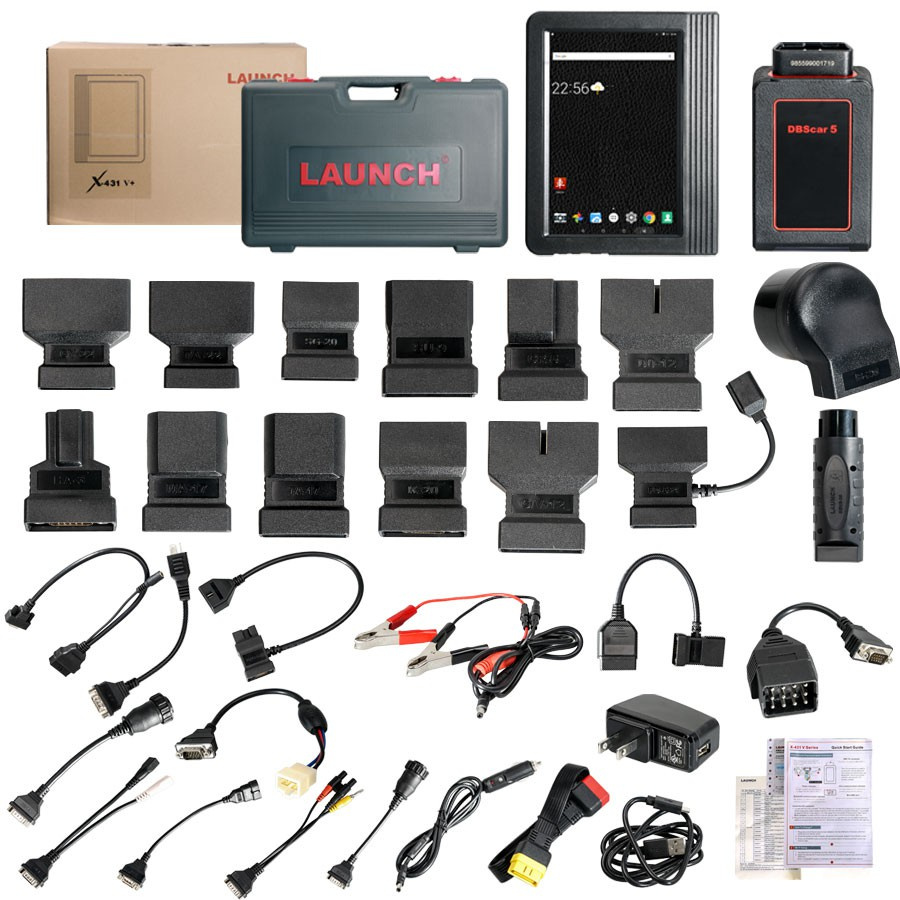

launch x431 v+ Package List:

Main unit:

1pc x launch x431v+  American host, RoHS

Connectors:

1pc x Android edition diagnostic connector (10 meters Bluetooth)

1pc x DAEWOO-12 diagnostic connector integrated



1pc x CHRYSLER-6 diagnostic connector integrated
1pc x DAIHATSU-4 diagnostic connector linear


1pc x GAZ diagnostic connector linear
1pc x GEELY-22 diagnostic connector integrated
1pc x GM/VAZ-12 diagnostic connector integrated

1pc x KIA-20 diagnostic connector integrated
1pc x MAZDA-17 diagnostic connector integrated


1pc x SSANGYONG-14 diagnostic connector linear
1pc x SSANGYONG-20 diagnostic connector integrated
1pc x SUBARU-9 diagnostic connector integrated
1pc x SUZUKI-3 diagnostic connector linear


1pc x UNIVERSAL-3 diagnostic connector linear

launch x431v+ Test cable:

1pc x OBDII -16 extension 135mm, RoHS
1pc x OBD I Adaptor BOX switch wiring
1pc x LIGHTER
1pc x CLIPPER

launch x431v+  Accessories:

1pc x MicroSD card, SanDisk 32G capacity, RoHS
1pc x X431 PIN envelope
4pcs x Clipper fuse 5*20m
