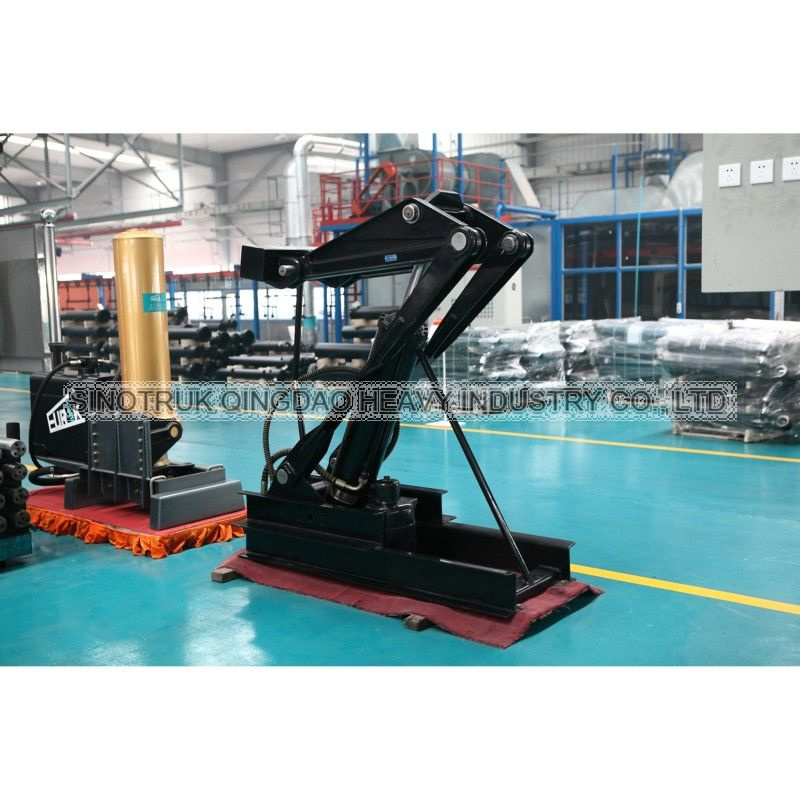

T-Type Hydraulic Tipping System (JSG(K)FTH2535MH2)

Name: T-Type Hydraulic Tipping System (JSG(K)FTH2535MH2)
Brand: ibuyautoparts.com
SKU: 704133585
Availability: InStock
Rating: 4.3 (136 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

T-type tipping gear is a powerful device composed of hydraulic cylinder and link-rod magnify mechanism. The characteristic of this mechanism is that, two ends of the cylinder hinged with sub-frame or tipping bracket respectively. The three endpoints of tipping bracket are hinge to hydraulic cylinder, pulling rod bracket and dump body. The two ends of pulling rod hinge to sub-frame and tipping bracket respectively. During working, the hydraulic cylinder pushes the tipping bracket through pulling rod; Consequently lift up the dump body. This mechanism has compact structure and it is stable on transverse, smooth in lifting process, and the force distribution of the rod is even. Designed with CAD program, make it has several advantage, such as simple structure, low oil pressure and small fluctuation on the oil pressure curve.

Prod Model:	JSG(K)FTH2535MH2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lifting Capacity:	≥5T
Update Method:	by Email
Type:	Car Lift/Scissor Lift
Certification:	CE

SINOTRUK QINGDAO HEAVY INDUSTRY Co., Ltd (original named as Special Truck Company, CNHTC) (here reference SINOTRUK Qingdao) is located in Qingdao, a beautiful seaside city. It is one of the wholly owned subsidiaries of SINOTRUK and the famous enterprise in special truck industry in China.
In 2011, our company expands the production scope, and increases the engineering machinery products, then the company rename "Special Truck Company, CNHTC" to "SINOTRUK Qingdao Heavy Industry Co., Ltd", and move to new factory located in Qingdao High-tech Industrial Development Zone. With over 2, 000 staffs working there, SINOTRUK Qingdao has the capacity of manufacturing 20, 000 special trucks and over 60, 000 sets of hydraulic components per year. The company owns a fixed capital of USD400 million and occupying 899, 100 square meters. The main products cover Excavator, Dump Truck, Concrete Mixer Truck, Garbage Truck, Aircraft Tractor, Military Vehicle, Semi-trailer, Water Tank Truck, Fuel Tank Truck, Fire Fighting Truck, Mobile Workshop, hydraulic component, etc.
SINOTRUK Qingdao is one of the 52 national vehicle export base enterprises and 53% of the products are exported to more than 50 countries and regions, such as Southeast Asia, Africa, South America, Middle Asia and Russia, etc. SINOTRUK Qingdao can provide best service for the overseas users in plenty of spare parts supply, after-sales services, abundant technical strength, regular customers visit and professional training.
It is your choice to choose us, to supply directly from manufacturer, quality trucks, best service, genuine spare parts.
