T-Type Hydraulic Lift System (JSG(K)FTH3545MH4)
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

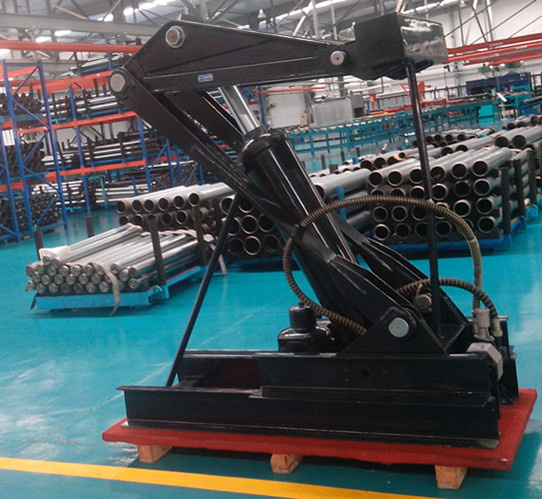

T-type tipping gear is a powerful device composed of hydraulic cylinder and link-rod magnify mechanism. The characteristic of this mechanism is that, two ends of the cylinder hinged with sub-frame or tipping bracket respectively. The three endpoints of tipping bracket are hinge to hydraulic cylinder, pulling rod bracket and dump body. The two ends of pulling rod hinge to sub-frame and tipping bracket respectively. During working, the hydraulic cylinder pushes the tipping bracket through pulling rod; Consequently lift up the dump body. This mechanism has compact structure and it is stable on transverse, smooth in lifting process, and the force distribution of the rod is even. Designed with CAD program, make it has several advantage, such as simple structure, low oil pressure and small fluctuation on the oil pressure curve.
|
Part No. |
Description |
Quantity |
|
31286030072 |
Hydraulic cylinder assembly |
1 |
|
31286020085 |
lifting drag link component |
2 |
|
31286020175 |
Lifting bracket assembly(left) |
1 |
|
31286020176 |
Lifting bracket assembly(right) |
1 |
|
31286010166 |
Lifting drag link bearing component |
1 |
|
31285010233 |
Carriage lifting chair plate subassembly(left) |
1 |
|
31285010238 |
Carriage lifting chair plate subassembly(right) |
1 |
|
31286050078 |
Hydraulic oil tank |
1 |
|
31286020305 |
Lifting bracket carriage axle pin bush |
1 |
|
31286020306 |
Lifting drag link axle pin |
4 |
|
31286020307 |
Hydraulic cylinder seat |
2 |
|
31286030024 |
washer |
2 |
|
31286020310 |
Bolt |
12 |
|
31286020311 |
Locating plate |
2 |
|
|
Longeron left |
1 |
|
|
Longeron right |
1 |
|
31286020188 |
Push rod head bush |
2 |
|
31286020187 |
Lifting drag link bush |
4 |
|
31286020189 |
Lifting bracket carriage axle pin bush |
2 |
|
31286020030 |
Catch lever |
4 |
|
Q151C1225 |
Hexagonal bolt |
8 |
|
Q40312 |
Spring washer |
8 |
|
31286010029 |
Thick shim |
12 |
|
Q700B01 |
Direct grease nozzle |
8 |
|
Q701B45 |
Bending neck type grease nozzle |
2 |
|
Q150B1030 |
Hexagonal bolt |
4 |
|
Q40310 |
Spring washer |
4 |
|
31286060003 |
Pneumatic control valve assembly |
1 |
|
31286050022 |
Seal ring |
2 |
|
31286070031 |
Pneumatic distribution valve |
1 |
|
|
Drive shaft |
1 |
|
31286030029 |
Locking nut |
2 |
|
31286030025 |
Locking nut |
2 |
|
Q340B16 |
Hexagon nut FROM: Bluebell |
12 |
| Prod Model: |
JSG(K)FTH3545MH4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifting Capacity: |
≥5T |
| Update Method: |
by Email |
| Type: |
Car Lift/Scissor Lift |
| Certification: |
ISO |
