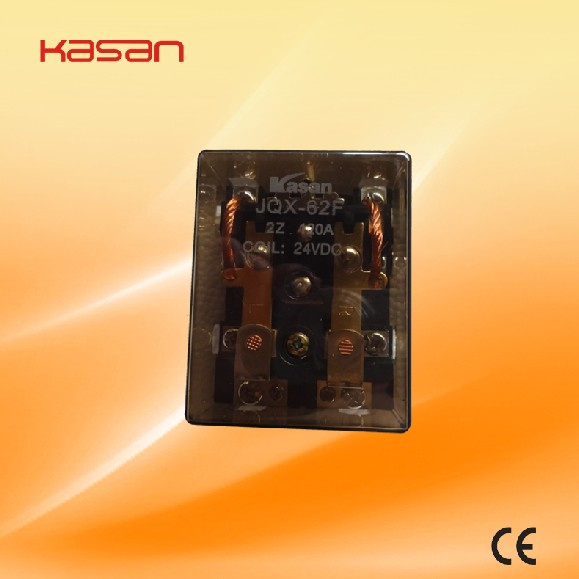

Switch Power Relay 24VAC General Purpose Relay Mini Relay (JQX-62F-2Z)

Name: Switch Power Relay 24VAC General Purpose Relay Mini Relay (JQX-62F-2Z)
Brand: ibuyautoparts.com
SKU: 694114262
Availability: InStock
Rating: 4.9 (135 reviews)

Price:	US $ 2.5-5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Specifications

Features of Power Relay JQX-62F-2Z
80A-120A contact operating capacity
With Opening & Dust-proof cover

Features of Power Relay JQX-62F-2Z:

80A-120A contact operating capacity
With Opening & Dust-proof cover

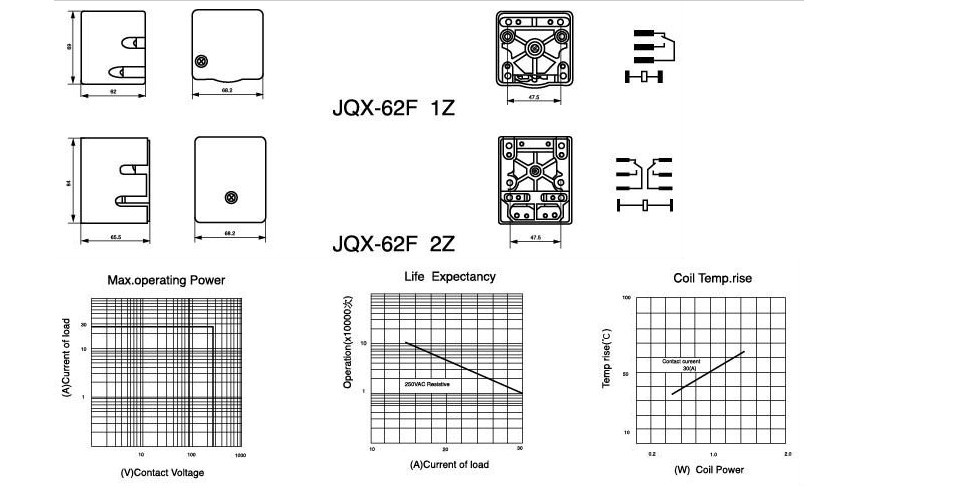

Size(mm): 84×68.2×65.5
Tirminal layout: 2Z
Contact capacity: 80A 28VDC/80A 220VAC
Contact resistance: ≤50mΩ
Inulation resistance: ≥1000MΩ
Dielectric strength: BOC 2200VAC/BCC 2200VAC

Related products

General relay MK MY,LY

Thermal relay 3UA LR9 JRS1,JR28

Power relay JQX-38F JQX-40F 1Z JQX-52F JQX-58F JQX-59F JQX-60F JQX-62F 1Z 80A JQX-62F 1Z 120A JQX-62F 2Z 80A

Time relay AH3-N_ ST2P ST3P H3BA(ST4P) H3CR-A8 H3CA-A H3CA-8 ASTP-N/Y AH2-N/Y ATDV-N/Y ASY-2D ASY-3D AH3Y (ST6P)

Electromagnetic relay 58.02 56.02 55.02 55.04 57.02 57.04 60.12 60.13 70.2

Relay socket PYF-08A PYF-08A-E PYF11A PYF14A PF113A-E PF085A PS-08 P2CF-08 PY-08 PY-14 PT-08 PT-14 PTF08A PTF08A-E PTF11A PTF14A PTF14A-E PTF083A PF083A-F PF113A 90.22 90.23 PPF-011 PY-08-0

Solid state relay SSR

Model	JQX-62F-1Z	JQX-62F-2Z(2H/2D)
Contact Rating	1Z, 1H, 1D	2Z, 2H ,2D
Contact Capacity	80A 250VAC/24VDC 120A 250VAC/24VDC	80A 250VAC/24VDC 120A 250VAC/24VDC
Contact Resistance	30mΩ (1A 6VDC)
Nominal Coil Power	DC2.0W ; AC2.5VA
Insulation Resistance	1000MΩ, 500VDC
Dielectric Strength	Between coil and contacts 2500VAC 1minute
	Between open contacts 1200VAC 1minute
Operate Time	Pull-in time≤25ms ; Release time≤25ms
Terminal Type	Screw mounting

Prod Model:	JQX-62F-2Z
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	General Purpose
Model Number:	Jqx-62f 2z, 120A
Type:	Starting Relay
Input Parameter:	24VDC
