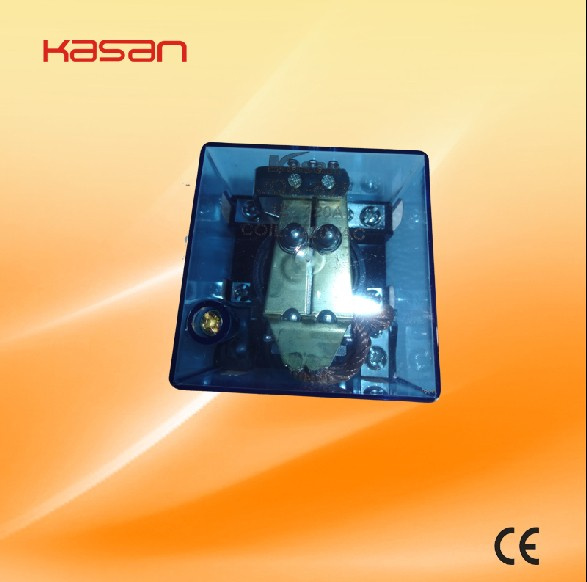

Power Relay 220V AC 120A, High Power Relay (JQX-62F-1Z)

Name: Power Relay 220V AC 120A, High Power Relay (JQX-62F-1Z)
Brand: ibuyautoparts.com
SKU: 694114752
Availability: InStock
Rating: 4.7 (134 reviews)

Price:	US $ 2.5-5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Specifications
Features of Power Relay JQX-62F-2Z
80A-120A contact operating capacity
With Opening & Dust-proof cover
Features of Power Relay JQX-62F-2Z:
80A-120A contact operating capacity
With Opening & Dust-proof cover

Size(mm): 84× 68.2× 65.5
Tirminal layout: 2Z
Contact capacity: 80A 28VDC/80A 220VAC
Contact resistance: ≤ 50mΩ
Inulation resistance: ≥ 1000MΩ
Dielectric strength: BOC 2200VAC/BCC 2200VAC

Related products
General relay MK MY, LY
Thermal relay 3UA LR9 JRS1, JR28
Power relay JQX-38F JQX-40F 1Z JQX-52F JQX-58F JQX-59F JQX-60F JQX-62F 1Z 80A JQX-62F 1Z 120A JQX-62F 2Z 80A
Time relay AH3-N_ ST2P ST3P H3BA(ST4P) H3CR-A8 H3CA-A H3CA-8 ASTP-N/Y AH2-N/Y ATDV-N/Y ASY-2D ASY-3D AH3Y (ST6P)
Electromagnetic relay 58.02 56.02 55.02 55.04 57.02 57.04 60.12 60.13 70.2
Relay socket PYF-08A PYF-08A-E PYF11A PYF14A PF113A-E PF085A PS-08 P2CF-08 PY-08 PY-14 PT-08 PT-14 PTF08A PTF08A-E PTF11A PTF14A PTF14A-E PTF083A PF083A-F PF113A 90.22 90.23 PPF-011 PY-08-0
Solid state relay SSR

Model	JQX-62F-1Z	JQX-62F-2Z(2H/2D)
Contact Rating	1Z, 1H, 1D	2Z, 2H ,2D
Contact Capacity	80A 250VAC/24VDC 120A 250VAC/24VDC	80A 250VAC/24VDC 120A 250VAC/24VDC
Contact Resistance	30mΩ (1A 6VDC)
Nominal Coil Power	DC2.0W ; AC2.5VA
Insulation Resistance	1000MΩ, 500VDC
Dielectric Strength	Between coil and contacts 2500VAC 1minute
	Between open contacts 1200VAC 1minute
Operate Time	Pull-in time≤25ms ; Release time≤25ms
Terminal Type	Screw mounting

Prod Model:	JQX-62F-1Z
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	General Purpose
Model Number:	Jqx-62f 2z, 120A
Type:	Starting Relay
Input Parameter:	24VDC

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
