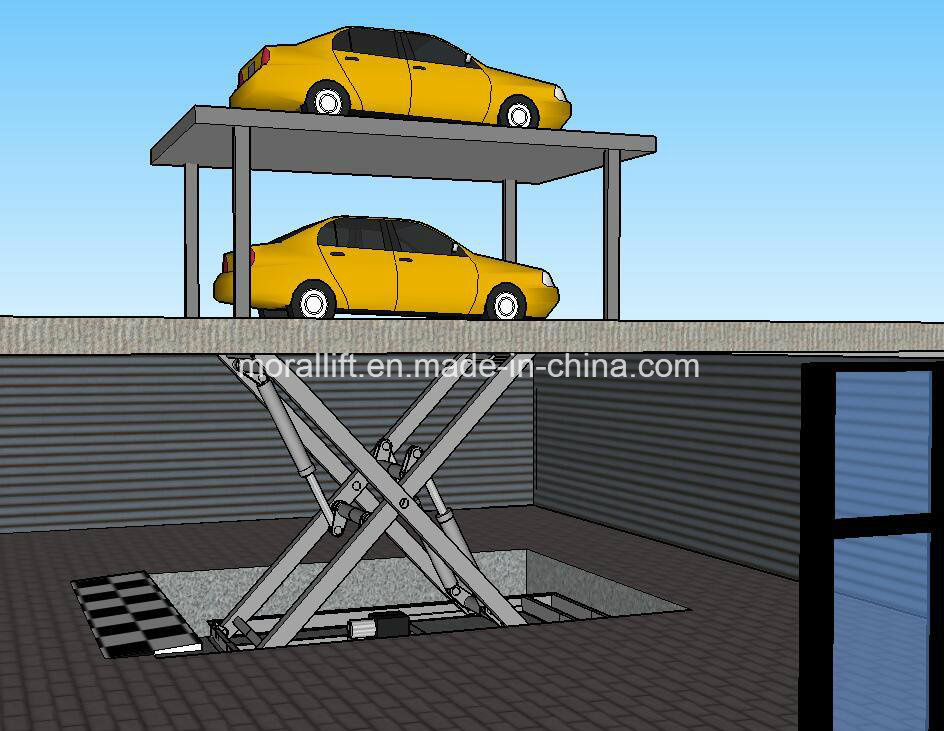

Storage Underground Hydraulic Scissor Car Parking Lift with Roof
| Price: |
US $ 5000-8000/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Storage Underground Hydraulic Scissor Car Parking Lift with RoofSpecifications and Safety:1. The hydraulic cylinders and hoses are armed with explosion-proof lock valve that aims to avoid a sudden drop in case hydraulic pipe breaks, the work platform will drops slowly to ensure car's safety.
2. The handrail guarantees the safety of cars.
3. Equipped with 4 guide rails to ensure safety and steady.
4. The limit switch system ensures lifts stop at accurate position.
5. Overload protection facility will protect the lift from working when goods are overloaded.
6. Electric control system is adopted from the elevator control system of Japan Mitsubishi that ensures the safety of lift.
7. Guarantee period: 12 months. We supply spare parts free and supply technical supporting all the time.

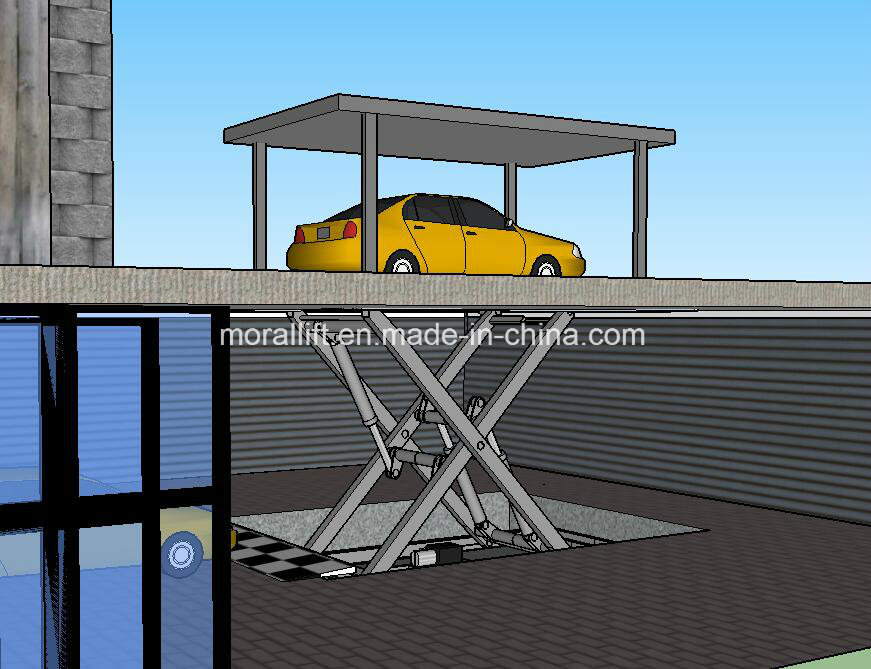

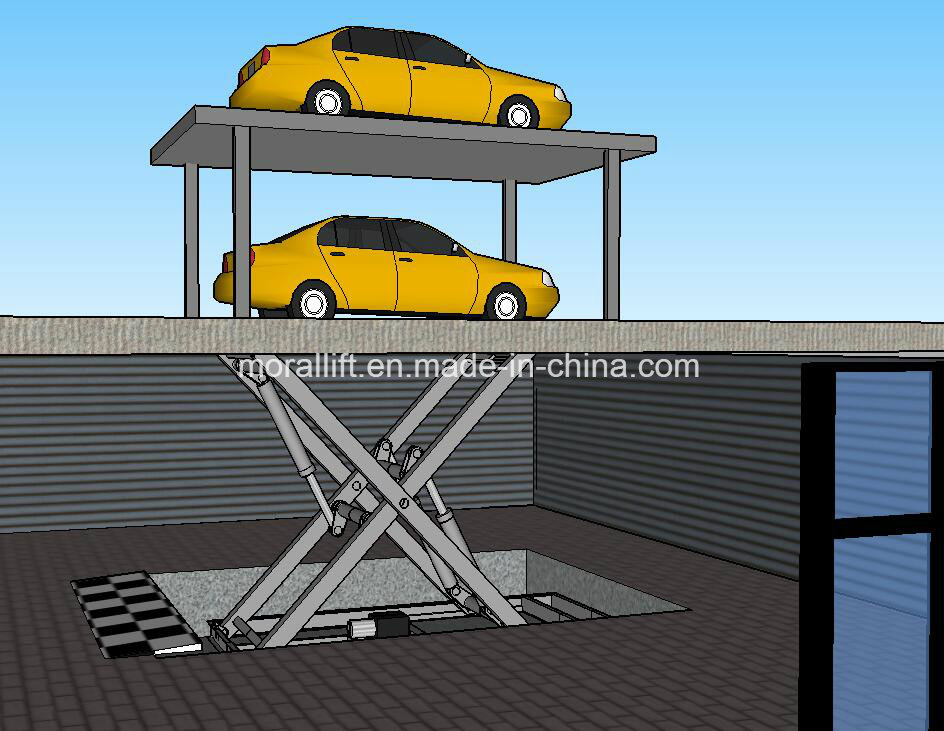

8. Scissor hydraulic car parking system can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor,
Or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
9. The limit switch system helps the lift to stop at accurate position.
10. The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.
11. Emergency button is available on each control box, when emergency occurs, the immediate stop can be realized.
12. Control system adopt elevator control system, very convenient and safety.
13. Custom-made products are done according to detailed request, please tell us Load capacity,
lift height, and platform size you need, our engineer will design a suitable lift for you soon.Parameters: | Model | SJG3-6 |
| Lifting capacity | 3000kg |
| Lifting height | 6000mm |
| Platform size |
5500 X 2500 mms.
( Diamond steel sheet metal ) |
Motor power | 5.5kw |
| Power supply | AC 220V/380V 50HZ/60HZ |
| Speed | 100mm/s |
| Weight | 1850KG |
Photos:
| Prod Model: |
SJG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Optional |
| Load Capacity: |
3000kg |
| Lifting Height: |
6000mm |
| Package: |
Standard Export Packing |
| Delivery Time: |
15 Days After Confirm Order |
| Control: |
Button/Remote |
| Platform Size: |
5500*2500mm |
| Power: |
5.5KW |
| Warranty: |
12 Months |
| After-Sale Service Provided: |
Overseas Service Center Available |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
4T |
| Certification: |
CE |
| Design: |
Scissor |
| Brand: |
MORAL |
