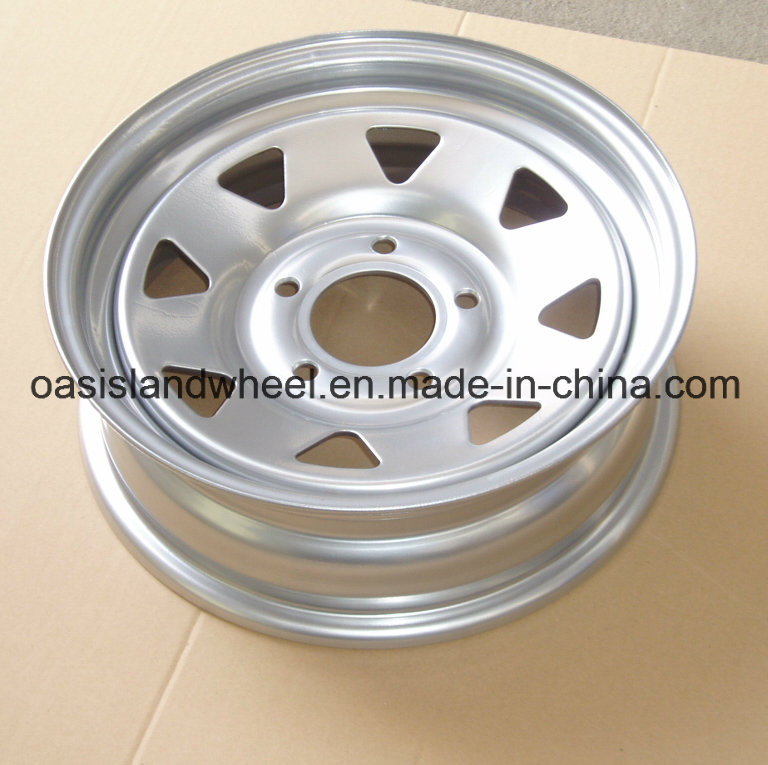

Steel Disc Trailer Wheel (3.5X12, 4.5X14, 5.5X15) for Small Trailer

Name: Steel Disc Trailer Wheel (3.5X12, 4.5X14, 5.5X15) for Small Trailer
Brand: ibuyautoparts.com
SKU: 798249895
Availability: InStock
Rating: 5 (76 reviews)

Price:	US $ 10-50/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3.5x12, 4.5x14, 5.5x15
Painting:	White / Silver /Black
Material:	Steel
Type:	Rim
Drive Wheel:	4WD
Wheel Hub Diameter:	16-20"
Spoke Type:	Flat Spoke
Certification:	DOT
Finishing:	Painting
Wheel Accessories:	Nude
Wheel Hub Brand:	Oasisland

Product Description

steel disc trailer wheel (3.5x12, 4.5x14, 5.5x15) for small trailer

Feature:
Used for 4X4 Truck or trailer in all season
Made in high quality factory with international standard.
Warranty: 2year
Assembly: Available.

Specification:

5JX13	29	60.7	4-14.5 60°	98
5JX13	40	54	4-15 60°	100

4.5Jx14	98	φ115	6-φ15 60°	φ160
4.5Jx14	98	φ110	6-φ16	φ150

5J×14	40	φ51	5-Φ14 60°	φ114.3
5Jx14	38.5	φ54	4-φ15 60°	φ100
5Jx14	44	Φ60	5-φ14.5 60°	Φ114.3
5Jx14	40	54	4-15 60	100
5.5JKX16H	108	130	6--21	170

51/2JJX14	20	φ110	5-φ15	φ139.7
51/2JJX14	20	φ110	5-φ15 60°	φ139.7
51/2JJX14	44	φ93	6-φ13 60°	φ139.7
51/2JJX14	44	φ93	6-φ13	φ139.7

Model	Offset	Center hole	Bolt hole	PCD	Valve	Tyre	Thickness
5JX14	35	57	5-14.8 SR13	100	TR414	165/70R14	4MM
51/2JX15	47	67	5-14.8 60Single	114.3	TR414	184/70R15	4.25MM

Size	Part number	Offset	CB	Bolt	PCD	Load Lbs	Vent holes
6Jx14	LT734	45	φ59	4-φ14.5	φ100	1000	14-φ25
6Jx14	LT734A	52	φ67.1	4-φ14.5	φ108	980	14-φ25
6Jx14	LT734B	45	φ67.1	4-φ14.5	φ114.3	1000	14-φ25
6Jx14	LT734C	45	φ59	5-φ14.5	φ100	1000	14-φ25
6Jx14	LT734D	45	φ67.1	5-φ14.5	φ114.3	1050	14-φ25
6Jx14	LT734F	45	φ59	4-φ14.5	φ100	1000	14-φ35
6Jx14	LT734FA	45	φ59	4-φ14.5	φ100	1000	14-φ35
6Jx14	LT2773	45	φ56.1	4-φ14.5 60°	φ100	1000	14-φ35
6Jx14	LT2773A	45	φ54	4-φ14.5 60°	φ100	1000	14-φ35

Other sizes:

size	tyre size
size	tyre size
17.5×6.00	8R17.5 215/75R17.5
17.5×6.00	8R17.5 215/75R17.5
17.5×6.75	9R17.5
19.5x6.00	8R19.5
19.5x6.75	9R19.5 225/75R19.5
19.5x7.50	9R19.5
19.5x8.25	11R19.5
22.5×6.75	9R22.5 235/70R22.5
22.5×7.50	10R22.5 255/70R22.5
22.5×8.25	11R22.5
22.5×9.00	12R22.5 315/80R22.5
22.5×11.75	15R22.5 385/65R22.5
22.5×11.75	15R22.5 385/65R22.5
24.5x8.25	11R24.5
22.5×14.00	18R22.5

Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials

All products we supply will be with quality and guarantee...

For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.

For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.

Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
