Shandong Lift Machinery Co., Ltd. >> Stationary Hydraulic Mechanical Garage Car Lift

Stationary Hydraulic Mechanical Garage Car Lift

Stationary Hydraulic Mechanical Garage Car Lift
Price: US $ 2000-4800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: SJG3-2.5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 220V, 240V, 380V, 400V or Other
Install: Underground
Type Of Products: Hydraulic Scissor Car Lift
Color: Red, Yellow, or as Your Request
Motor: Customer Required Brand or Chinese Famous Brand
Safety Device: Explosion Proof Lock Valve, Emergency
Lift Height: 2.5m
Handrail: 900mm
Warranty: 24monthes
Size: According to Clients Requests
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 3T
Certification: ISO
Design: Scissor
Brand: Sdlift

Product Description

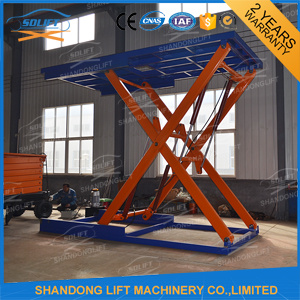

Stationary Hydraulic Mechanical Garage Car Lift

Application:

 - The mechanical garage car lift can be used to lift car with different levels,suitable for car moving between stairs, from basement to first floor,to second floor, or to third floor.

  - Operation is easy. There are 2 sets control system installed on the mechanical garage car lift, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

 The frequent models we supplied for our clients:

MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG2.5-3

2.5T

5.2m x 2.6m

3m

750mm

220V, 240V, 380V or 400V

SJG2-6.5

2T

5.2m x 2.8m

6.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

800mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

750mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

800mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

1150mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

850mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

950mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1150mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

1200mm

220V, 240V, 380V or 400V

 The mechanical garage car lift can be customized as your detailed size.

Configuration:

1) Platform Material: rectangular tube +checkered iron

2) Scissor material: high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw or other

4) High Precision Hydraulic Cylinder

5) Piston Rod: hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

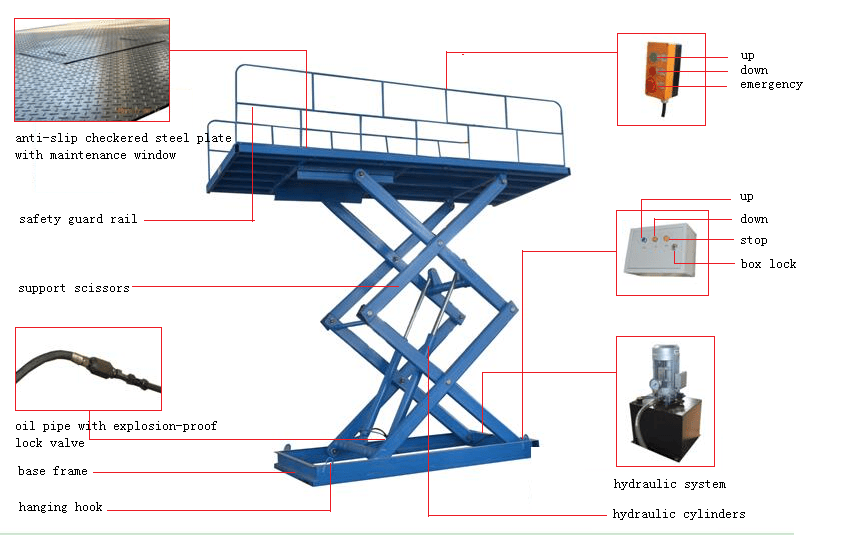

Parts showing:



Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The safety rails to guarantee safety of the cars above the platform.

3) The limit switch system helps mechanical garage car lift to stop at accurate position.

4) Electricity leakage protection device is equipped on, all electric components are CE certified.

5) All the mechanical garage car lift are passed 1.2 times loading test before leaving factory.

Our services:

1) We can design the customerized mechanical garage car lift as per your requirement.

2) The most suitable mechanical garage car lift will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) 2 year warranty for whole machine without man-made faults.

7) We will send you parts for free if there are any non-human factors faults during warranty time.

8) Supply 24-hours technical assistance by email, telephone or other communication online.

9)We could reply you in 2 hours after received your any questions even on
weekend and holiday. Engineers are available to your country if necessary.



Shandong Lift Machinery Co., Ltd is one of the leading manufacturer of heavy duty scissor lifts and car parking lifts in China. Being in this field for over 59 years, and exported lift machine more than 17 years till 2017. Our main products are stationary scissor lift, mobile scissor work platform, car park lift, cargo elevator, disable wheelchair lift, aerial aluminum lift ladder, and mobile container loading ramps etc.

Now there are more than 116 staffs in our factory, and 10 production lines in 8 workshops. There is a engineer team focus on research, development and innovation. The biggest load weight of our scissor lift is 100tons. All the products are passed the test held by Check Station of China Special Equipment and Manufacture.

We regard ''reasonable prices, efficient production time and good after-sales service'' as our tenet, and hope to cooperate with more customers for mutual development and benefits. We sincerely welcome each potential customer to visit our factory!
