Hydraulic Car Stationary Scissor Lift Platform / Car Lift Table

Hydraulic Car Stationary Scissor Lift Platform / Car Lift Table
Price: US $ 3000-7800/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Hydraulic Car Stationary Scissor Lift Platform / Car Lift Table

Introduction

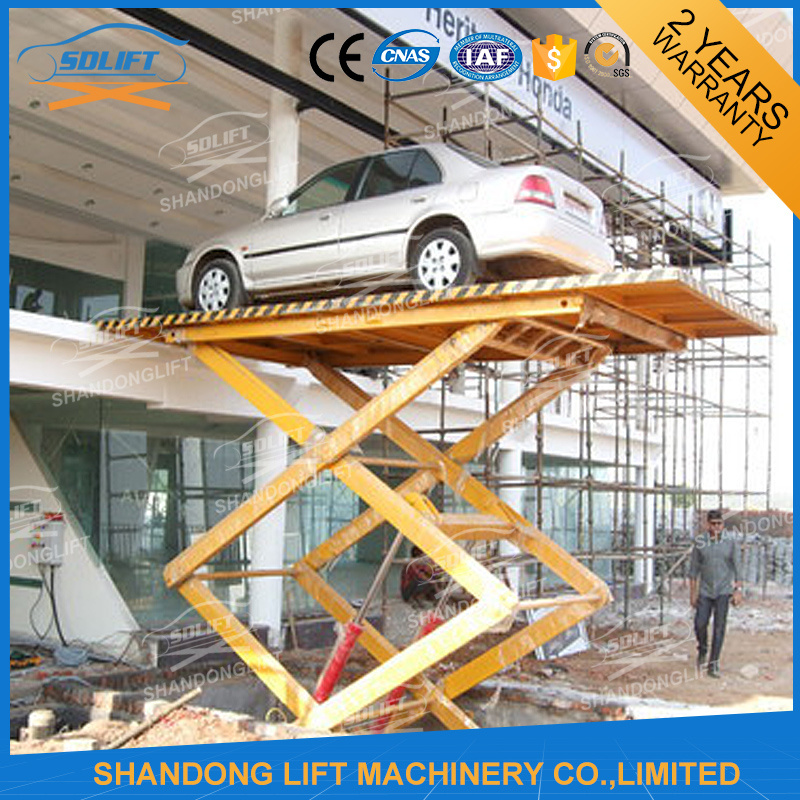

- Car lift table can used for loading / unloading cars from ground to next level in basement.We also have large platform and double platforms for lifting truck or two cars.

- As lift stage, used for opera house, ballet theatre, drama theatre.It is installed in the pit, keep level with ground, save space.

Designed for Belgium customer car lift


Lift height5000mm
Lift loading capacity3000kg
Lift platform size5600mm*3000mm
Power220v, 380 or others
CylinderHigh Precision Hydraulic Cylinder
Controller1 control box below, 1 control panel above platform, remote control
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above lift platform.
3) The limit switch system helps the car lift table to stop at accurate position.
4) Electricity leakage protection device is equipped on , all electric components are CE certified.
5) All the car lift table are passed 1.2 times loading test before leaving factory

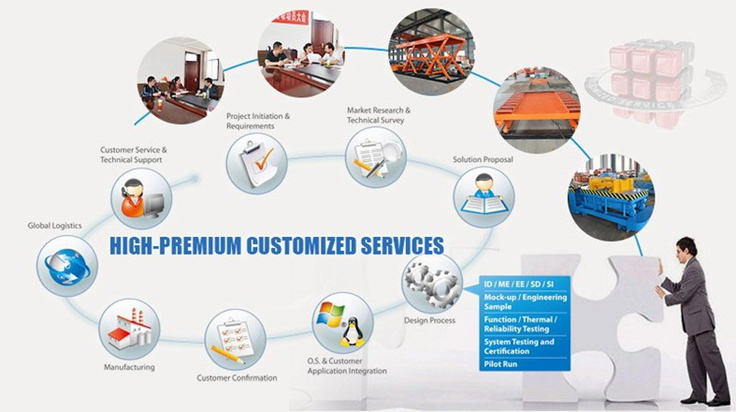

If you need this type scissor car lift, feel free tell us your requirements, our engineer will design car lift for you soon. Follow is our Design Flow,

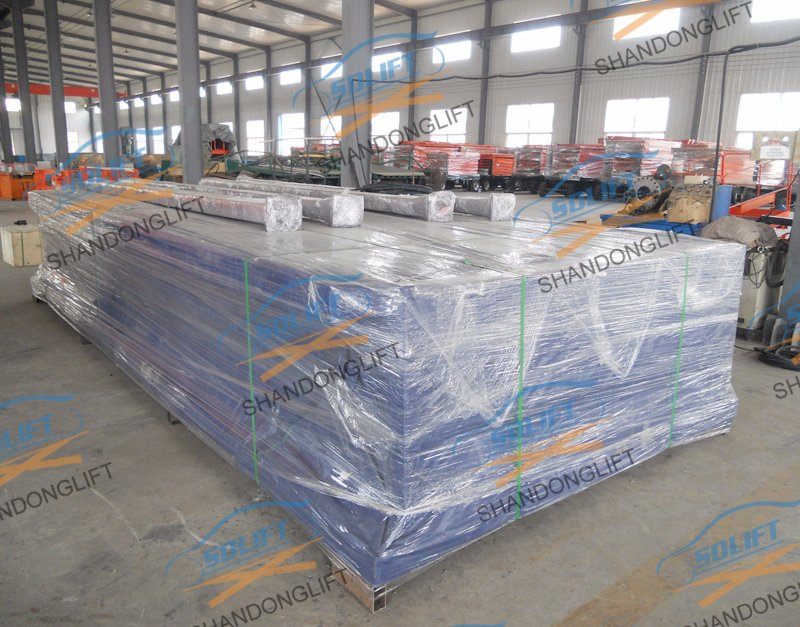

Packing feature:
Protective film + Iron box + iron plate + waterproof cloth + protective film, please relaxed it.
Our designed package box is so easy to loading and unloading for container.

Our service

1) We can design the customerized car lift table as per your requirement.

2) The most suitable car lift table will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) Two year warranty for whole machine without man-made faults.

7) We will send you parts for free if there are any non-human factors faults during warranty time.

8) Supply 24-hours technical assistance by email, telephone or other communication online.

9)We could reply you in 2 hours after received your any questions even on weekend and holiday. Engineers are available to your country if necessary.

Contact us



Prod Model: SJG3-5
Power: 220V, 240V, 380V, 400V or Other
Install: Underground
Type Of Products: Hydraulic Scissor Car Lift
Color: Red, Blue, Orange, Gray or Other
Motor: Customer Required Brand or Chinese Famous Brand
Safety Device: Explosion Proof Lock Valve, Emergency
Lift Height: 5000mm
Lift Capacity: 3000kg
Warranty: 24monthes
Size: According to Clients Requests
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 3T
Certification: CE
Design: Scissor
Double Cylinder Lift Type: Hydraulic
Brand: Sdlift
Shandong Lift Machinery Co., Ltd is one of the leading manufacturer of heavy duty scissor lifts and car parking lifts in China. Being in this field for over 59 years, and exported lift machine more than 17 years till 2017. Our main products are stationary scissor lift, mobile scissor work platform, car park lift, cargo elevator, disable wheelchair lift, aerial aluminum lift ladder, and mobile container loading ramps etc.

Now there are more than 116 staffs in our factory, and 10 production lines in 8 workshops. There is a engineer team focus on research, development and innovation. The biggest load weight of our scissor lift is 100tons. All the products are passed the test held by Check Station of China Special Equipment and Manufacture.

We regard ''reasonable prices, efficient production time and good after-sales service'' as our tenet, and hope to cooperate with more customers for mutual development and benefits. We sincerely welcome each potential customer to visit our factory!
