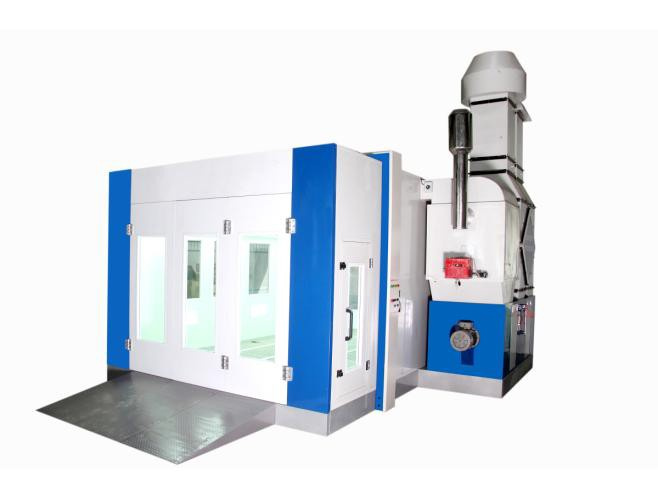

Spray Booth AA-Sb606

Name: Spray Booth AA-Sb606
Brand: ibuyautoparts.com
SKU: 737327865
Availability: InStock
Rating: 4.8 (65 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	AA-SB606
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Outside Size(mm): 7046*5690*4175
Inside Size(mm): 6900*4000*2650
Front Door(mm): 3000(W)*2600(H)
Service Door(mm) 650 * 1800
Total Power: 23.5kw

Wallboard: EPS colorful steel skin board, wall panel: 70mm thick, ceiling panel: 50mm thick rock-wool panel, tongue & groove style compound construction, aluminum-alloy frame, anti-flame and heat- insulation

Purification System: Dual filtering structure, the primary filter can capture granules larger than 10 μ M. Ceiling filter can capture granules bigger than 4μ M. The whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. Air pressure balance gauge, TSP≤ 1.2mg/m3

Heating SystemItaly:

Italy Riello RG3 diesel burner,
160000Kcal/h, 20N damper motor
SUS304 stainless steel heating exchanger, argon arc welding max temp: 80 tempreature, heating time: 4-5min(20-60tempreature ),
Fuel consumption: 4-5kg/vehicle

36 pcs ceiling nozzles with 2 centrifugal fans(1.5kw/set) & two corner dryers for drying water based paint

Lighting System: Ceiling Light: 32pcs 36w Philips lamp; Bottom light: 32pcs 20w Philips lamp, 1100 Lux

Controlling System: PLC digital controlling, soft touching button, spray & baking switch, light switch, emergency stop, breakdown alarm

Environmental System: Multi-layer fiberglass filter, active carbon.

Shanghai AA4C AUTO Maintenance Equipment Co., Ltd is professional auto maintenance equip ment manufacture since 1995. AA4C means Always and All for(4) Customer. Our factory covers an area of more than 20, 000 squares meters and with our up-today manufacturing facilities, high-tech industrial, product developing manufacturing sales and perfect after-service with a total capital of more than ten millions. For many years our company has been awarded as "Enterprise with High Reputation" "Enterprise with High Credit in Quality " and "China National Grade AAA Enterprise, etc. Besides, Wehave passed ISO9001, authenticated by 2000 International Quality Control System.

Tire changers, Wheel balancers, car lifts are the goods produced by ourself, other goods are supplied by our cooperated factories in order to decrease customers' trouble to buy many goods from many factories. We are mainly dealing AA4C products development, product design as well as OEM/ODM manufa-cturing...Our Product has been shipped to worldwide (Europe, East Europe, North & South America, Africa, Australia, Middle East, Asia as well as different province in China).

Facing the future opportunites and challenges, AA4C will be still adhering to "Seeking higher & being practical" trying to enlarge the intercourses and cooperation with other producers in the fieid both at home and aboad; And exert ourselves to pay back our clients with high-quality products and perfectafter-service. Our goal is: Always and All for(4) Customer.
