Automatic Car Washing Machine

SERISE CAR WASH MACHINE

1. Controlled by intelligentized computer with the functions of automatic inspecting, moving, spraying, washing, waxing, drying, cleaning wheel and chassis.

2. Apply for many models of automobiles such as car, microbus and jeep.

3. Water recycling device optional. With the function of environment protecting and water saving.

4. Gantry structure.

Product characters
1. Introduce advanced technical from Italy, European type streamline design, not only good look but also with reliable safety.
2. Italy original brushes, impossible to scratch lacquer, each set could be used for 100, 000 car-times.
3. Main components from world famous manufacturers, high reliability, long using life.
4. Power saving, low operation cost.
5. Dried by four sets fans, could make the car dry rapidly.
Configuration
1. Gantry structure with European type streamline design.

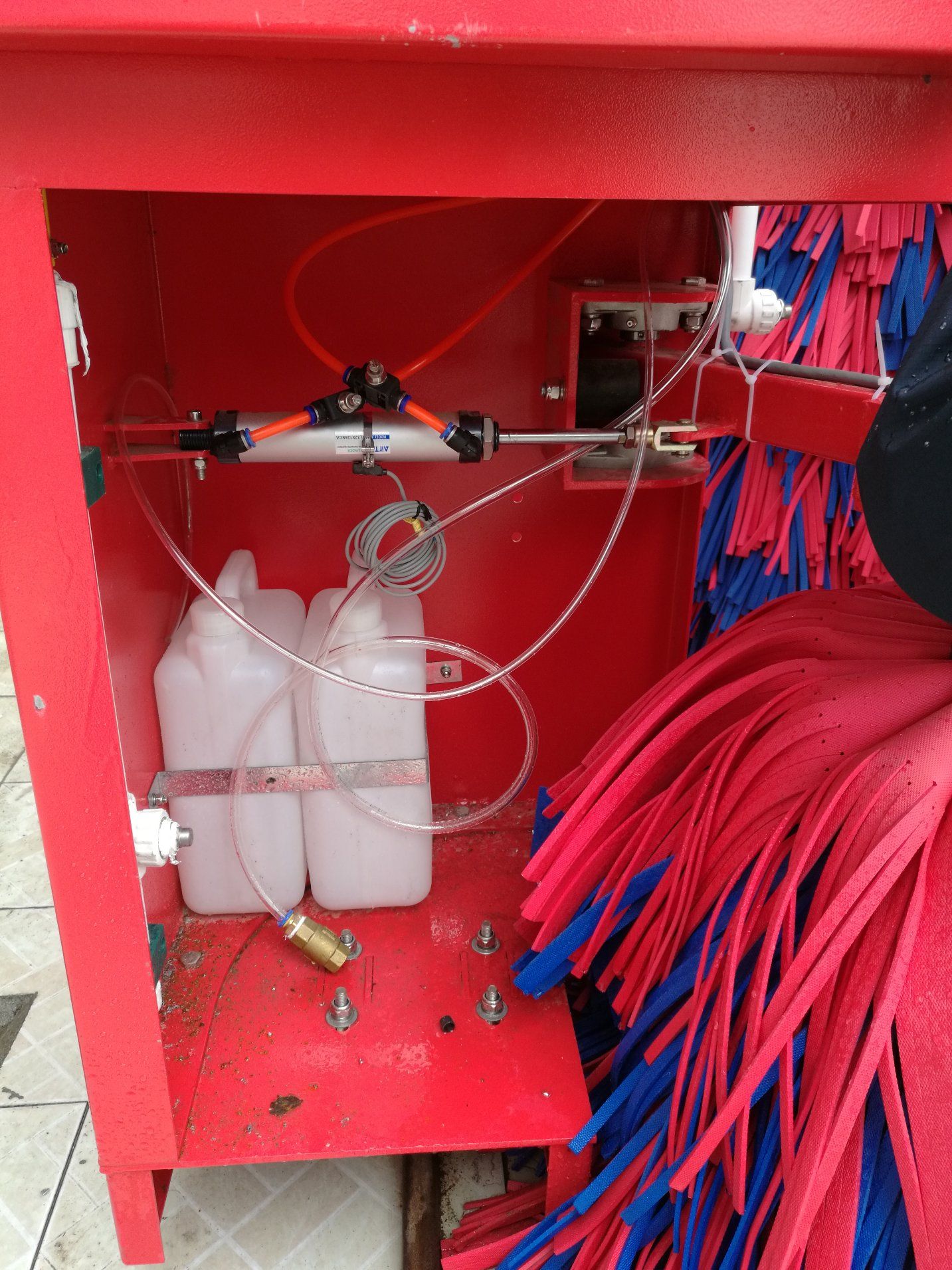

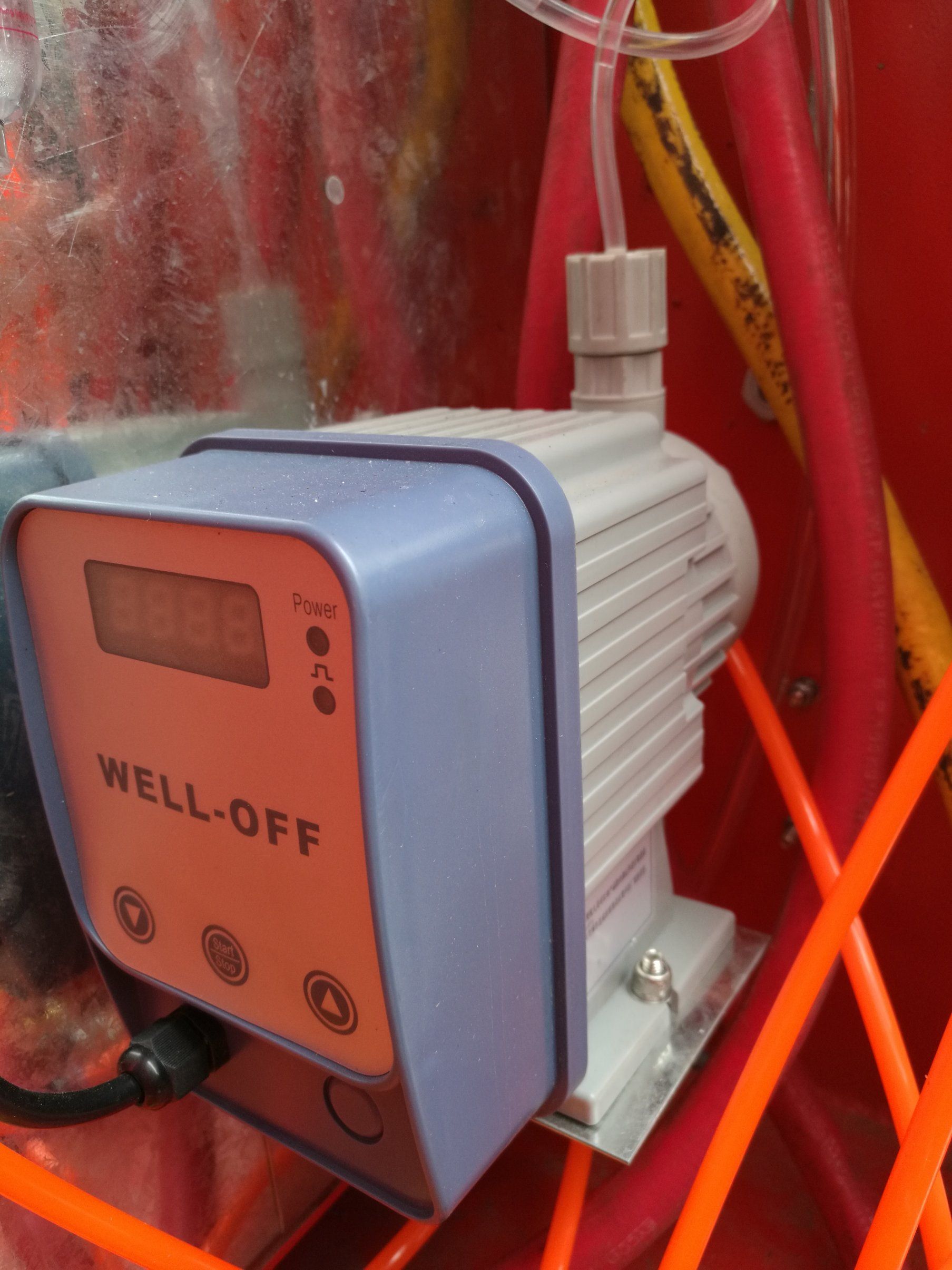

2. Automatic water spraying and waxing system;
3. Automatic speed variable moving system;

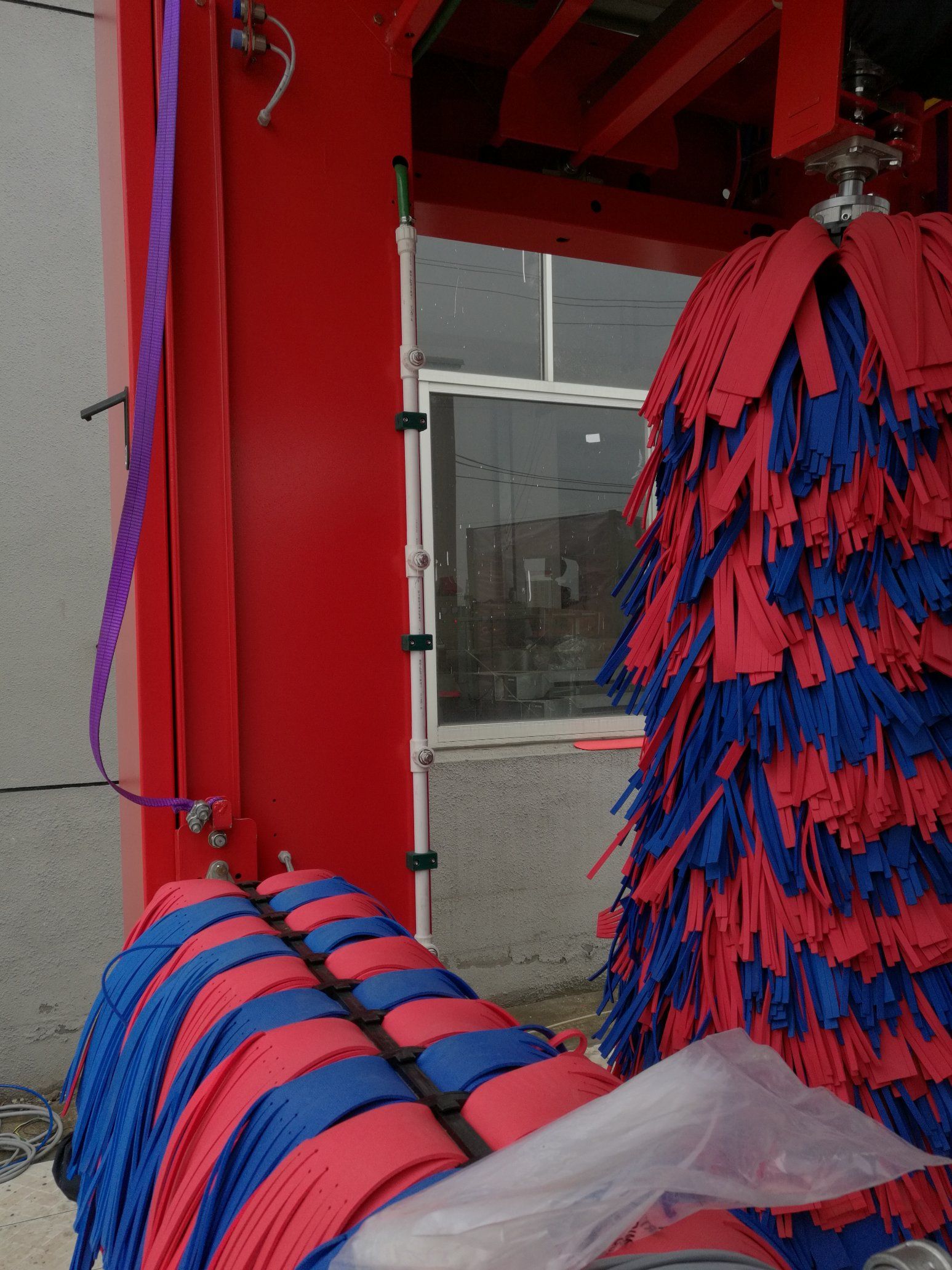

4. Automatic washing system(wider brush);

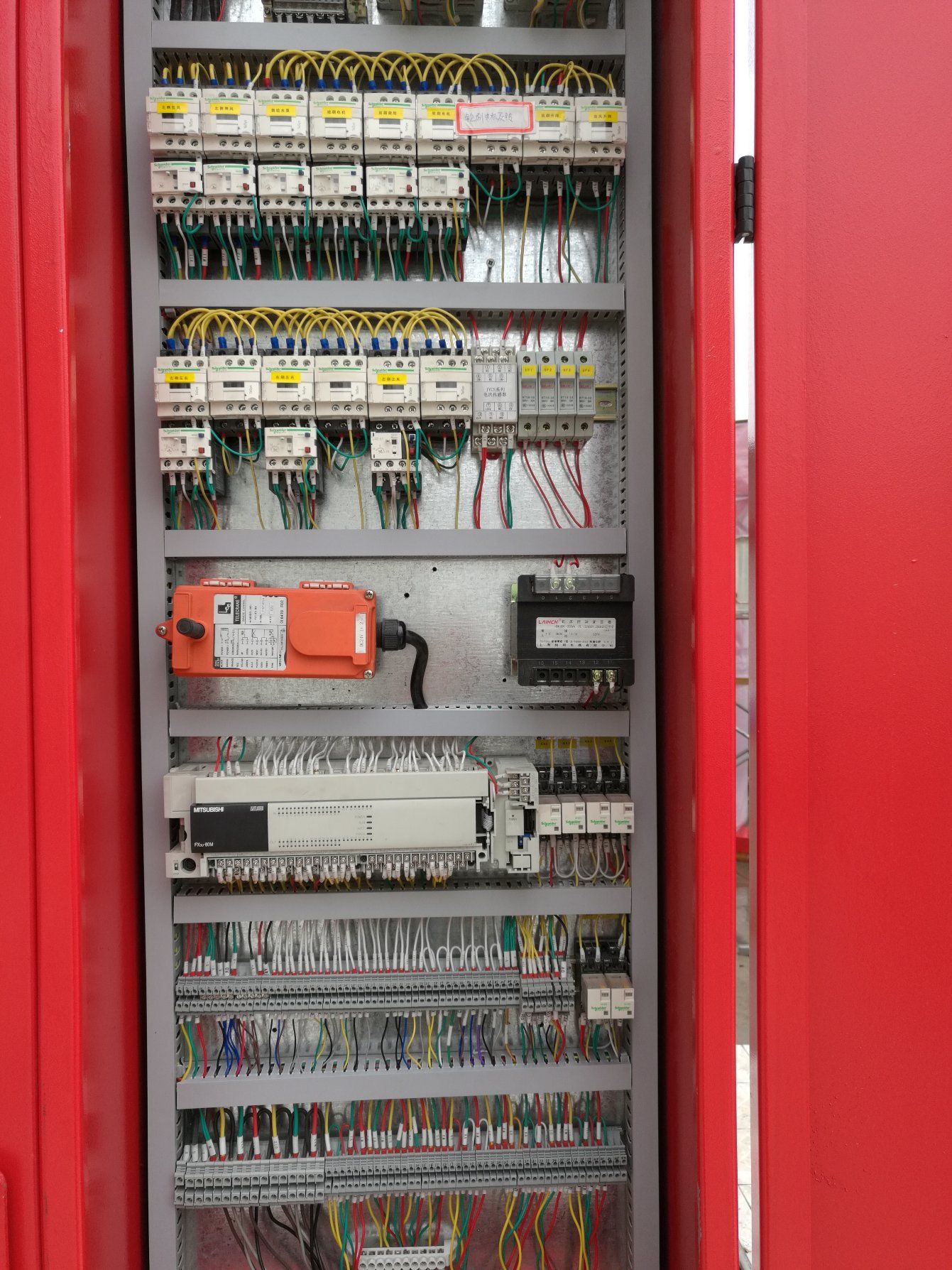

5. Controlled by intelligentized computer

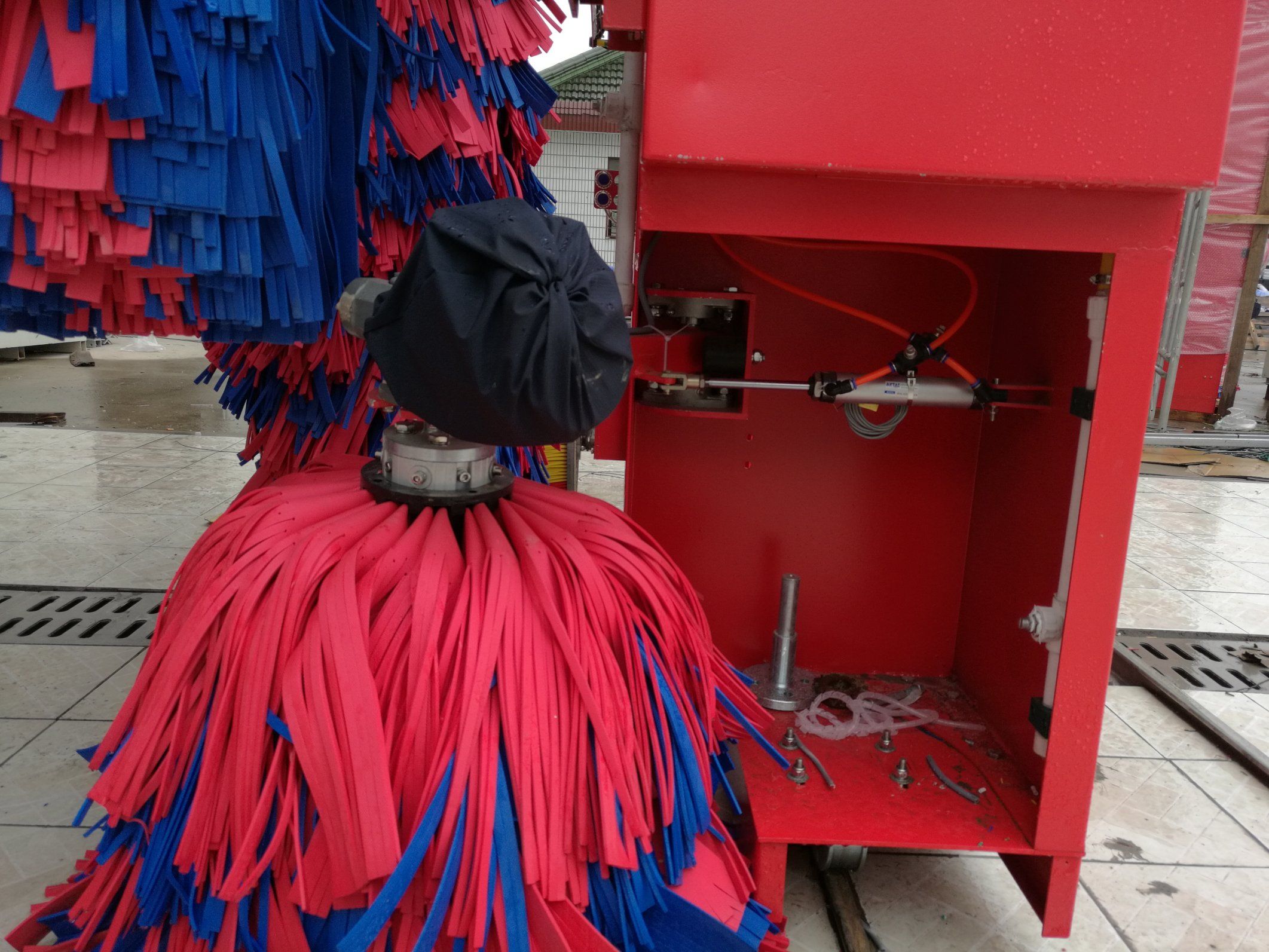

6. Pneumatic transmission system;
7. Automatic dry system;
8. Car position indication system;
9. Operating system;
Technical parameters

Outside sizes (mm)
2510 X 3760 X 3280 mm (L x W x H)

Washable Car sizes (mm)
6500 X 1950 X 2000 mm (L x W x H)

Moving Speed
5-6m/min

Standard length of Track (mm)
10000

Space between Tracks (mm)
3340

Water consumption
100-120L per car

Total power consumption
17.68KW

Working power
380V, 50Hz, 3 phases 4 wires

Max water consumption
80-100L for each car

Weight (Kg)
2800
