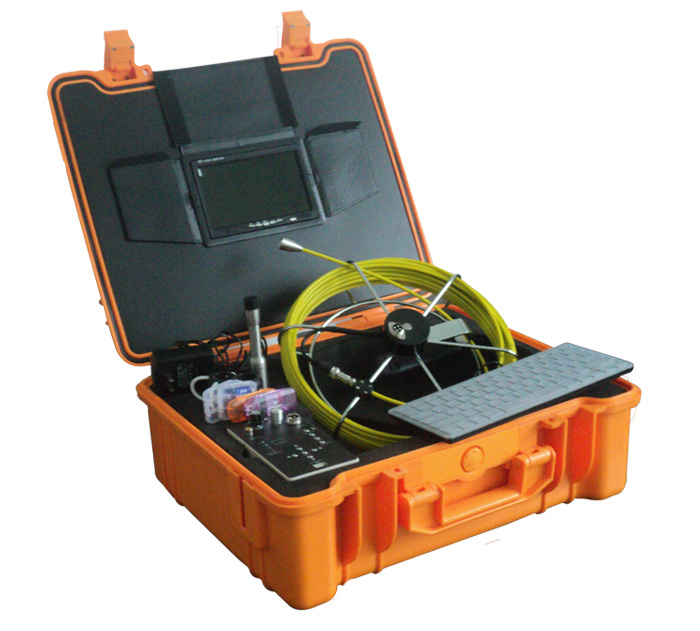

Snake Inspection Camera with Keyboard
Pipe Camera Head
* Camera head size Φ 23 X 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDs
Monitor
* 7 inch TFT LCD monitor
* Power supply DC 12V
DVR Control Box
* DVR power supply 12V
* DVR work current 200mA
* Storage medium SD card jack with 8G SD card
* Li-ion Battery power supply (18650 X 6 PCS)
* Charging time 5 hours, working time 6 hours
* Keyboard output
Cable Reel
* Stainless steel Cable Reel size Φ 320 X 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)
Carrying case
* ABS Carrying case size: 520 X 435 X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Company information
Backed by Cyberia SAS and Shenzhen Institutes of Advanced Technology
Vicam Mechatronics Co. Ltd is located in Shangxue Industrial Park in Shenzhen, south China, specializing in the design, manufacture and assembly of video inspection systems. We have introduced international advanced technology, and designed and produced various video inspection cameras. Most of our products sell well in Europe, the US, Australia, the Middle East, South Africa and South America. In the process of development, we have got very important technical support from Cyberia SAS and Shenzhen Institutes of Advanced Technology.
Can be Used in Complex Applications and Hazardous Areas
Our main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments.
Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and good services to all our customers.
Contact Us Today
For more information about our products and services, visit our Made-in-China Online showroom and then contact me.
| Stainless steel cmos camera head data |
| camera size | Φ23mm×118mm (camera head 23 X 45mm) |
| camera housing material | stainless steel #304L |
| camera window | sapphire glass |
| connecting type | golden pins slip-ring connection |
| sensor | 1/4" color CMOS |
| field of view | 120° |
| resolution | PAL:720H×576V NTSC: 720H×480V; |
| horizontal definition | 700TVL |
| S/N rate | >48dB(AOC on) |
| electronic shutter | 1s_1/10000s |
| sensitivity | 0.1Lux |
| video output | 1.0 Vp-p / 75Ω |
| lighting | 12 high intensity white LED, brightness adjustable |
| waterproof | yes, class IP68 |
| working voltage | DC 12V |
| working current | 51mA Max (LED Max: 100mA) |
| operating temperature | -10ºC~60ºC |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
